Magiglo ACCOLADE - Continuation of Installation - Remote Control Model

Page 33
3.9.6. Continuation of Installation - Remote Control Model
1. Unpack the box containing the Receiver
and the Hand Set.
2. Fit four AA (1.5V) batteries into the
receiver unit and the PP3 (9V) battery
into the transmitter (hand set).
3. Feed the cable from the receiver unit
heat shield to the spade terminals on the
control valve, keeping the cable clear of
the underside of the burner. The cable
connectors must be matched to the
appropriately sized spade connector.

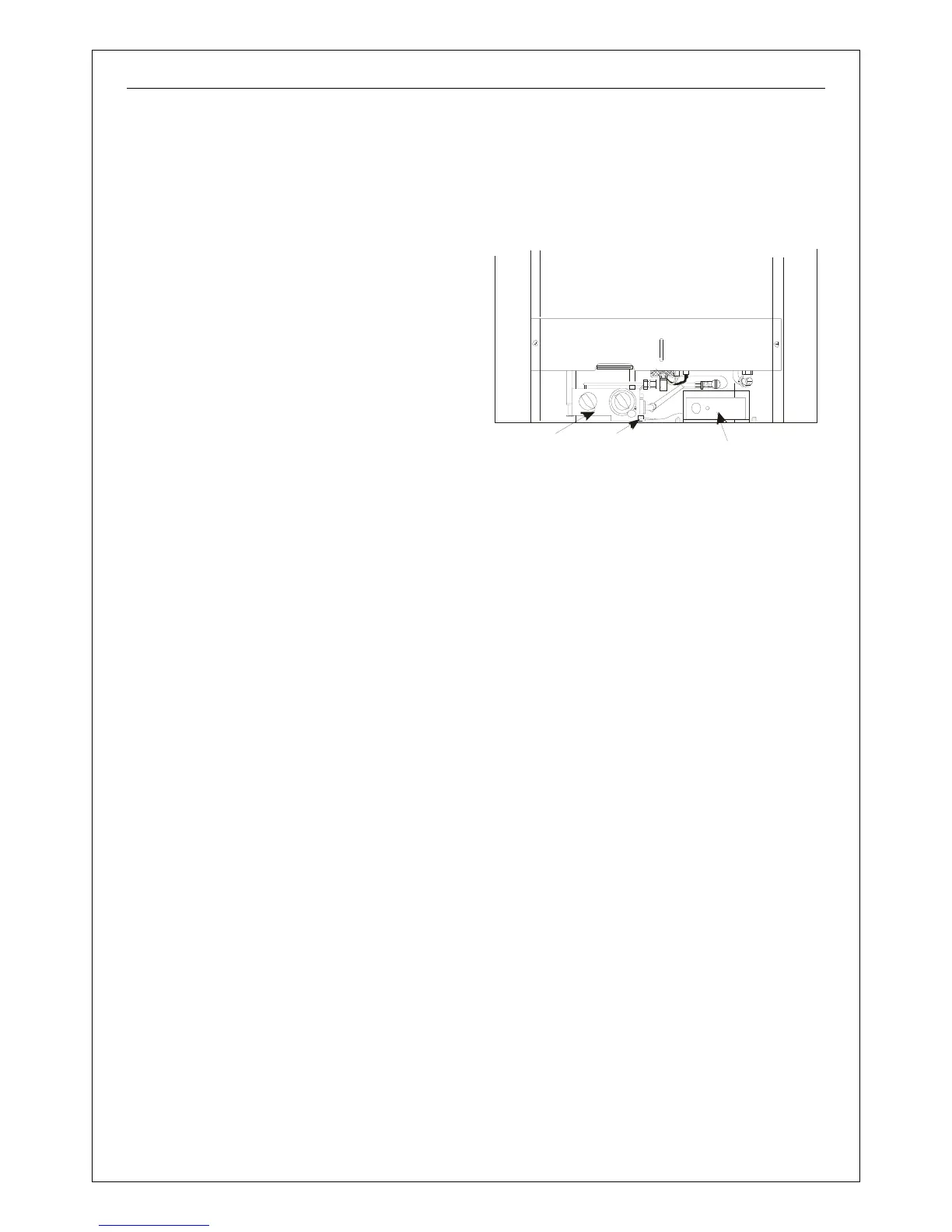

4. Position the receiver under the heat
shield as shown
XFigure 58X.
5. Test the operation of the drive motor
using the hand set as per Users
Instructions (Section
X2.1.2X - XLighting
Procedure (Remote Control)
X on page
X8X).
6. Proceed to Section
X3.9.8X .
Recei verVa l v e
Motor
connections
Figure 58
