3.5. Ventilation
This model does not normally require any additional ventilation in the room that it is fitted in.
However, if spillage is detected during spillage test additional ventilation may be required. In
GB reference should be made to BS 5871 Part 2 and in IE reference should be made to the
current edition of I.S.813 which makes clear the conditions that must be met to demonstrate
that sufficient ventilation is available.
If provided, any purpose provided ventilation must be checked periodically to ensure it is free
from obstructions.
When fitting the fire in Northern Ireland (NI), purpose provided ventilation must be provided in
accordance with the rules in force.
In other EC countries equivalent rules in force must be used.
3.6. Technical Data
Natural Gas Models LPG Gas Models
Nominal maximum heat input 6.0 kW
(g
ross
)
5.7 kW
(g
ross
)
Setting pressure (Cold) 13.5 mbar ±0.2 mbar 36.5 mbar ±1.0 mbar
Minimum heat Input 2.6 kW (gross) 2.6 kW (gross)
Minimum settin
g
pressure
(
Cold
)
3.0 mbar ±0.2 mba
r
6.5 mbar ±0.5 mba
r
Gas G20 (Natural Gas) G31 (LPG)
Injector Size 440 170
Gas inlet connection 8mm 8mm
Control valve BM/MaxitrolS BM/MaxitrolS
Pilot SIT OxyPilot 9039 SIT OxyPilot 9223
Weight 8.9 kg
Efficiency Class II
3.7. Pressure Test Point Location
Va l v e
Inlet Pressure
Tes t Poi nt

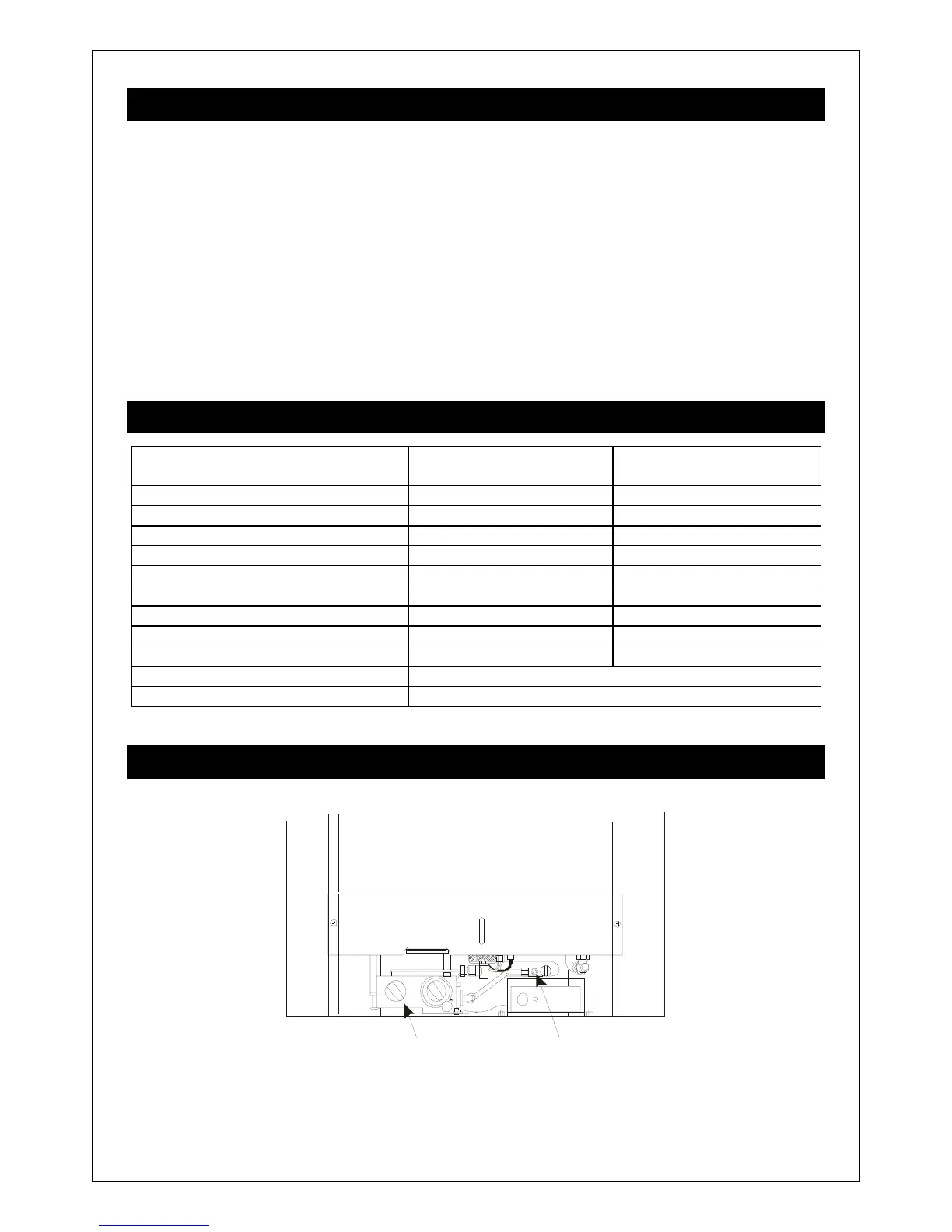

Figure 50 - Pressure Test Point Location
