Magiglo ACCOLADE - Fitting the Flue Restrictor; Preparing the Fireplace Opening

Page 30

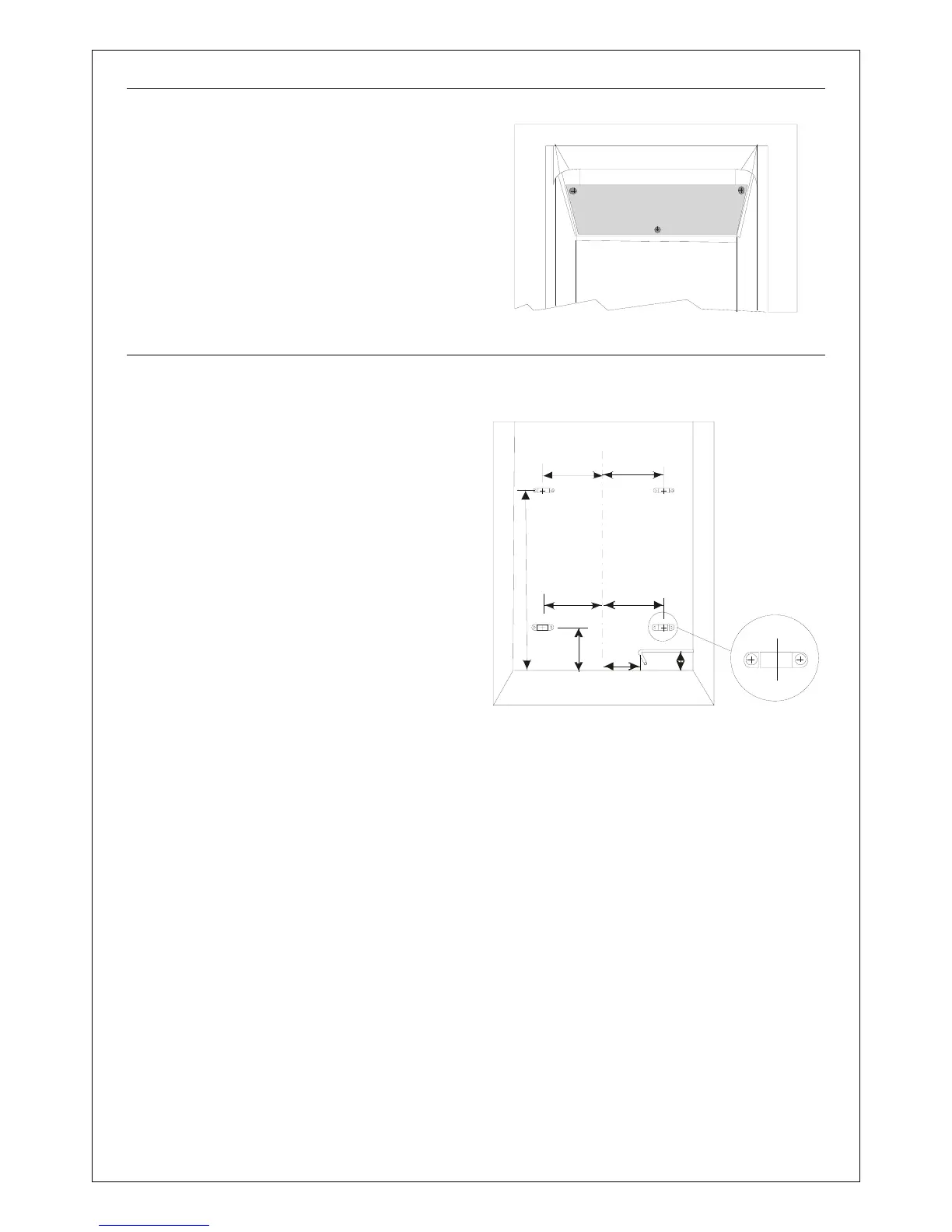

3.9.2. Fitting the Flue Restrictor
1. If fitting the appliance to a masonry
chimney (Class I) fit the restrictor plate
using the three screws supplied (see
XFigure 54X)
2. If the fire shows a tendency to spill
during the spillage test this restrictor
plate may have to be removed. This
can be easily done from the front after
the fire has been installed
Restrictor Plate
Figure 54
3.9.3. Preparing the Fireplace Opening
1. Prepare the fireplace opening in
accordance with section
X3.2X, X3.3X and
X3.4X.
2. Mark out, drill, plug and fit the four
cable guide brackets onto the rear wall
of the fireplace opening as shown in
XFigure 55X. Use 4.5mm masonry bit if
drilling into masonry. Use 3.5mm bit if
fitting the fire into metal flue box.
3. Install any fire surround at this stage, if
required.
4. Install the gas supply within the opening
using rigid or semi-rigid tubing allowing
for rear entry into the fire box (see
XFigure 55X).
5. If installing Optimum Control Model
prepare a suitable route for the cable to
the wall switch.
120 120
120
120
400
125
45
80
Centre
Line
Figure 55
