40 (E)
LT20A / LT30 Series
3. The output data format
Changing according to the initial settings (See P16.).
q Normal condition

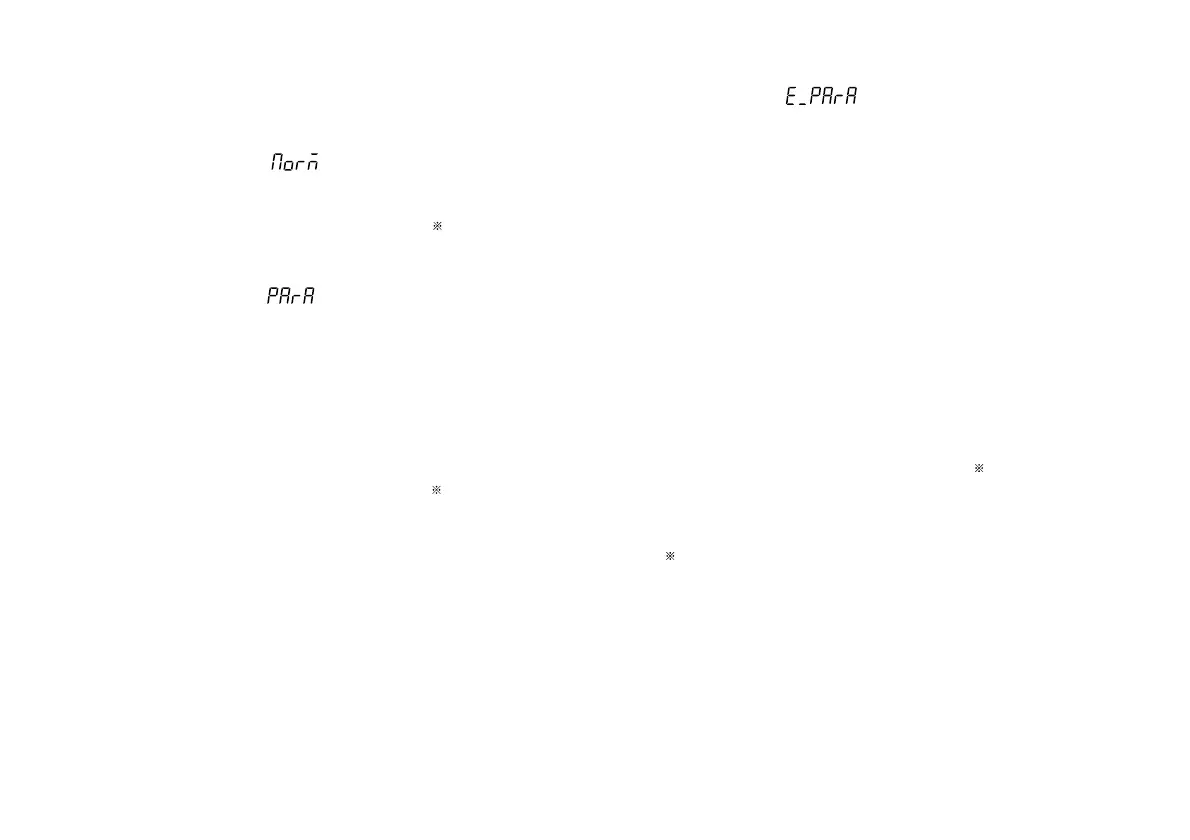

Initial setting :
Normal output (set at time of shipping)
1st byte : Channel name (A or B)
2nd byte : Sign (+ or “–”)
3rd to 9th bytes : Numerical data (ex.12.3456)
Initial setting :
(Outputting with measurement
mode information)
1st byte : Channel name (A or B)
2nd byte : Current mode
( N : Current value,
P : Peak-to-peak value,
I : Minimum value,
A : Maximum value)
3rd byte : Unit (M: mm, I: inch)
4th byte : Sign (+
or “–”)
5th to 11th bytes : Numerical data (ex. 00.0000)
Initial setting :
Outputting with measuring mode information
and comparator Go/No Go result
1st byte : Channel name (A or B)
2nd byte : Current mode
(N: Current value,
P: Peak-to-peak value,
I : Minimum value,
A: Maximum value)
3rd byte : Unit (M: mm, I: inch)
4th byte : Comparator Go/No Go
result
U : Upper limit over
G : Within range
L : Lower limit under
E : When an alarm has
occurred
5th byte : Sign (+
or “–”)
6th to 12th bytes
: Numerical data
(ex.00.0000)
: (+ or space)
