Magnescale LT20A Series User Manual

LT20A / LT30 Series
14 (E)

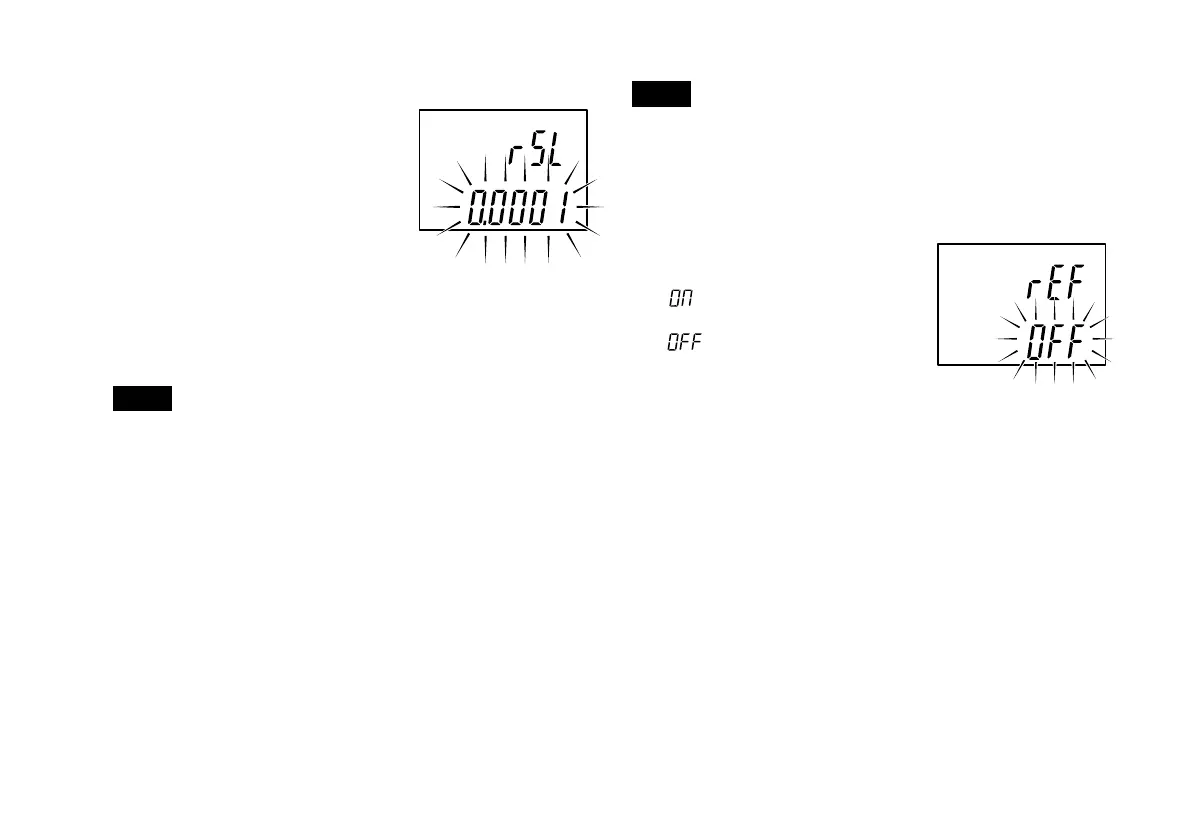

4. Setting the display resolution or direction
(channel A)
0.0001/0.0005/0.001/0.005/0.01/
–0.0001/–0.0005/–0.001/–0.005/
–0.01 mm
• With the measuring unit’s
spindle pushed in:
+: positive direction
–: negative direction
∗ When set to inches, values are chosen from 0.00002,
0.00005, 0.0002, 0.0005, –0.00002, –0.00005, –0.0002,
and –0.0005.
Note
The resolution cannot be set higher than the resolution set
in step 2.
5. Setting the display resolution or direction
(channel B, 2 channel models)
0.0001/0.0005/0.001/0.005/0.01/–0.0001/–0.0005/
–0.001/–0.005/–0.01 mm.
• With the measuring unit’s spindle pushed in:
+: positive direction
–: negative direction
• When displaying A+B:
If you set the direction of A to “–” the data displayed is
the calculation “–A+B”.
The same can be done with B.
factory-set
A
Note
• The resolution cannot be set higher than the resolution
set in step 3.
• When the addition A+B is chosen the direction for B can
be selected, but its resolution will be the same as that of A.
6. Setting the use of the reference point
Set whether to use the reference
point of the measuring unit.
: When the reference
point is used
: When the reference
point is not used
factory-set
