Flex EX2 Receiver Select Instruction Manual
August 2018
Page 27 of 39
4.2 Receiver
4.2.1 Receiver Channel Settings

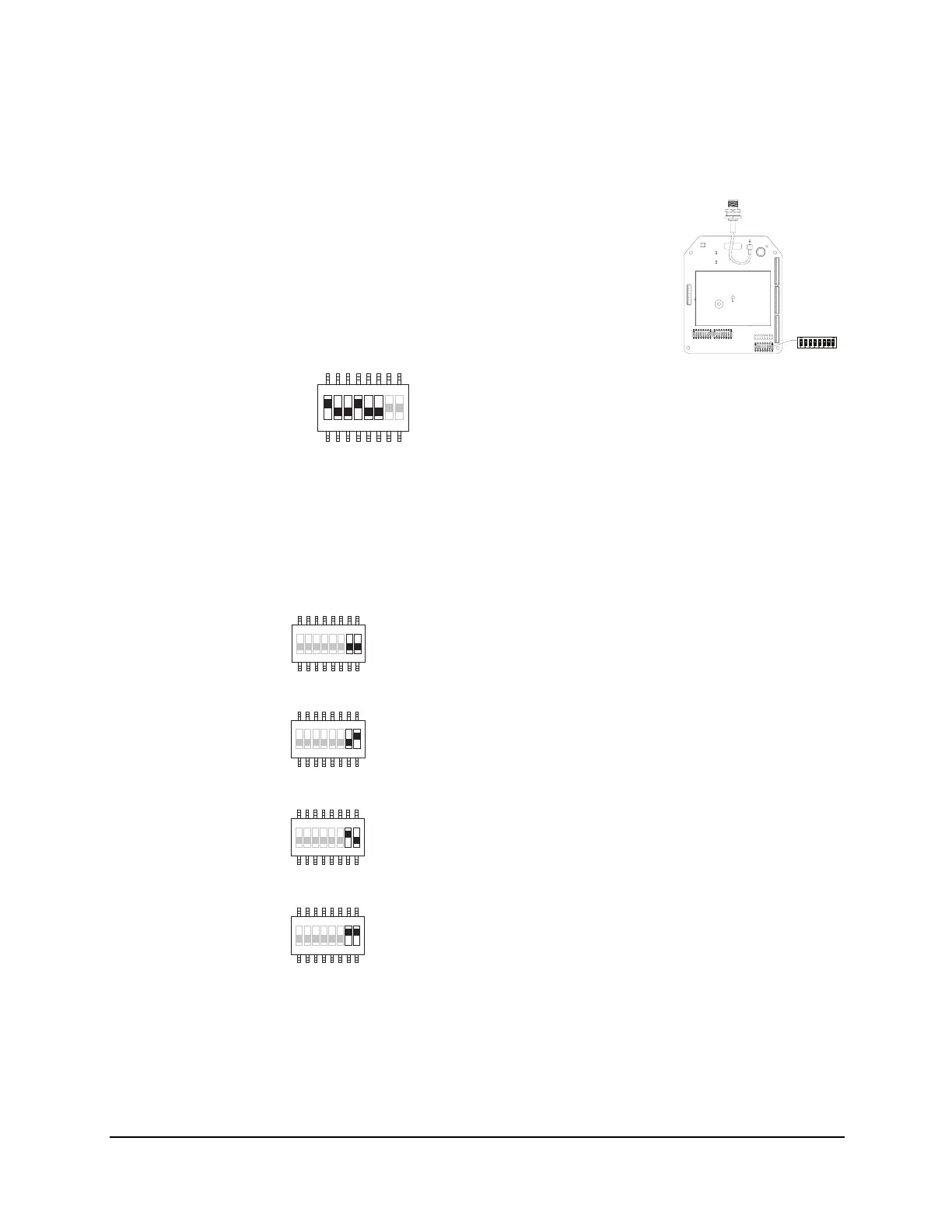

Set the receiver channel by configuring the channel dipswitch
located on the decoder board. Only the first 6 dip positions are
used for channel programming. The system channels table in
Section 4.2.7 illustrates which dipswitch setting corresponds to
which channel. Once the receiver channel is altered, make
sure to change the transmitter channel as well. The channel on
both the transmitter and receiver must be identical in order for
the system to work (see Section 4.1.3 on page 21).
The above dipswitch setting “1 0 0 1 0 0” corresponds to “channel 36” in the system
channels table in Section 4.2.7 on page 30.
4.2.2 Receiver Channel Scanning Function
Receiver channel scanning function is applicable only when a preset channel is
assigned to the system (see Section 4.1.3 on page 21).
(1)
→ “00” manufacturer preset (channel X)*
(2)
→ “01” scans 2 channels (channel X and channel X+1)
(3)
→ “10” scans 3 channels (channel X… channel X+2)
(4)
→ “11” scans 4 channels (channel X… channel X+3)**
* Channel X → channel set on the channel dipswitch.
** Contact Magnetek field service if your application requires
scanning more than 4 channels.
Example: If the first 6 dipswitch positions are set to channel 01 (000001), when set to
2-channel scanning (type 2 above) the receiver will scan only channel 01 and 02.
71 423 56 8
Example:
Top position → “1”
Bottom position → “0”
