Installation

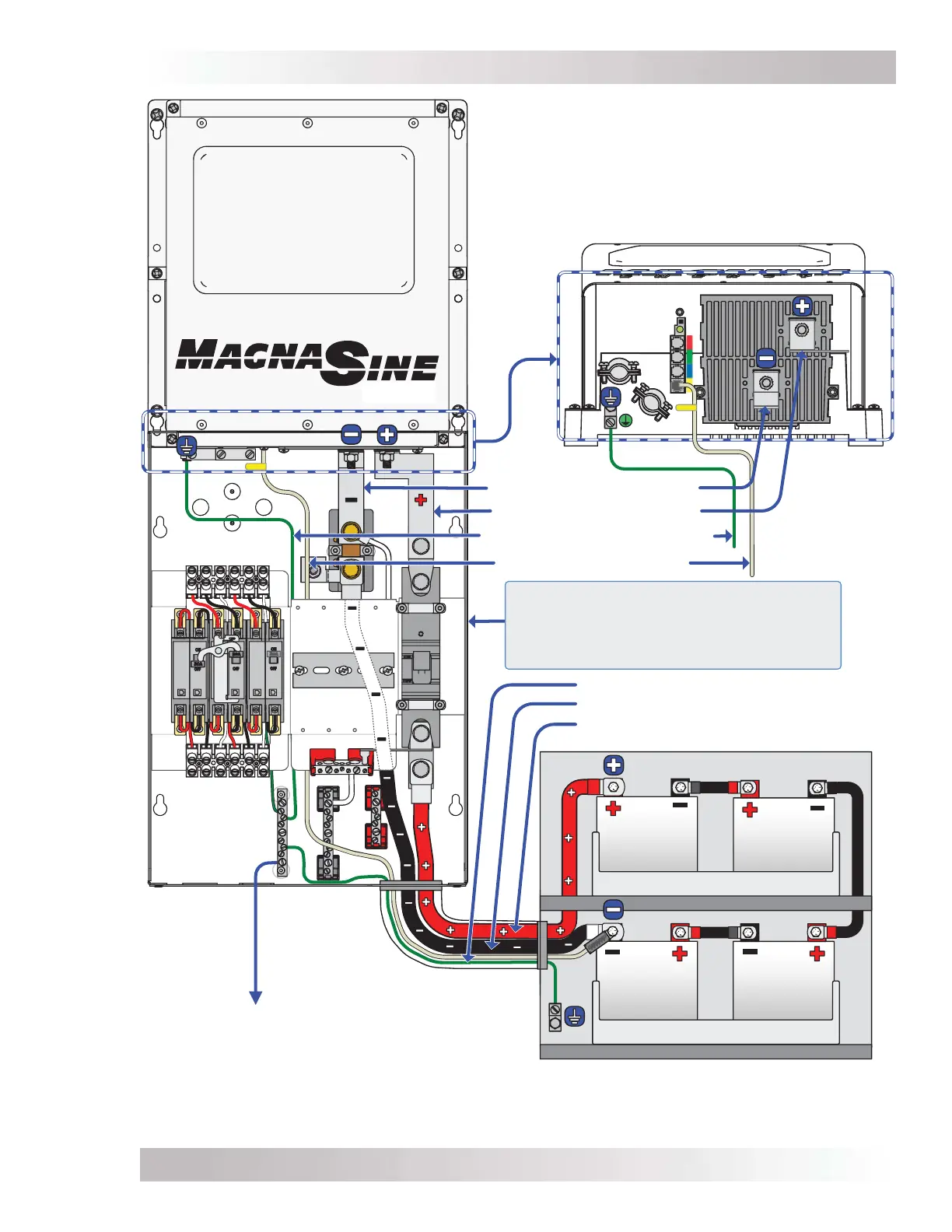

Figure 2-6, DC and Battery Temperature Sensor Wiring
DC System Grounding point
[Electrode Conductor
(i.e., ground busbar)]
MS Series
Inverter/Charger
(front view)
Battery Temp Sensor Cable*
Inverter’s DC Negative Busb ar
Inverter’s DC Positive Busbar
Inverter’s Equipment Ground Wire
BTS
BTS
MMP enclosure – for single inverter installations
(includes DC disconnect breaker, DC shunt for
battery monitor, and inverter DC busbars). If
multiple inverters will be installed, see the MP
enclosures - designed to allow up to four
inverters to be connected together.
Battery Bank
Battery Bank’s Equipment Ground Wire
Battery Bank’s Negative Cable
Battery Bank’s Positive Cable
To Next Page
