Magnum MS2000 - Installation - Bonding and Grounding; 2.6.2 System Bonding Jumper; 2.6.3 Equipment Grounding Conductor

Page 28 © 2016 Sensata Technologies
Installation

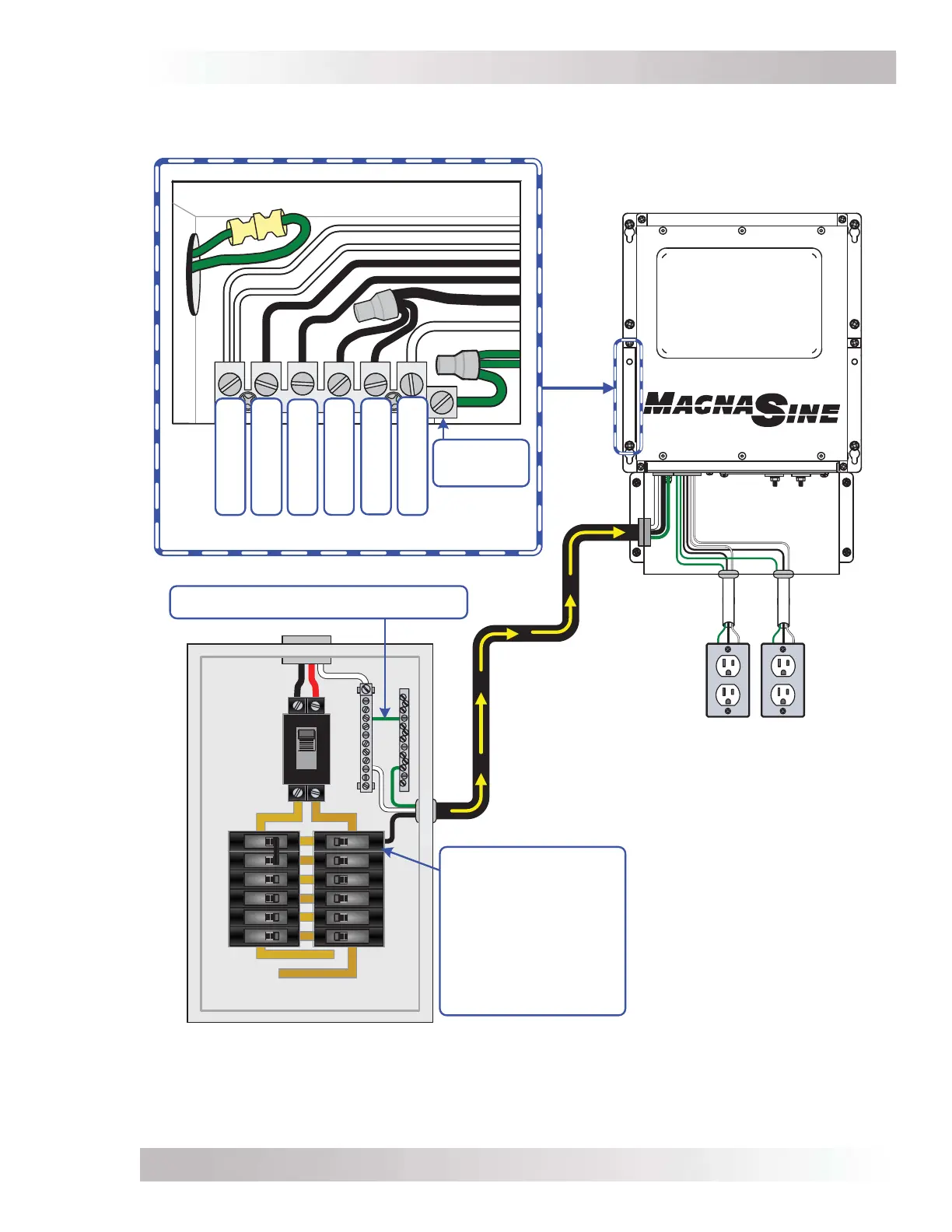

Figure 2-13, AC Wiring for Single In – Dual Out Confi gurations
Main Panel
(Utility/Generator Input)
MS Series Inverters
MS2012-15B/-20B
or MS4048-20B
AC Terminal Block
(AC input and output wiring)
SINGLE IN / DUAL OUT wiring
AC HOT 1 IN
(from main p anel)
AC HOT 1 OUT
AC NEUT IN
(from main panel)
AC NEUT OUT
(x2)
AC HOT 2 OUT
Direct from Inverter
(Inverter Loads)
120
VAC
120
VAC
AC GROUNDS
(to/from
both panels)
ON
OFF
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
60
Maximum breaker size
required to inverter AC input
depends on model used.
MS2012-15B: 45-amp
breaker (single pole);
all other MS models:
60-amp breaker
(single pole). These breaker
sizes allow full charging and
full pass-thru capability for
your inverter model.
In mobile installations: neutral is typically not
connected to ground in main panel.
AC HOT 2 IN
(from main panel)
CAUTION: If non-breaker
units are used, a sub-panel
with overcurrent protection
is required.
