4.2.1.7 Adjust the Cradle

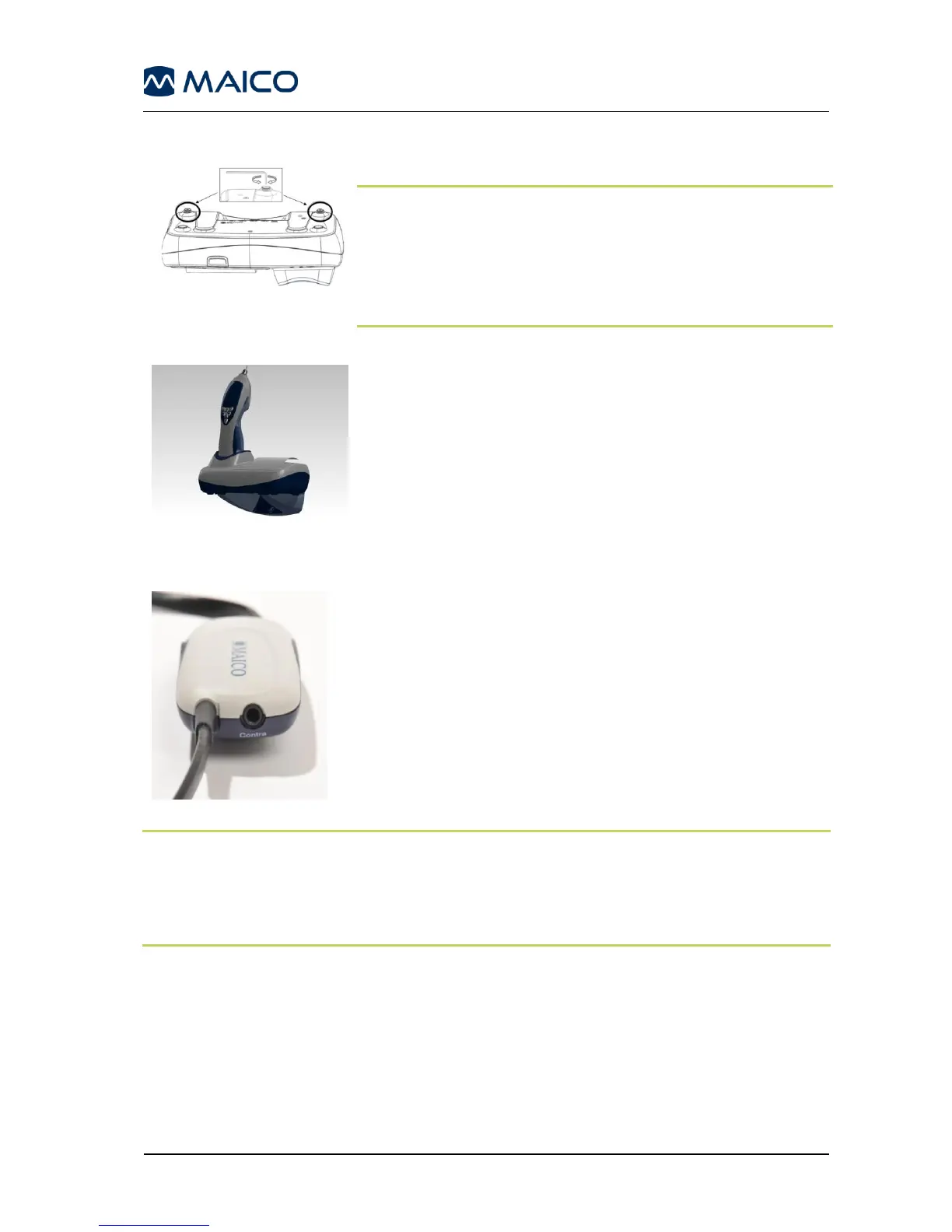

Figure 29

Use the Allen key to adjust the cradle on the Figure 29.

NOTE: An Allen key is enclosed in the packaging of the eartip

box to enable adjustment of the pair of adjustable feet located

on the bottom of the cradle.

Please ensure that the Allen key is only used to adjust the setting

of the adjustable feet on the cradle and that this tool is not used

for any other purpose on the easyTymp unit.

4.2.1.8 Mounting the Cradle on the Wall (optional accessory)

Figure 30

In order to mount the cradle on the wall, an optional wall

mount kit is available (Figure 30).

4.2.1.9 easyTymp Plus and Pro Version: Connecting the Contralateral

Headphone or Insert Phone

Figure 31

To measure Contralateral Reflexes it is necessary to connect

the Contra Probe to the easyTymp as described previously.

Find the jack labeled “Contra” on the Contra Probe. Insert the

Contralateral transducer into this jack (Figure 18).

The Contra Probe must be calibrated to the selected Contralateral

transducer type. This calibration is already completed if the Contra

Probe and transducer are purchased at the same time. Otherwise

the Contra Probe and transducer need to be sent to an authorized

service center to perform the calibration.

NOTE: Three different Contra phones can be purchased for use with the easyTymp. The

Contra phones need to be calibrated to the Contra Probe before use. If a new Contra

phone should be used a recalibration of the Contra Probe is necessary. We strongly

advise against using an uncalibrated Contra Phone! Uncalibrated devices may lead to

faulty measurements and possibly damage the patient’s hearing.

4.2.2 Test cavities

The easyTymp comes with a separate test cavity which can be used to quickly check the

probe calibration validity. The test cavity includes 0.2 ml, 0.5 ml, 2.0 ml and 5.0 ml cylinders.

We strongly recommend calibrating each probe at least once a year. If a probe is handled

roughly (e.g. has fallen onto a hard surface) it might need to be calibrated again.

Calibration values of the probe are stored in the probe itself. Therefore probes can be

exchanged at all times.
