Operation Manual

touchTymp MI 26

and

MI 36

Version

8511780 Rev. 4

30/06/2021

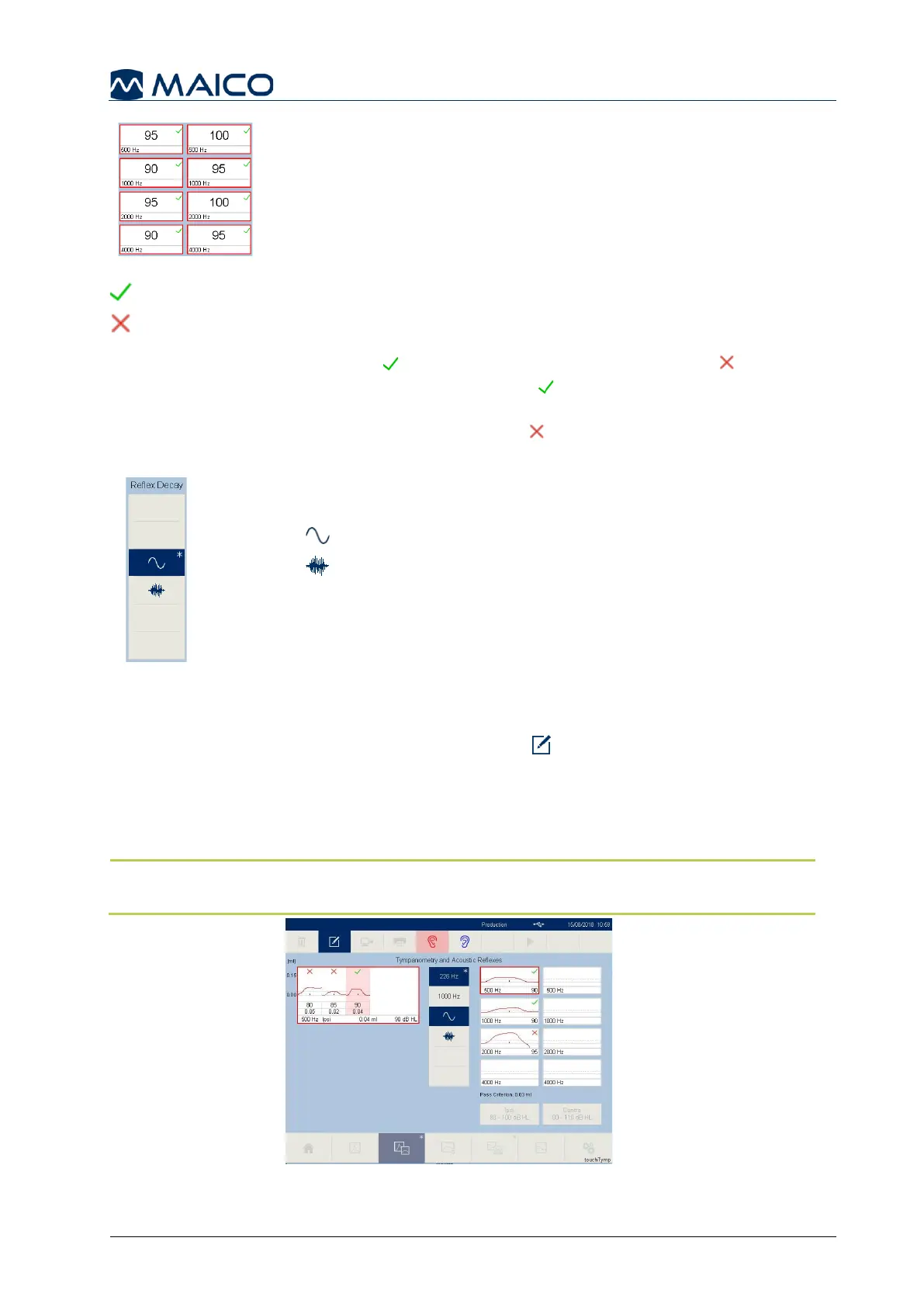

Figure 49

Table: The measured intensity level in dB HL is displayed

simultaneously to the ongoing test. Underneath each diagram

the frequency is displayed (Figure 49).

At the conclusion of the test, the result symbol appears at the top right corner of

the box either in the graphical view as in the table view. This is displayed for the

Acoustic Reflex measurement that meets the criteria as defined in the setup

menu. A green checkmark indicates a present reflex. A red cross indicates

No Response. To be considered as a Pass the maximum amplitude of the

reflex shape must reach a defined value (sensitivity) for a defined time.

Otherwise it is considered as No Response .

Noise stimuli (MI 36 Version Only)

Figure 50

The MI 36 version includes pure tone and noise stimuli for

Acoustic Reflex testing.

: Pure tone (500 Hz, 1000 Hz, 2000 Hz, 4000 Hz)

: Noise (BB – Broadband, HP – High Pass, LP – Low Pass)

Select the stimulus type to set or confirm test stimuli prior to

starting test. When the button is blue, this notes there is an

active stimulus to be tested. When both buttons are blue at

least one pure tone and one noise stimulus will be presented

during the test.

Edit Acoustic Reflex

Acoustic reflex results can be reviewed by the Edit button within the tool bar. When

this button is selected, the device is in edit mode where results can be reviewed or

modified prior to printing or software transfer (Figure 51). The edit mode is only

available when the display Presentation mode is set to Graph in the Settings (see

section 5.6.9).

NOTE: Edit button is only available for selection when a result has been stored on

the screen.

Figure 51
