Makita EM2600L Service Manual

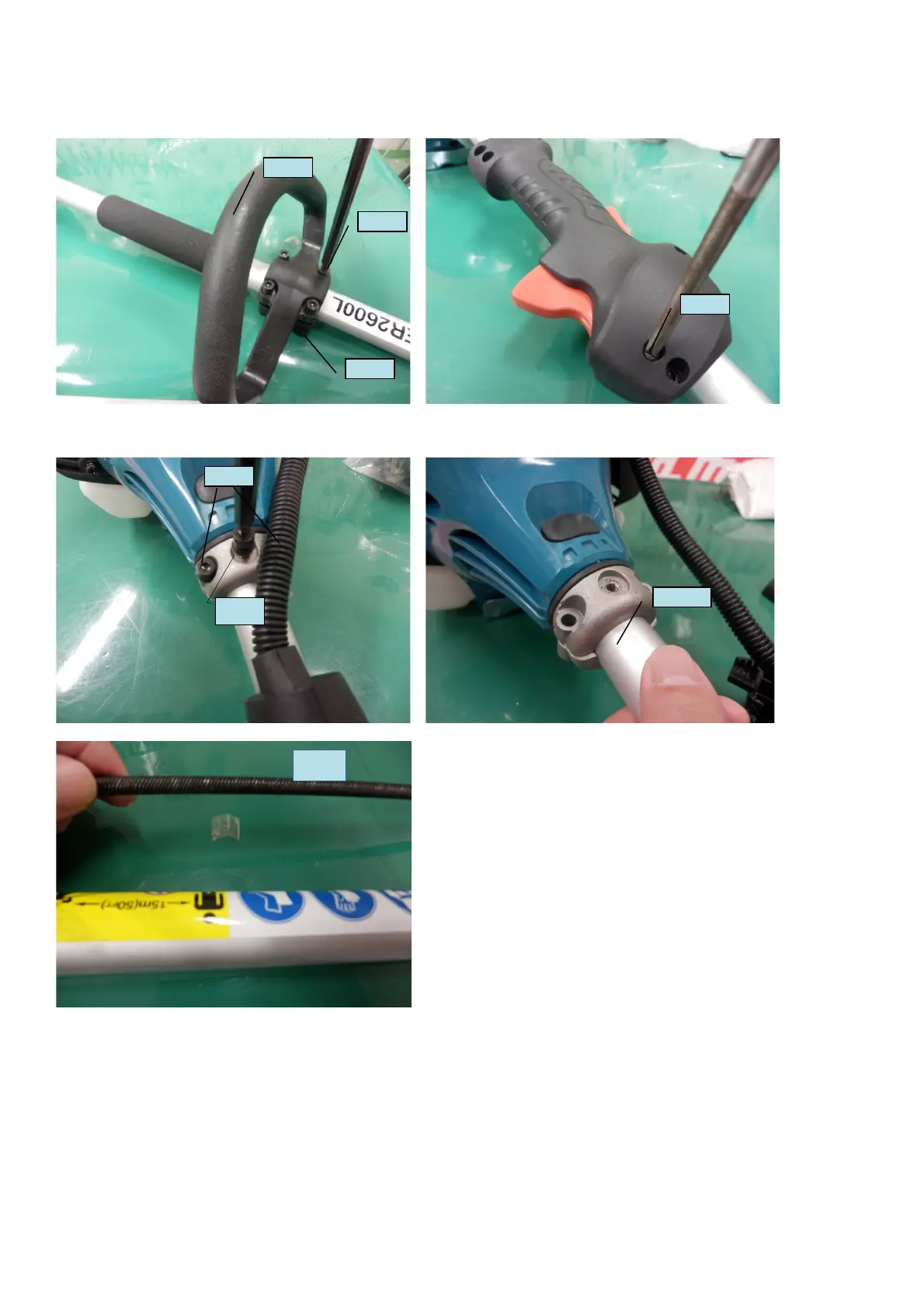

Disassembly of handle and shaft part (ER2600L)
Unscrew 4 HEX. SOCKET HEAD BOLTS M5X30 (108) to take out the U shaped HANDLE HOLDER 3(109). Make sure not to
lose 4 NUTS M5 (111) behind HEX. SOCKET HEAD BOLT M5X30(108). Unscrew 4 TAPPING SCREWS PT4X18 (105).
Unscrew 2 SOCKET HEAD BOLTS M5X20(40) and a SOCKET HEAD BOLT M5X12(SW)(41).Therefore, you are able to take
the pipe out from the engine itself.
Take out the FLEXIBLE SHAFT(107) from the pipe.
108
109
40
41
107
105
111
Pipe
