Disassembly & Assembly of Tool

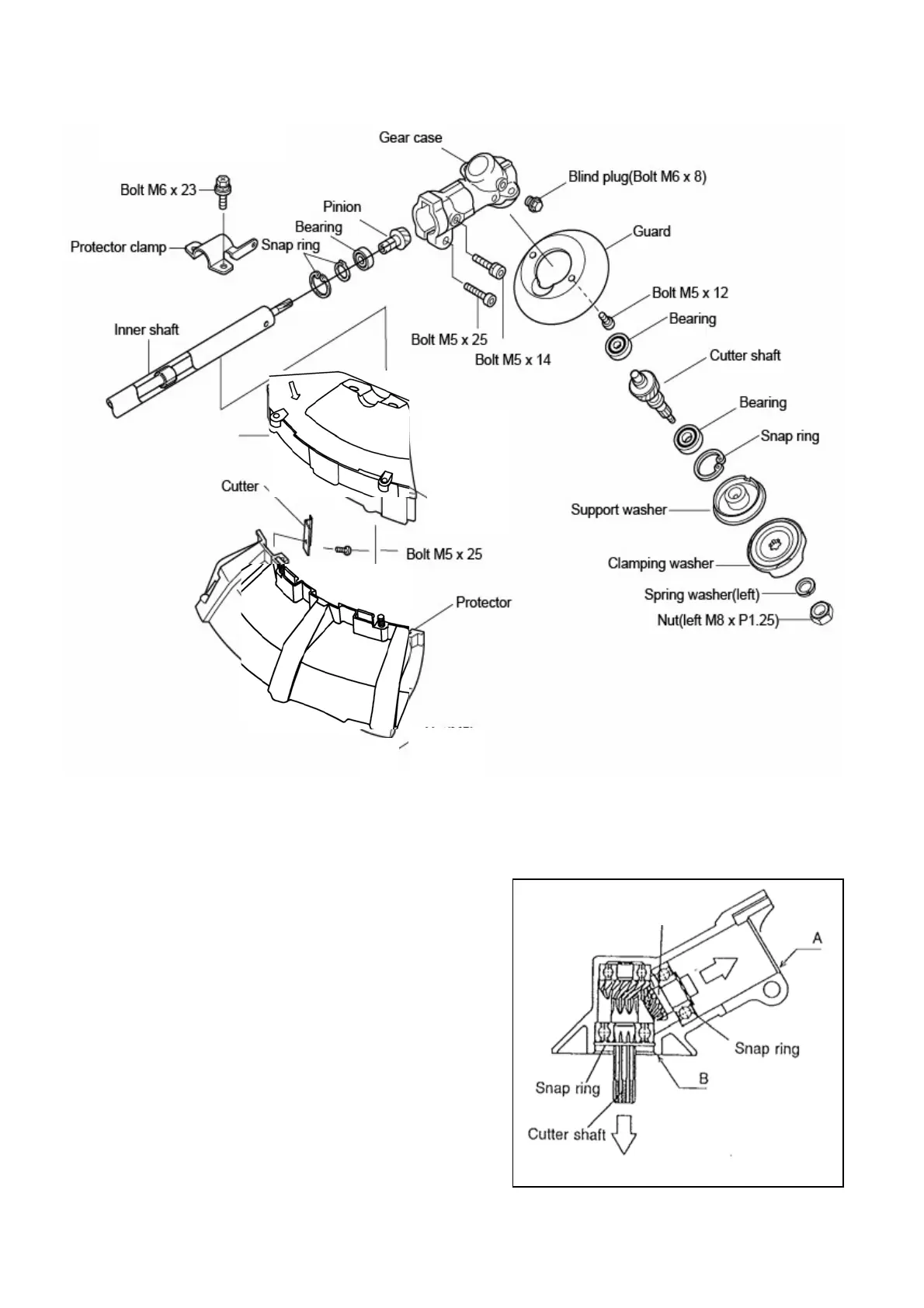

Disassembly Procedure for EM2600U and EM2600L
1.Remove clamp bolt. Take off inner snap ring.
2.Tap surface A with plastic hammer to remove
gear.
3.Take off inner snap ring.
4.Tap surface B with plastic hammer to remove cutter
shaft.
(Assembly Procedure)
Perform in reverse order of disassembly procedure.
CAUTION:
1. Apply grease as required.
2. After assembly, turn cutter shaft to check operation and sound.
