Piston
When placing the piston in the crankshaft assy, the
triangular mark( ∆) on top of the piston should be on the
crankshaft key slot side.
Piston Ring
When installing the piston ring on the piston, align the knock
pin on the piston with the split on the piston ring. Unless they
are lined up, the cylinder cannot be assembled.

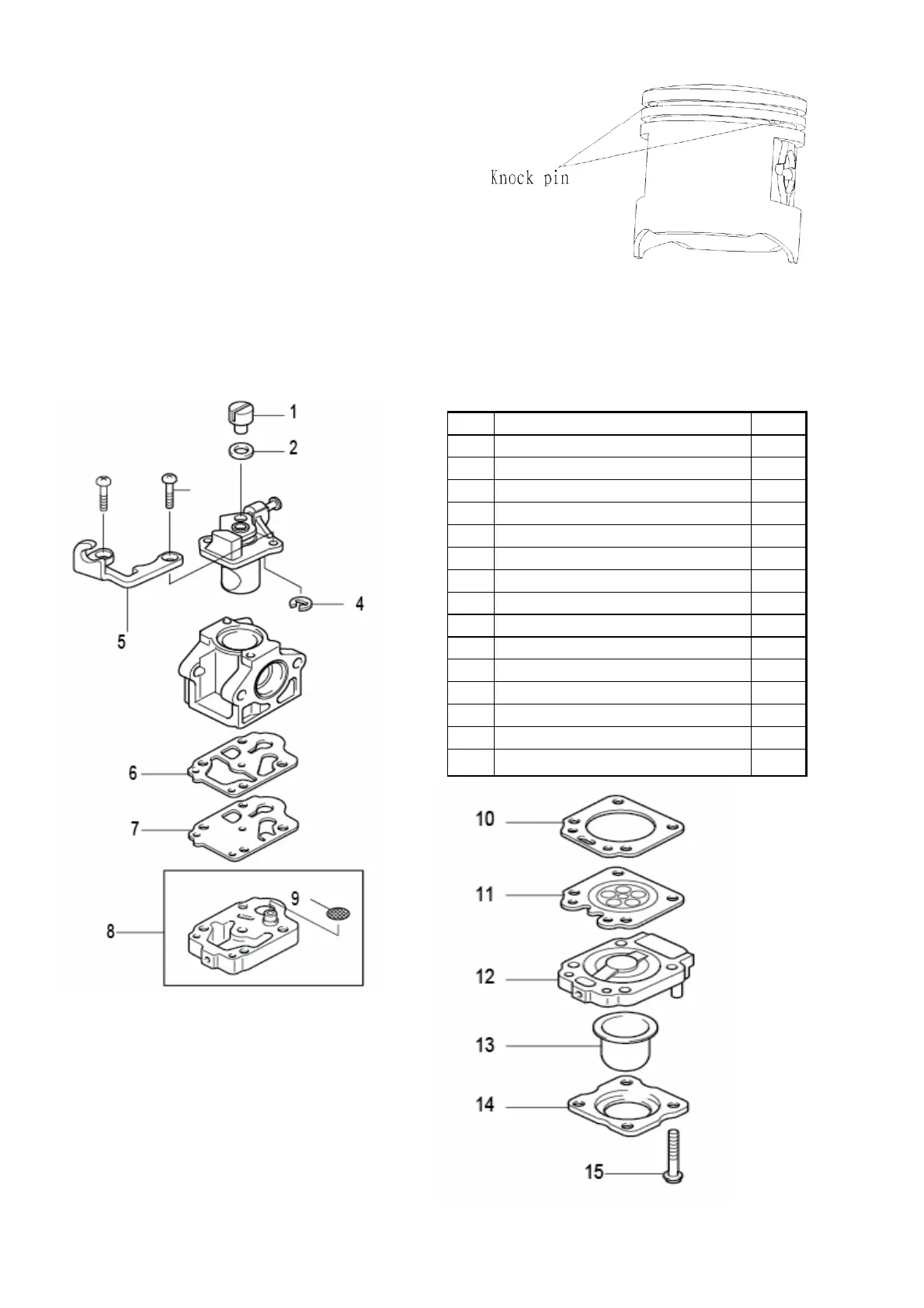

Disassembly & Assembly of Carburetor
Maintenance
NO Part Name Q'ty
1 Swivel 1
2 Washer 1
4 Stopring E3 1
6 Pump gasket 1
7 Pump diaphragm 1
8 Pump body assembly 1
9 Inlet screen 1
10 Metering gasket diaphragm 1
11 Metering diaphragm 1
13 Primer pump 1
14 Primer pump cover 1
15 Tapping screw 3x24 4
To Next Page
