Mount the tool on the offset base
1
2

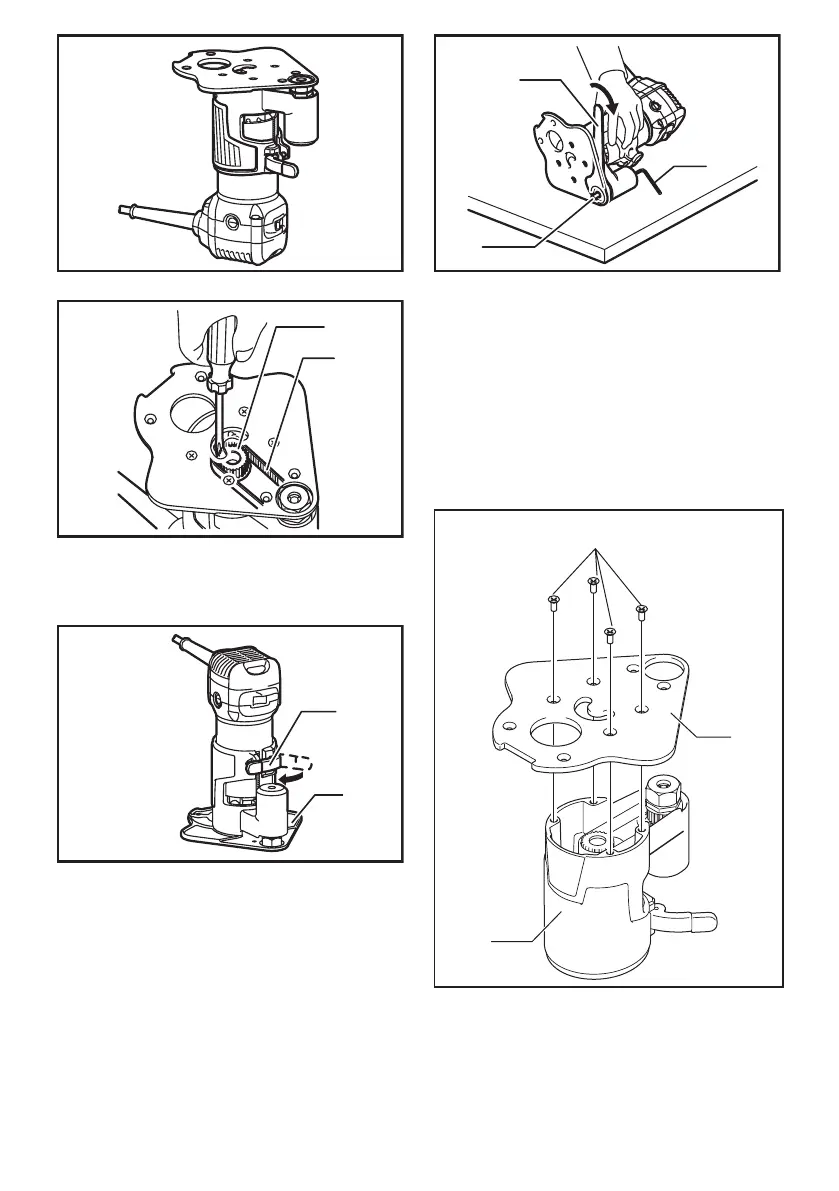

► 1. Pulley 2. Belt
Put an end of the belt over the pulley using a screw-
driver and make sure that its entire belt width ts over
the pulley completely.
1
2
► 1. Locking lever 2. Offset base
Secure it with a locking lever on the offset base.
1
2
3
► 1. Wrench 2. Hex wrench 3. Bit
To install the bit, fall the tool with the offset base on its
side. Insert the hex wrench into the hole in the offset
base.
With the hex wrench held in that position, insert the bit
into the collet cone on the shaft of the offset base from
the opposite side and tighten the collet nut rmly with
a wrench.
To remove the bit at replacement, follow the installation
procedure in reverse.
(2) Offset base (optional accessory) can also be
used with a trimmer base and a grip attach-
ment (optional accessory) for more stability.
1
2
3
► 1. Screws 2. Offset base plate 3. Upper section of
the offset base
Loosen the screws and remove the upper section from
the offset base. Put aside the upper section of the offset
base.
