7 ENGLISH
Distance (X) = (outside diameter of the templet guide -
router bit diameter) / 2

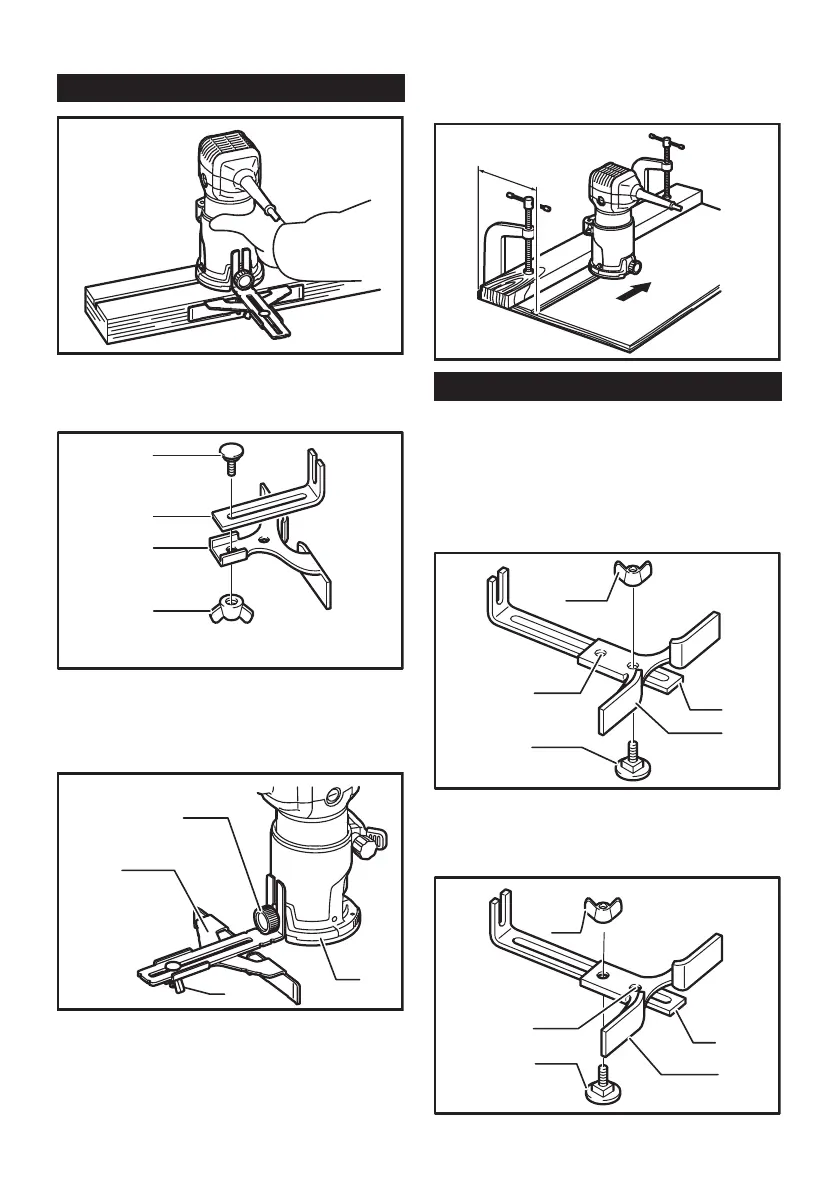

Straight guide (optional accessory)
The straight guide is effectively used for straight cuts
when chamfering or grooving.
Attach the guide plate to the straight guide with the bolt
and the wing nut.
1
2
3
4
► 1. Bolt 2. Guide plate 3. Straight guide 4. Wing nut
Attach the straight guide with the clamp screw (A).
Loosen the wing nut on the straight guide and adjust the
distance between the bit and the straight guide. At the
desired distance, tighten the wing nut securely.
1
2
3
4
► 1. Clamp screw (A) 2. Straight guide 3. Wing nut
4. Base
When cutting, move the tool with the straight guide ush
with the side of the workpiece.
If the distance (A) between the side of the workpiece and the cutting
position is too wide for the straight guide, or if the side of the work-
piece is not straight, the straight guide cannot be used. In this case,
rmly clamp a straight board to the workpiece and use it as a guide
against the trimmer base. Feed the tool in the direction of the arrow.
A
Circular work
Circular work may be accomplished if you assemble the
straight guide and guide plate as shown in the gures.
Min. and max. radius of circles to be cut (distance between
the center of circle and the center of bit) are as follows:
Min.: 70 mm (2-3/4")
Max.: 221 mm (8-11/16")
For cutting circles between 70 mm (2-3/4") and 121 mm
(4-3/4") in radius.
1
2
3
4
5
► 1. Wing nut 2. Guide plate 3. Straight guide
4. Center hole 5. Bolt
For cutting circles between 121 mm (4-3/4") and 221
mm (8-11/16") in radius.
1
2
3
4
5
► 1. Wing nut 2. Guide plate 3. Straight guide 4. Center hole 5. Bolt

Makita RT0701C Specifications

General

Variable Speed Control Dial	Yes
Collet Capacity	1/4"
Base Type	Fixed
Power Source	Corded
Horsepower	1.25 HP
Variable Speed	10, 000 - 30, 000 RPM
Soft Start	Yes
Voltage	120V
Net Weight	3.9 lbs
Weight	3.9 lbs
Amperage	6.5 A
Power	1.25 HP
Tool Length	8-3/4"
