PERIODIC MAINTENANCE AND MINOR REPAIR
ENGLISH
V
S
C
G
F
E

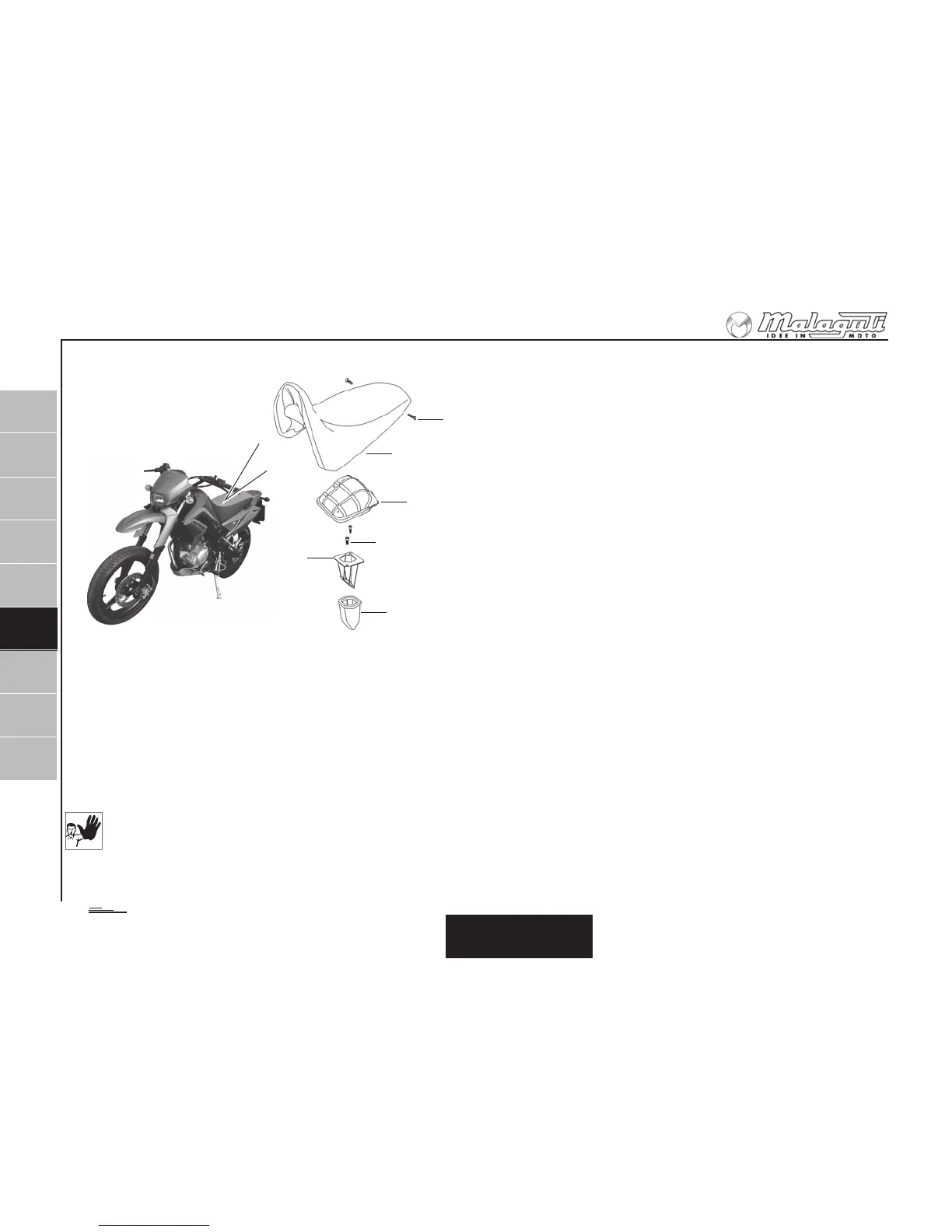

Removing the air filter
• Remove the seat, S, by slackening the two screws, V.
• Remove the intake cowling C by pulling its sides apart.
• Remove the 2 screws E of the filter cartridge F and pull the latter
out.
• Remove the sponge G from the filter frame.
The air filter element must be cleaned at the intervals specified.
Clean the air filter more frequently if you are riding in unusually
wet or dusty areas.
Make sure the air filter element is properly seated in
the air filter case.
The engine should never be operated without the air
filter element, otherwise the piston and/or cylinder may
become excessively worn.
Valve adjustments may change over time, as the vehicle is used,
thus causing an improper flow of air / fuel or engine malfunction-
ing.
For this reason, valves must be periodically adjusted (see the
PERIODIC MAINTENANCE AND LUBRICATION table on page 30)
by a MALAGUTI dealer possessing the necessary technical skills
and experience to perform this job.
The carburettor is an important part of the engine and requires
very accurate adjustments. Therefore, most carburettor adjust-
ments should be left to a MALAGUTI Dealer, who has the
necessary professional knowledge and experience.
The carburettor has been set and extensively tested at the
MALAGUTI factory. Changing these settings may result in poor
performance or damage to the engine.
AIR FILTER ADJUSTING THE VALVES
ADJUSTING THE CARBURETTOR
