PERIODIC MAINTENANCE AND MINOR REPAIR
ENGLISH
G
C
D
B
A
3-5mm
• Start the engine and warm it up for several minutes at about
1000-2000 RPM, while occasionally revving it to 4000 to 5000
RPM. The engine is warm when it quickly responds to the throt-
tle.
• To adjust the engine idling speed, turn the throttle stop screw,
G. Turn the screw clockwise to increase idling speed or coun-
ter-clockwise to decrease it.
Standard engine idling speed:
1300- 1500 RPM.
If the specified idling speed cannot be obtained as de-
scribed above, have a MALAGUTI Dealer make the ad-
justment.
The engine idling speed must be correctly adjusted be-
fore checking and adjusting the throttle cable free play.
Adjust the throttle cable by turning the adjusting nut until the ap-
propriate free play is obtained.
Play: 3-5 mm

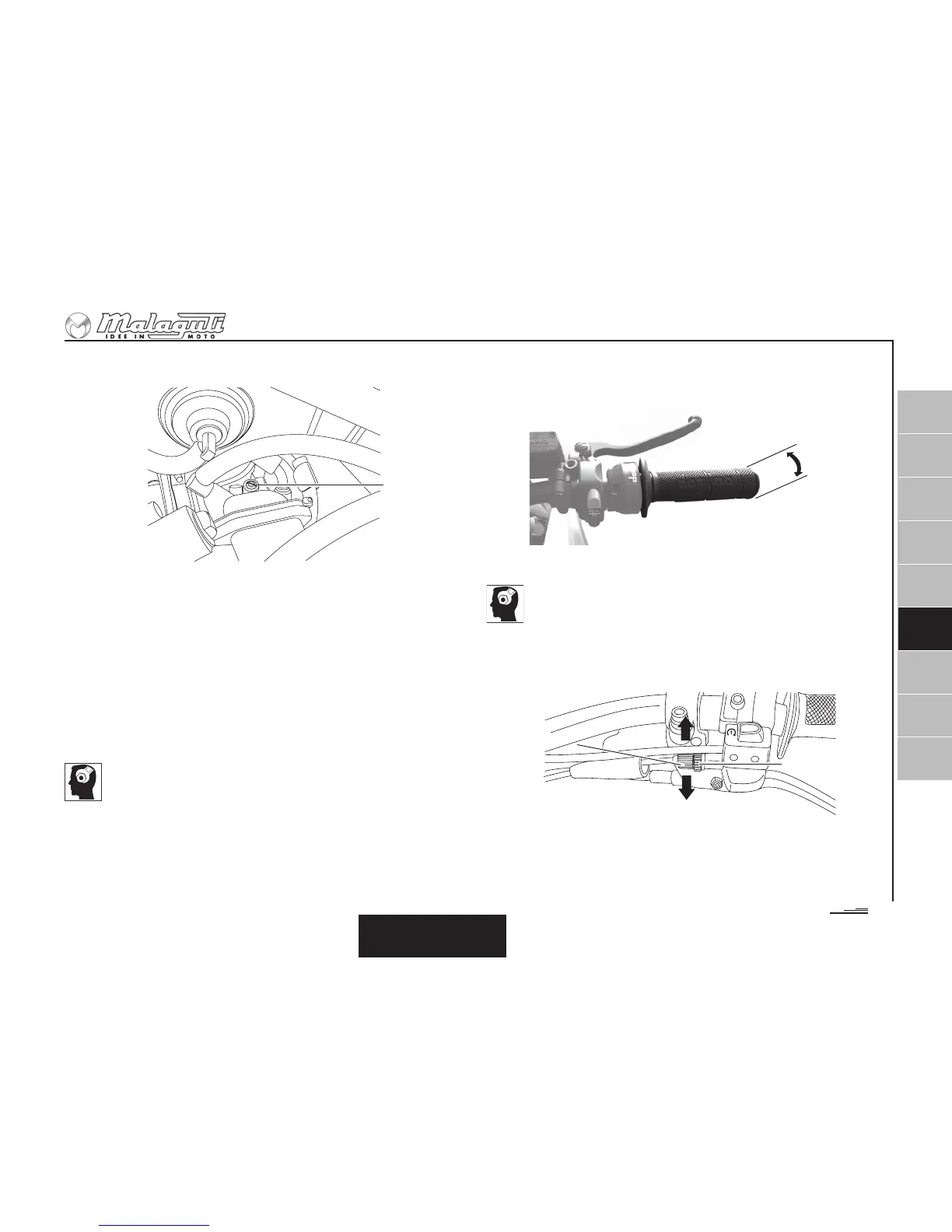

ADJUSTING THE IDLING SPEED ADJUSTING THE THROTTLE CABLE
Adjusting
1. Loosen locknut C
2. Turn adjusting nut D towards A to increase free play or towards
B to decrease it.
3. Tighten the locknut.
