Mamiya DSX - Page 27

G.

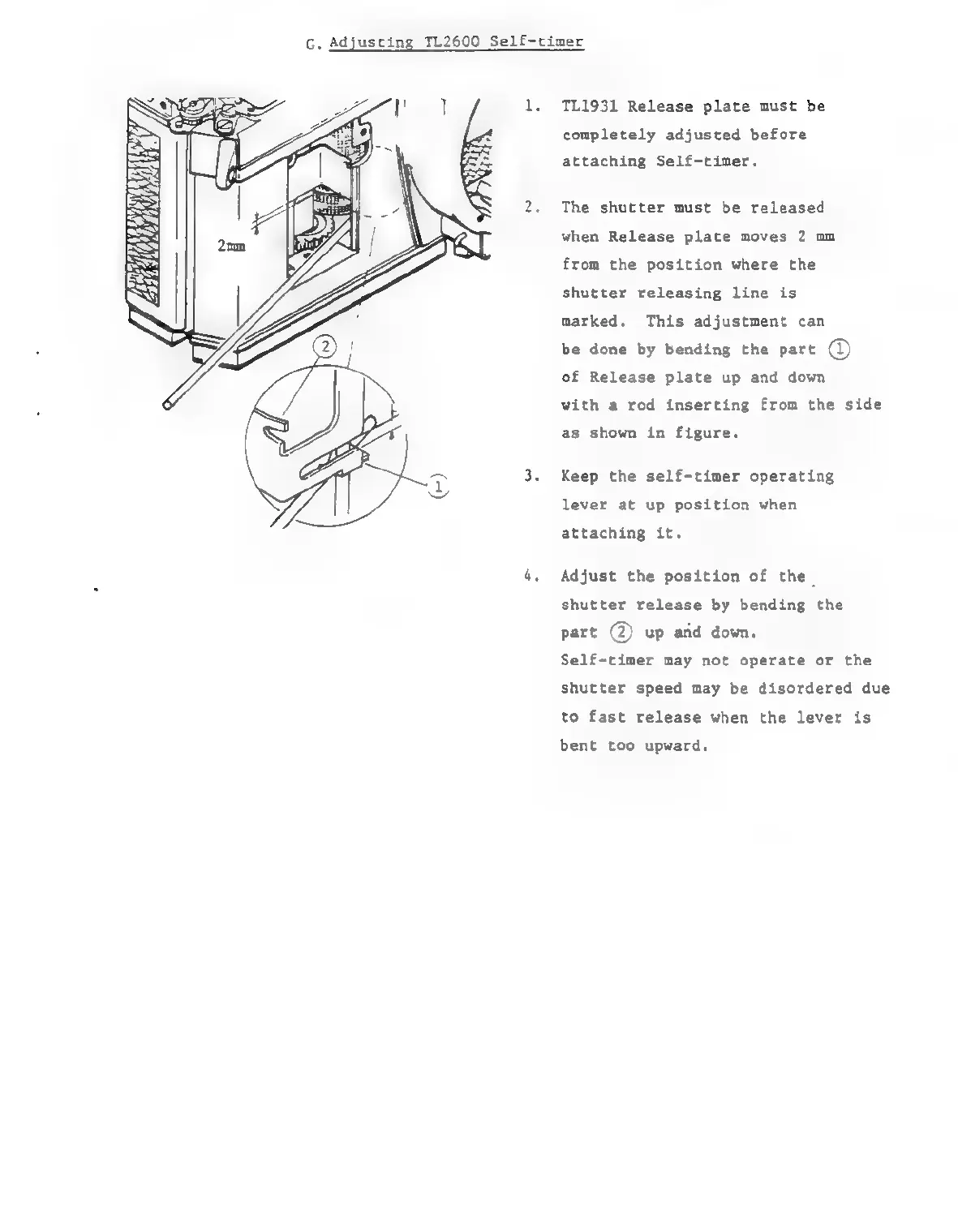

Adjustin
TL2600 Self-cimer
n
TL1931 Release plate must be
completely adjusted before
attaching Self-cimer.
The shutter must be released
when Release plate moves 2 mm
from the position where the
shutter releasing line is
marked, This adjustment can
be done by bending the part ®
of Release plate up and down
with a rod inserting from the side
as shown in figure.
Keep the self-timer operating
lever at up position when
attaching it.
Adjust the position of the.
shutter release by bending the
part @ up and down.
Self-timer may not operate or the
shutter speed may be disordered due
to fast release when the lever is
bent too upward.
