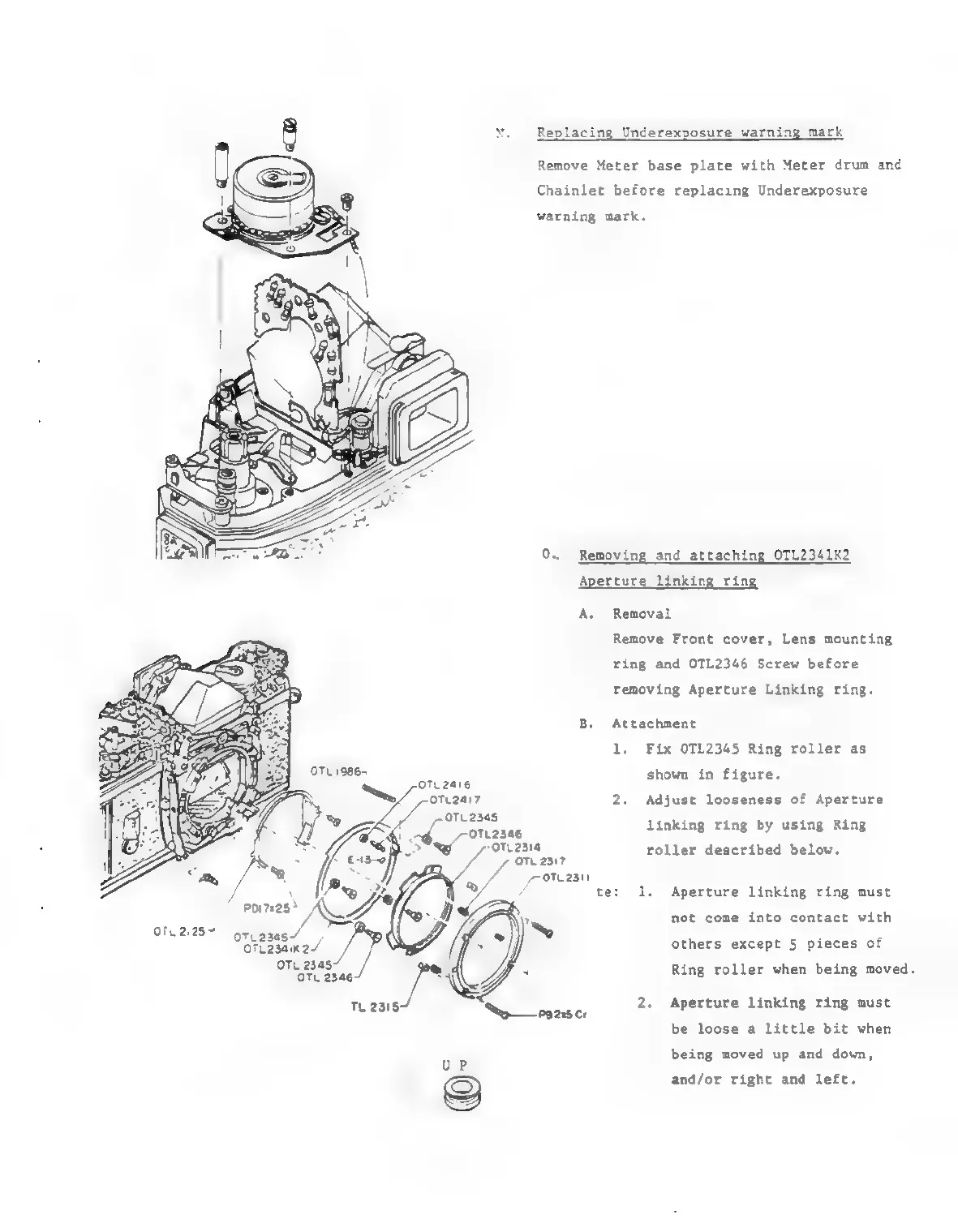

Mamiya DSX - Replacing Underexposure

ne Replacing Underexposure warning mark
Remove Meter base plate with Meter drum and
Chainlet before replacing Underexposure
warning mark.
0. Removing and attaching OTL2341K2
Aperture linking ring
A. Removal
Remove Front cover, Lens mounting
ring and OTL2346 Screw before
removing Aperture Linking ring.
B. Attachment
1. Fix OTL2345 Ring roller as
shown in figure.
oTL24i7 2. Adjust looseness of Aperture
OTL 2345 i
od, poneeses linking ring by using Ring
- WZ fala roller described below.
Ne E fo fora
Rm / . . poms
a oe; of / te: 1. Aperture linking ring must
PoI7x25 * A id
f G not come into contact with
OTL 2128~ oy, JS
Ue
iKke/
others
except
5
pieces
of
OTL 2345
ean f Ring roller when being moved.
2. Aperture linking ring must
TL 2315 & P8235 Cr P iB ig
be loose a little bit when
being moved up and down,
=> and/or right and left.
