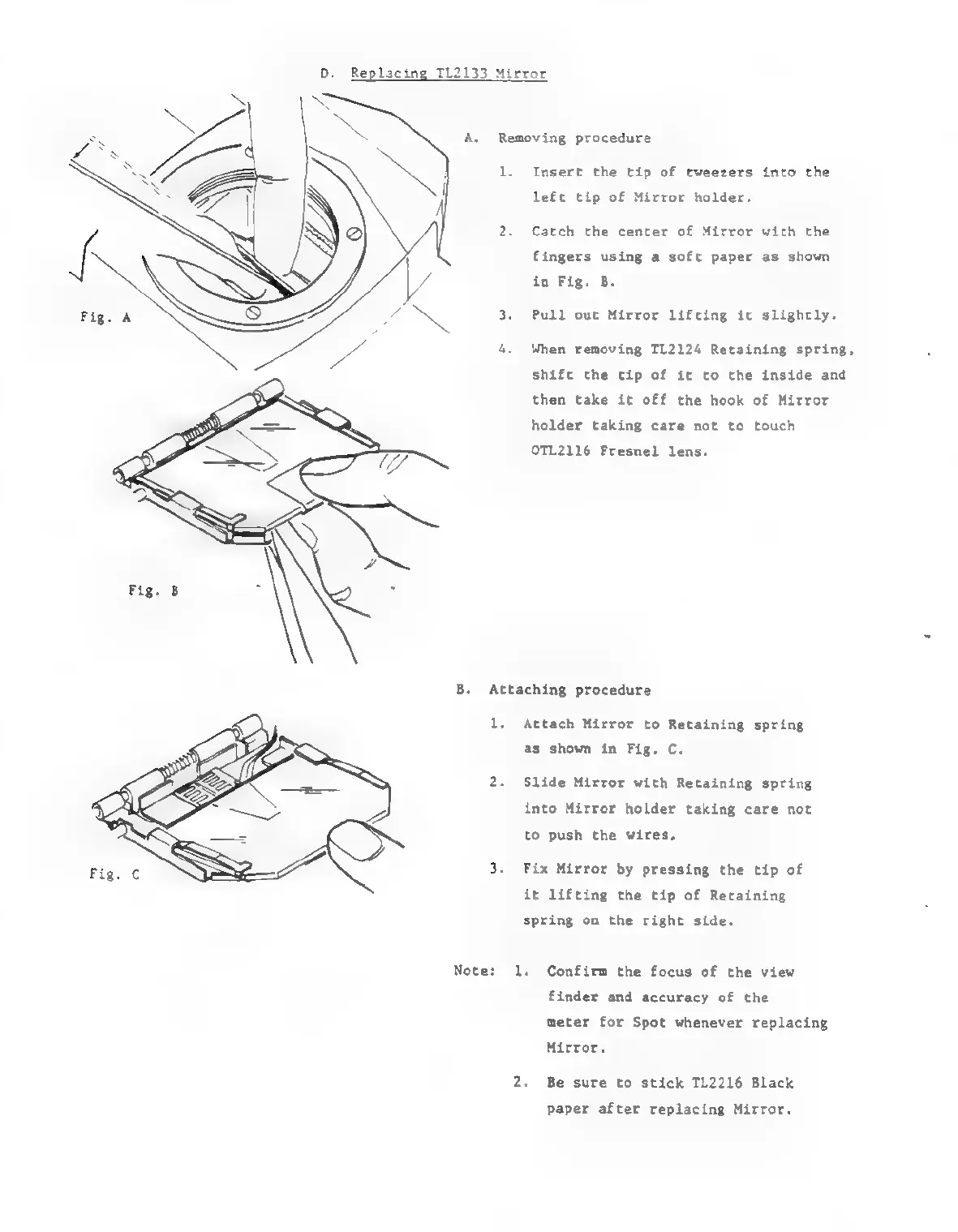

TL2133
Mirror
1s
A.
Removing
procedure
Insert
the
tip
of
tweezers
into
the
left
tip
of
Mirror
holder.
Catch
the
center
of
Mirror
with
the
fingers
using
a
soft
paper
as
shown
in
Fig.
B.
Pull
out
Mirror
lifting
it
slightly.
When
removing
TL2124
Retaining
spring,
shift
the
tip
of
it
to
the
inside
and
then take
it
off
the
hook
of
Mirror
holder
taking
care
not
to
touch
OTL2116
Fresnel
lens.
B.
Attaching
procedure
1.
Note:
Attach
Mirror
to
Retaining
spring
as
shown
in
Fig.
C.
Slide
Mirror
with
Retaining
spring
into
Mirror
holder
taking
care
not
to
push
the
wires.
Fix
Mirror
by
pressing
the
tip
of
it
lifting
the
tip
of
Retaining
spring
on
the
right
side.
1.
Confirm
the
focus
of
the
view
finder
and
accuracy
of
the
meter
for
Spot
whenever
replacing
Mirror.
2.
Be
sure
to
stick
TL2216
Black
paper
after
replacing
Mirror.
