Mamiya DSX - Page 45

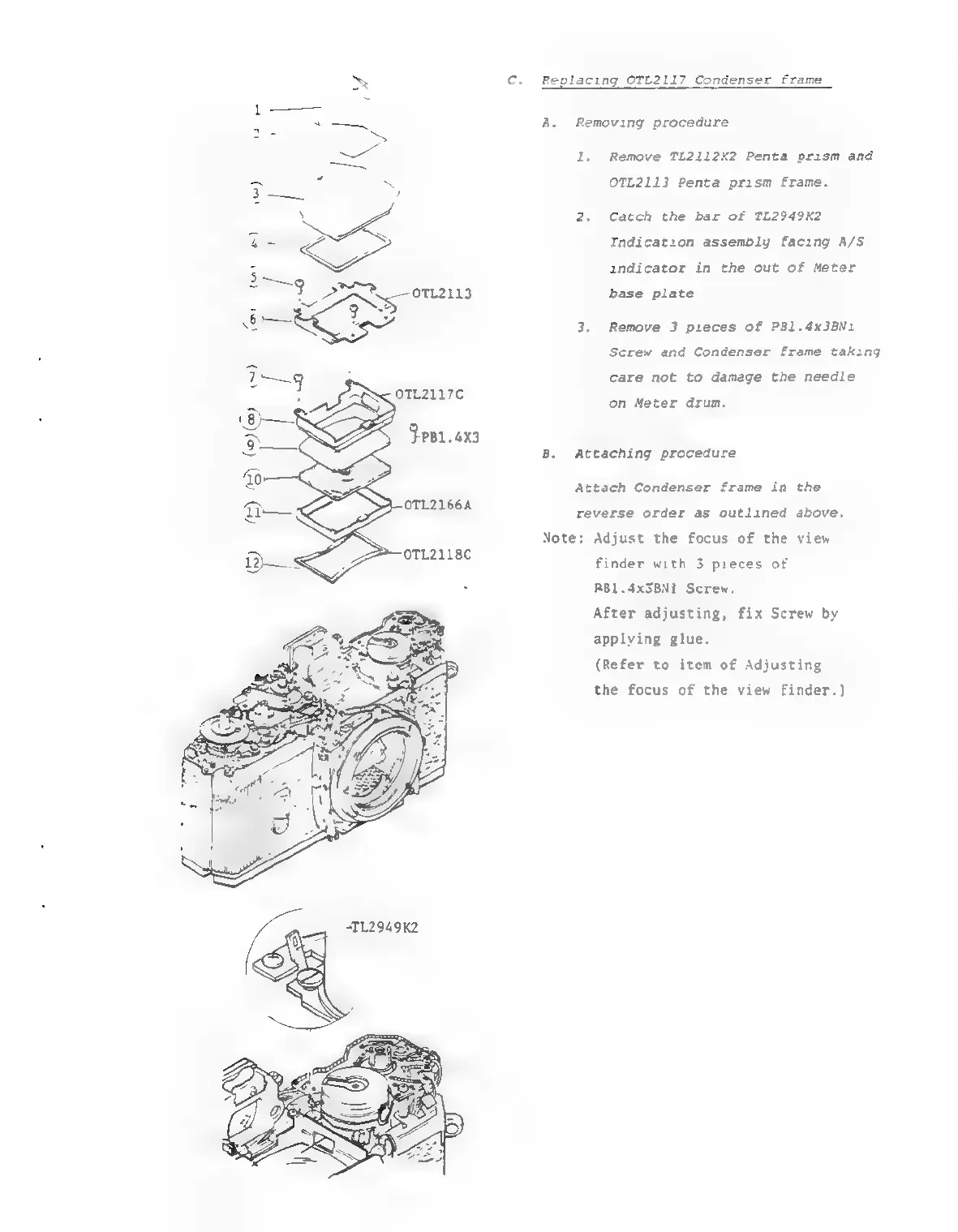

a C. Replacing OTL2117 Condenser frame
A. Removing procedure
1. Remove TL21i2K2 Penta prism and
OTL2113 Penta prism frame.
2. Catch the bar of TL2949K2
Indication assembly facing A/S
indicator in the out of Meter
OTL2113 base plate
3. Remove 3 pieces of PB1.4x3BNi
Screw and Condenser frame taking
care not to damage the needle
OTL2117¢
on Meter drum.
Jr1 «4X3
B. Attaching procedure
Attach Condenser frame in the
reverse order as outlined above.
Note: Adjust the focus of the view
on QRGzLTAS finder with 3 pieces of
RB1.4x35BNi Screw.
After adjusting, fix Screw by
applying glue.
(Refer to item of Adjusting
the focus of the view finder.)
