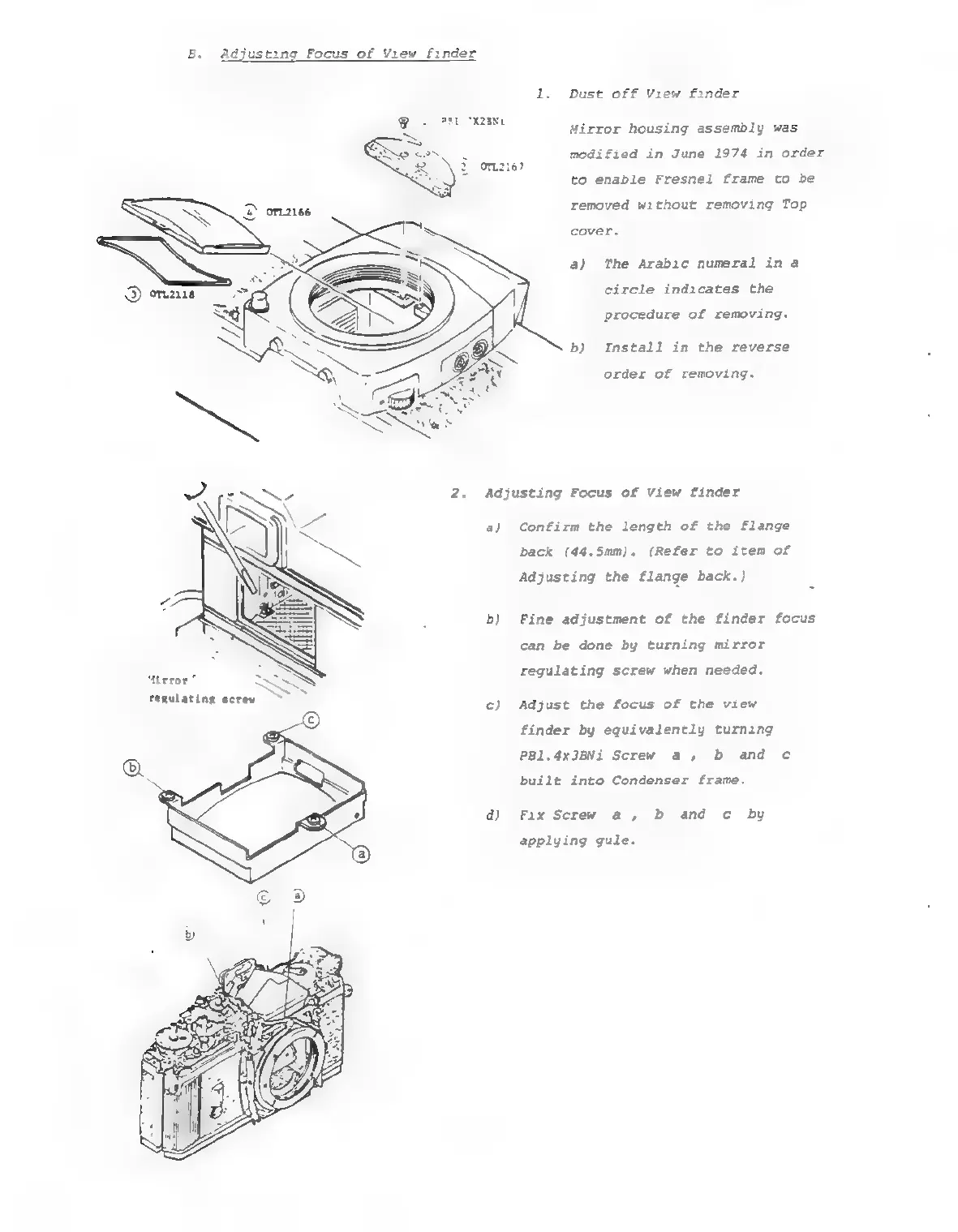

B.
Adjusting
Focus
of
View
finder
a)
4
b)
Weror
SS
regulating
screw
>
c)
d)
1.
Dust
off
View
finder
Mirror
housing
assembly
was
modified
in
June
1974
in
order
to
enable
Fresnel
frame
to
be
removed
without
removing
Top
cover.
a)
The
Arabic
numeral
ina
circle
indicates
the
procedure
of
removing.
b)
Install
in
the
reverse
order
of
removing.
(r
Saie
2.
Adjusting
Focus
of
View
finder
\
Confirm
the
length
of
the
flange
back
(44.5mm).
(Refer
to
item
of
Adjusting
the
flange
back.)
Fine
adjustment
of
the
finder
focus
can
be
done
by
turning
mirror
regulating
screw
when
needed.
Adjust
the
focus
of
the
view
finder
by
equivalently
turning
PB1.4x3BNi
Screw
a,
b
and
c
built
into
Condenser
frame.
Fix
Screw
a,
b
and
c
by
applying
gule.
