Mamiya DSX - Page 43

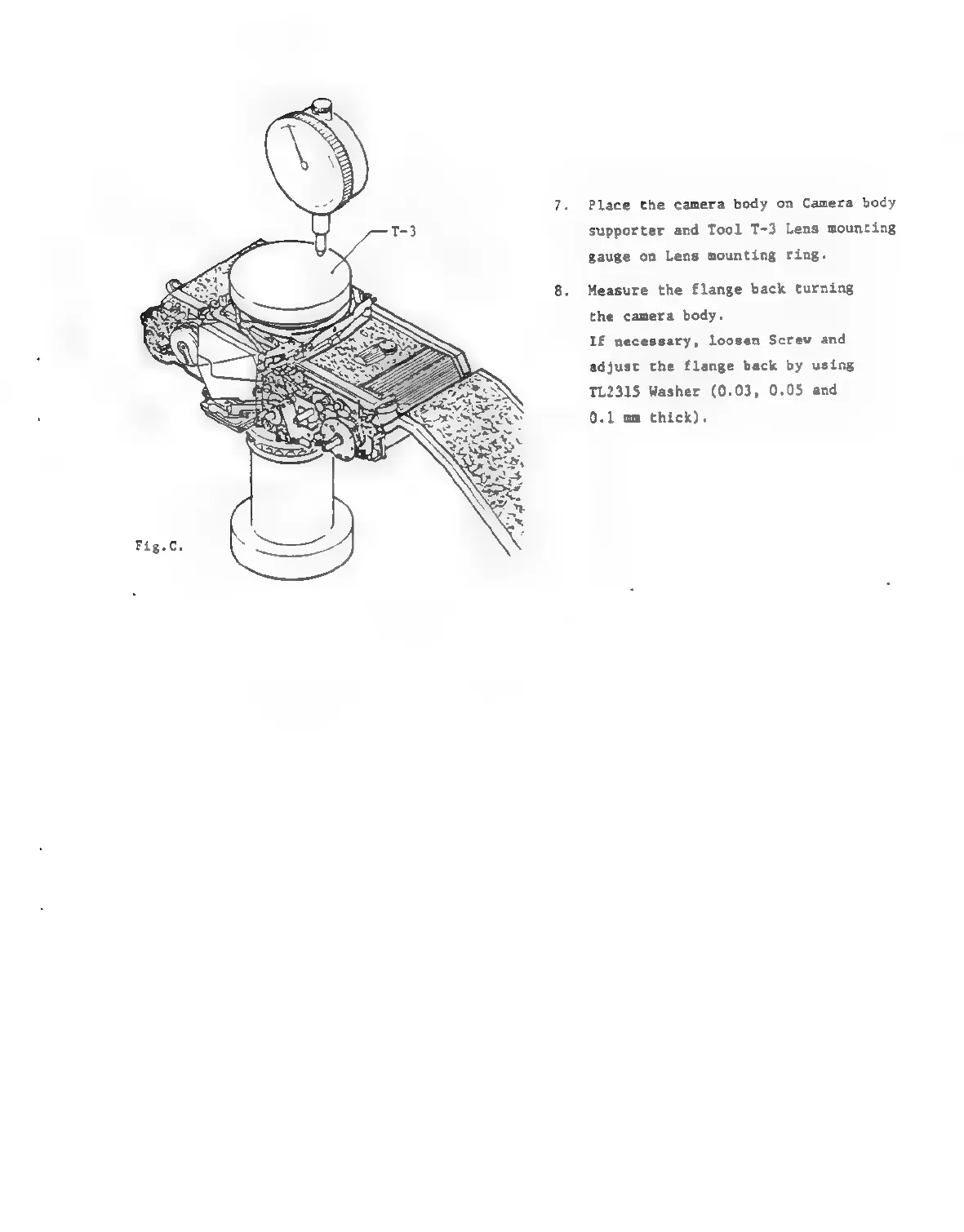

Place the camera body on Camera body
supporter and Tool T-3 Lens mouncing
gauge on Lens mounting ring.
Measure the flange back turning
the camera body.
If necessary, loosen Screw and
adjust the flange back by using
TL2315 Washer (0.03, 0.05 and
0.1 mm thick).
