Mamiya DSX - Adjusting

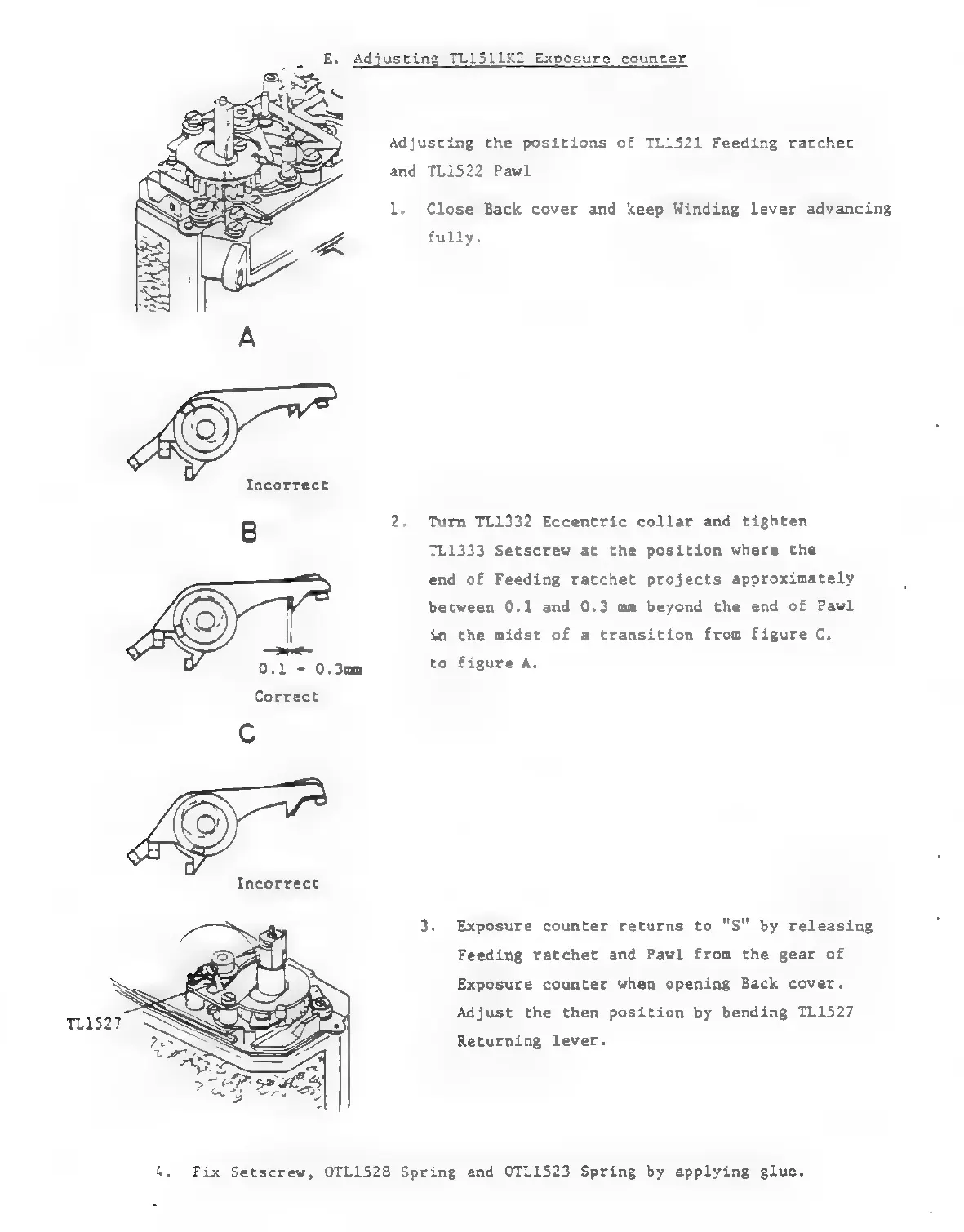

E. Adjusting TL151 Exposure counter
Adjusting the positions of TL1521 Feeding ratchec
and TL1522 Pawl
1. Close Back cover and keep Winding lever advancing
fully.
Incorrect
B 2. Turn TL1332 Eccentric collar and tighten
TL1333 Setscrew at the position where the
end of Feeding ratchet projects approximately
between 0.1 and 0.3 mm beyond the end of Pawl
in the midst of a transition from figure C,
to figure A.
3. Exposure counter returns to "S" by releasing
Feeding ratchet and Pawl from the gear of
Exposure counter when opening Back cover.
Adjust the then position by bending TL1527
Returning lever.
4, Fix Setscrew, OTL1528 Spring and OTL1523 Spring by applying glue.
