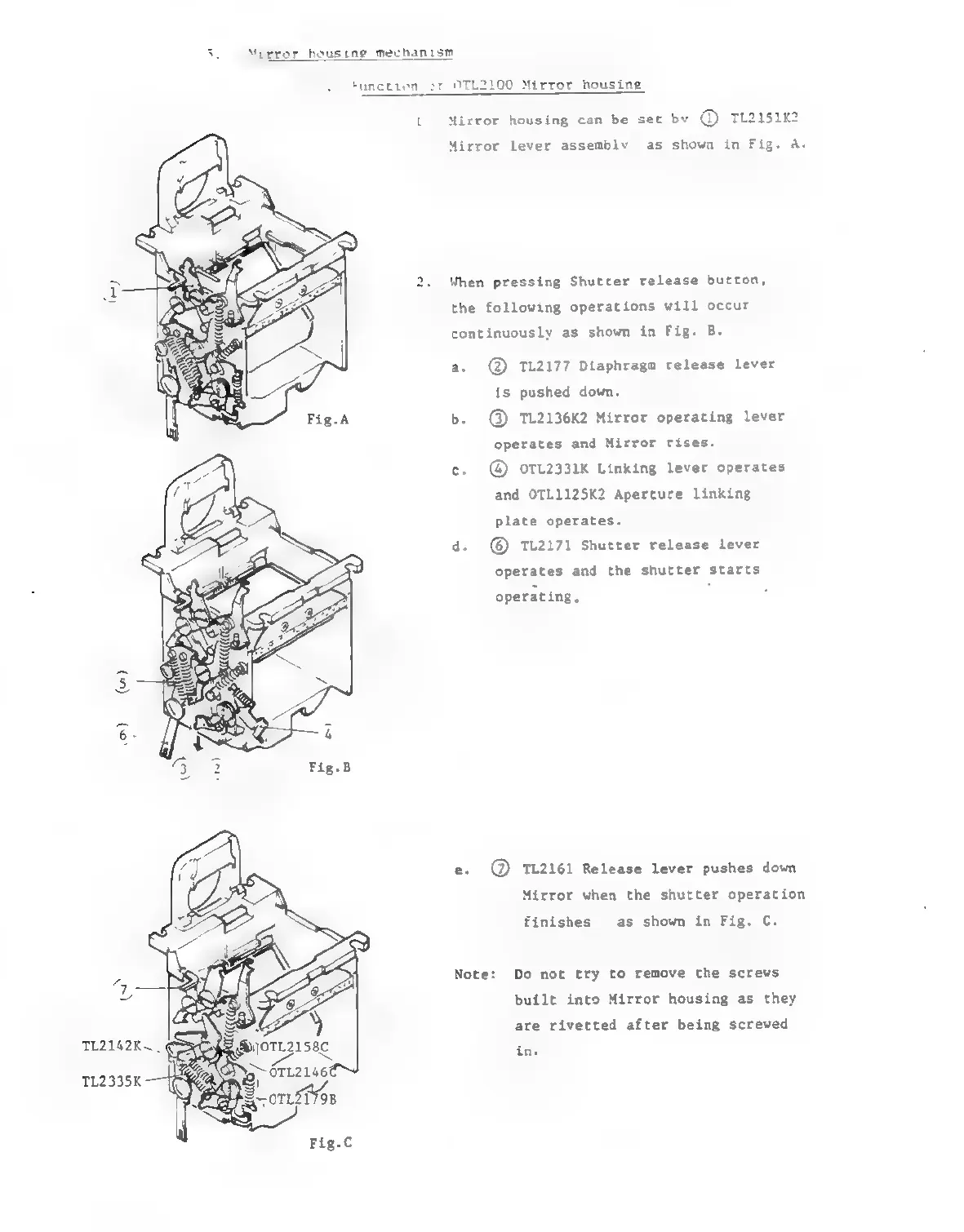

Mamiya DSX - Mirror Housing Mechanism; Function of Mirror

TL2142K~
TL2335K
Mirror
housing mechanism
Fig.C
Function
OTL2100 Mirror housing
Mirror housing can be set by () TL2151K2
Mirror lever assembly as shown in Fig. A.
When pressing Shutter release button,
the
following
operations
will
occur
continuously
as
shown
in
Fig.
B.
a.
@
112177
Diaphragm
release
lever
is
pushed
down.
b.
@
TL2136K2
Mirror
operating
lever
operates
and
Mirror
rises.
c.
@
0TL2331K
Linking
lever
operates
and
OTL1125K2
Aperture
linking
plate
operates.
d. © 102171 Shutter release lever
operates and the shutter starts
operating,
e. @ TL2161 Release lever pushes down
Mirror when the shutter operation
finishes as shown in Fig. C.
Note: Do not try to remove the screws
built into Mirror housing as they
are rivetted after being screwed
in.
