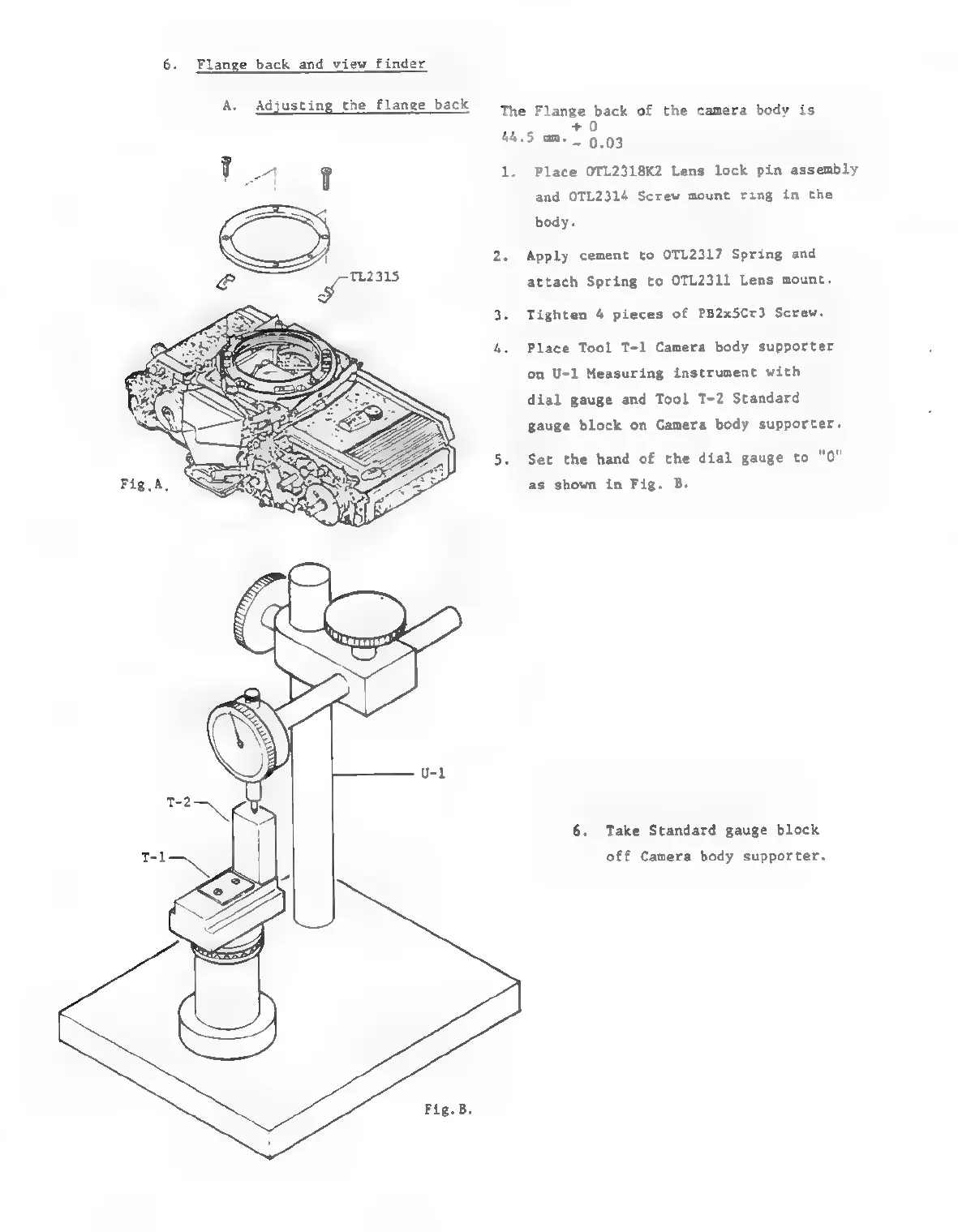

6. Flange back and view finder
A,
Adjusting
the
flange
back
The
Flange
back
of
the
camera
body
is
0
44.5 am.” 9 93
7
4
?
1.
Place
OTL2318K2
Lens
lock
pin
assembly
and
OTL2314
Screw
mount
ring
in
the
body.
f
2.
Apply
cement
to
OTL2317
Spring
and
attach
Spring
to
OTL2311
Lens
mount
Tighten
4
pieces
of
PB2x5Cr3
Screw.
Place Tool T-l Camera body supporter
on U-1 Measuring instrument with
dial gauge and Tool T-2 Standard
gauge block on Camera body supporter.
Set the hand of the dial gauge to "0"
as shown in Fig. B.
6. Take Standard gauge block
off Camera body supporter.
