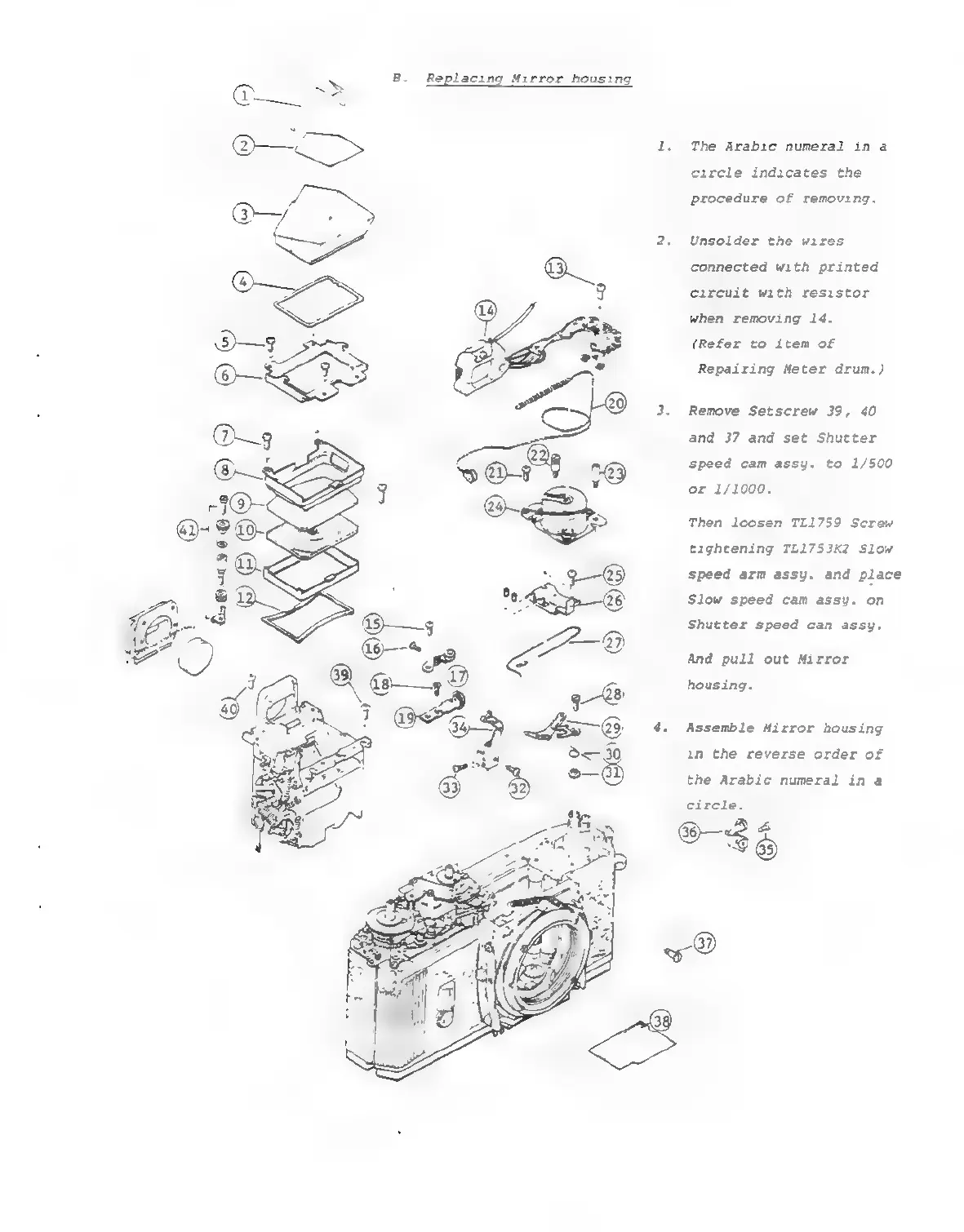

Mamiya DSX - Replacing Mirror

% 8. Replacing Mirror housing
i. The Arabic numeral in a
circle indicates the
procedure of removing.
2. Unsolder the wires
connected with printed
circuit with resistor
when removing 14.
(Refer to item of
Repairing Meter drum.)
3, Remove Setscrew 39, 40
and 37 and set Shutter
speed cam assy. to 1/500
or 1/1000.
Then loosen TL1759 Screw
tightening TL1753K2 Slow
speed arm assy. and place
Slow speed cam assy. on
Shutter speed can assy.
And pull out Mirror
housing.
4. Assemble Mirror housing
in the reverse order of
the Arabic numeral in a
circle.
