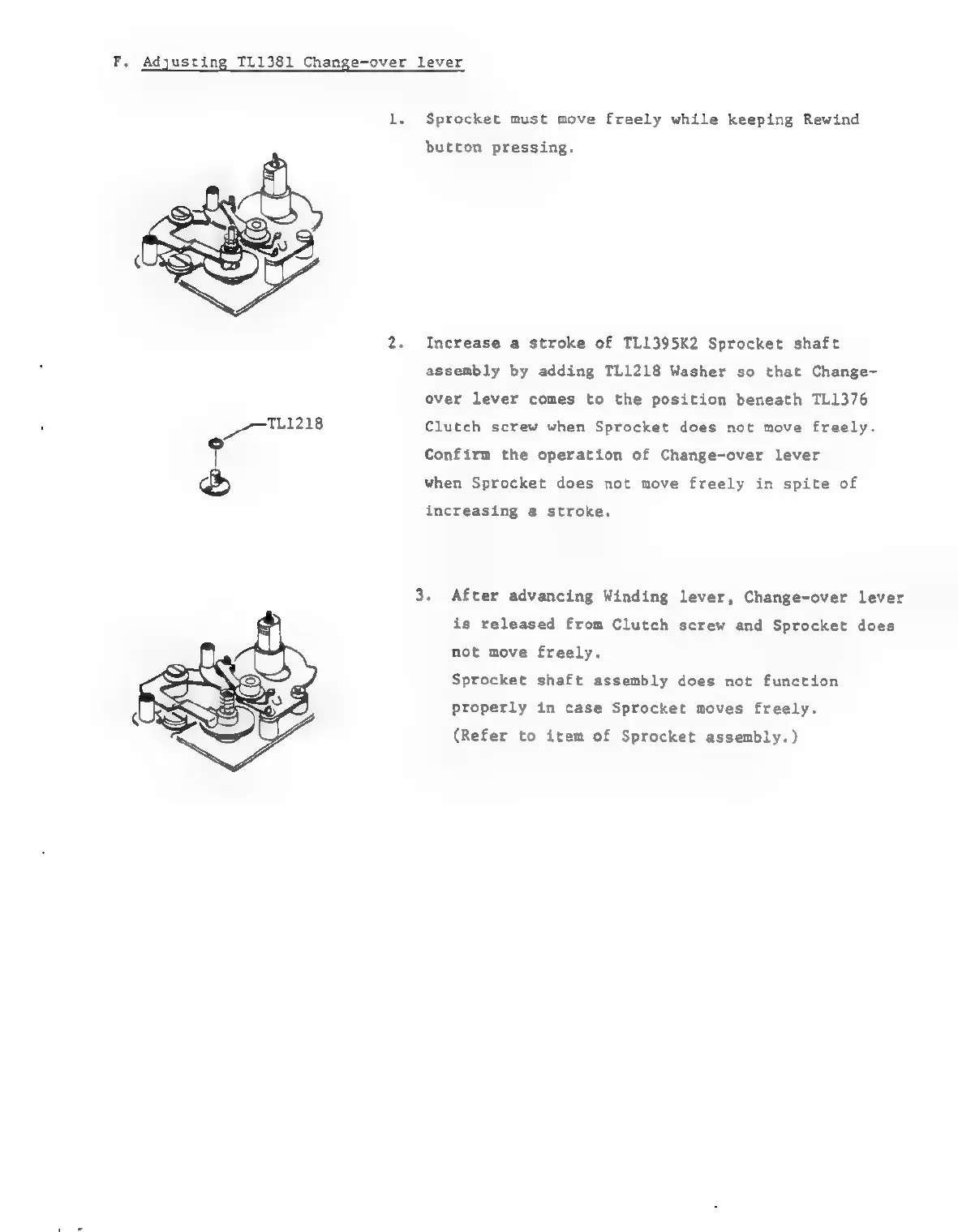

F, Adjusting TL1381 Change-over lever
1. Sprocket must move freely while keeping Rewind
button pressing.
2. Increase a stroke of TL1395K2 Sprocket shaft
assembly by adding TL1218 Washer so that Change-
over lever comes to the position beneath TL1376
771218
Clutch
screw
when
Sprocket
does
not
move
freely.
5
Confirm
the
operation
of
Change-over
lever
&
when
Sprocket
does
not
move
freely
in
spite
of
increasing a stroke.
3. After advancing Winding lever, Change-over lever
is released from Clutch screw and Sprocket does
not move freely.
Sprocket shaft assembly does not function
properly in case Sprocket moves freely.
(Refer to item of Sprocket assembly.)
