Mamiya DSX - Page 18

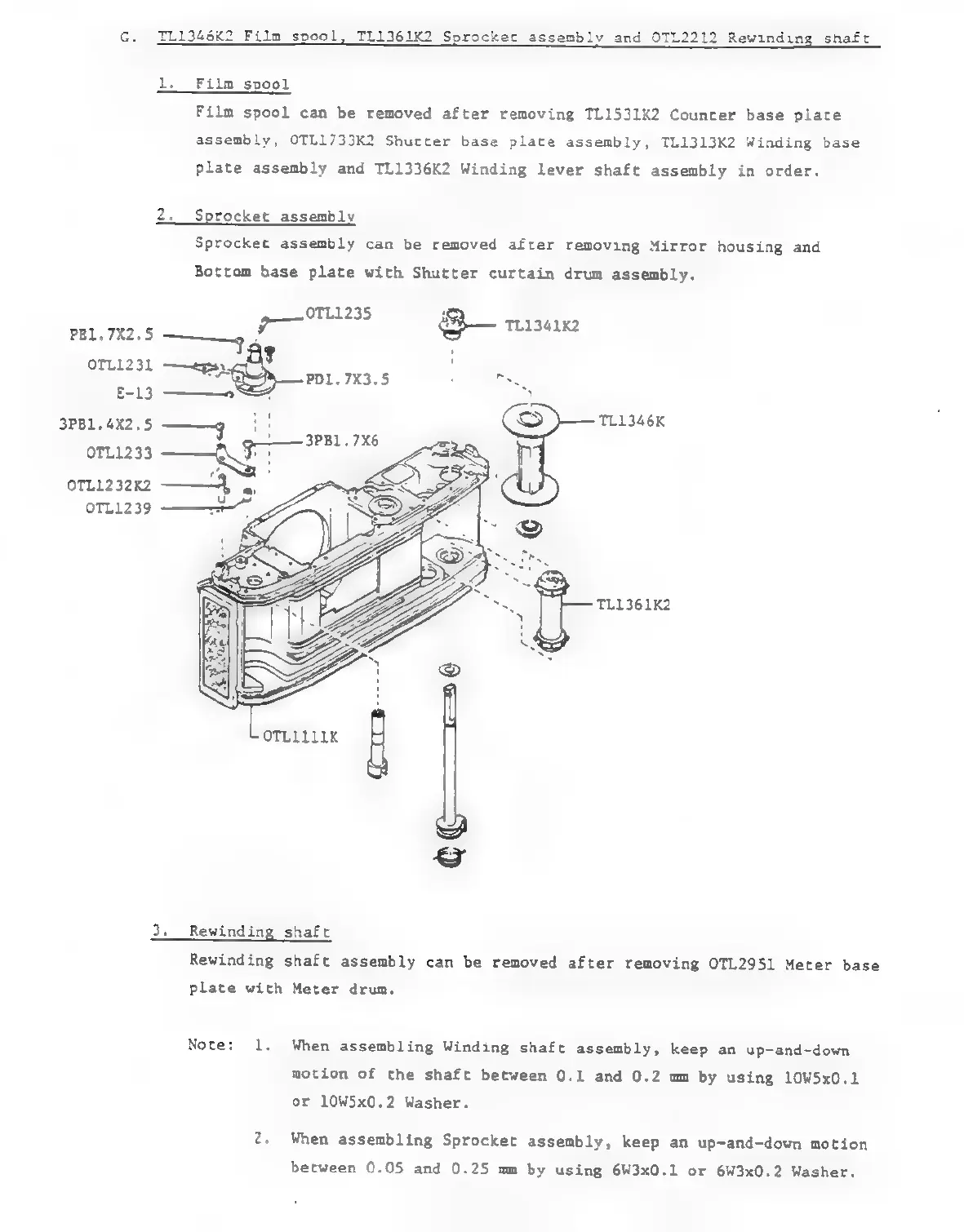

G. TL1346K2 Film spool, TL1361K2 Sprocket assembly and OTL2212 Rewinding shaft
1. im_spool
Film spool can be removed after removing TL1531K2 Counter base plate
assembly,
OTL1733K2
Shutter
base
plate
assembly,
TL1313K2
Winding
base
plate assembly and TL1336K2 Winding lever shaft assembly in order.
2. Sprocket assembly
Sprocket assembly
can
be
removed
after
removing
Mirror
housing
and
Bottom
base
plate
with
Shutter
curtain
drum
assembly.
OTL1235 r
PL. 7X2.5 ——_y vor e— rel
ay
OTL1231 —egs
QS — PL. 7x3.5
E-13 ———»
3PBL.4X2.5 i
OTL1233 NE F
OTL1232K2 ——A,
OTL1239 ——=-~
OTL1111K
3. Rewinding shaft
Rewinding
shaft
assembly
can
be
removed
after
removing
OTL2951
Meter
base
plate with Meter drum.
Note:
1.
When
assembling
Winding
shaft
assembly,
keep
an
up-and-down
motion
of
the
shaft
between
0.1
and
0.2
mm
by
using
10W5x0.1
or
10W5x0.2
Washer.
2,
When
assembling
Sprocket
assembly,
keep
an
up-and-down
motion
between
0.05
and
0.25
mm
by
using
6W3x0.1
or
6W3x0.2
Washer
