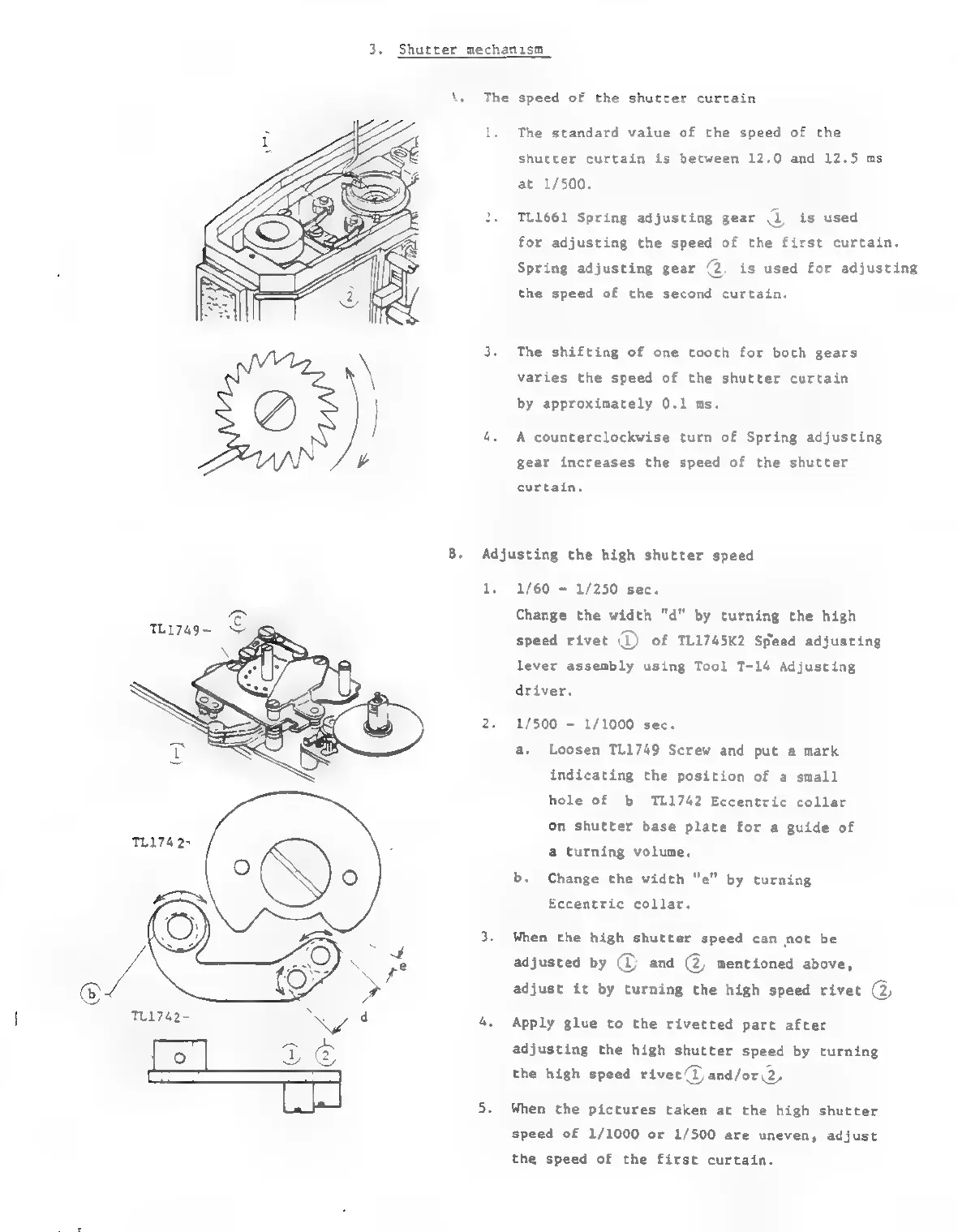

3.
Shutter
mechanism
\.
The
speed
of
the
shutter curtain
The
standard
value
of
the
speed
of
the
shutter
curtain
is
between
12.0
and
12.5
ms
at
1/500.
TL1661
Spring
adjusting
gear
(1
is
used
for
adjusting
the
speed
of
the
first
curtain.
Spring
adjusting
gear
(2.
is
used
for
adjusting
the
speed
of
the
second
curtain.
The
shifting
of
one
tooth
for
both
gears
varies
the
speed
of
the
shutter
curtain
by
approximately
0.1
ms.
A
counterclockwise
turn
of
Spring
adjusting
gear
increases
the
speed
of
the
shutter
curtain.
B.
Adjusting
the
high
shutter
speed
1.
1/60
-
1/250
sec.
Change
the
width
"d"
by
turning
the
high
speed
rivet
(1)
of
TL1745K2
Speed
adjusting
lever
assembly
using
Tool
T-14
Adjusting
driver.
1/500
-
1/1000
sec.
a.
Loosen
TL1749
Screw
and
put
a
mark
indicating
the
position
of
a
small
hole
of
b
TL1742
Eccentric
collar
on
shutter
base
plate
for
a
guide
of
a
turning
volume,
b.
Change
the
width
"e"
by
turning
Eccentric
collar.
When
the
high
shutter
speed
can
not
be
adjusted
by
(1)
and
(2,
mentioned
above,
adjust
it
by
turning
the
high
speed
rivet
(2)
Apply
glue
to
the
rivetted
part
after
adjusting
the
high
shutter
speed
by
turning
the
high
speed
rivet
(1)
and/or(2;
When
the
pictures
taken
at
the
high
shutter
speed
of
1/1000
or
1/500
are
uneven,
adjust
the
speed
of
the
first
curtain.
