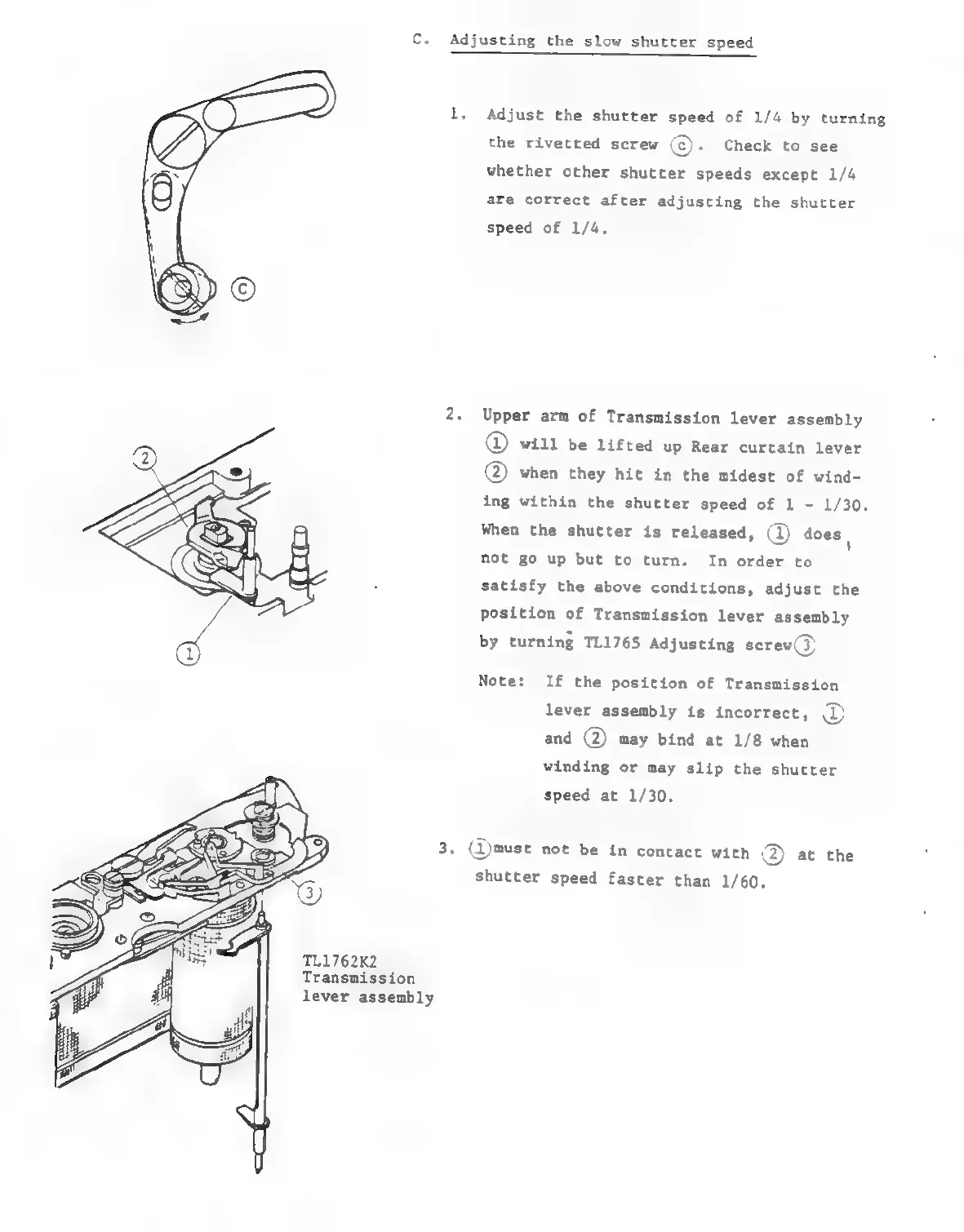

Mamiya DSX - Page 20

C.
Adjusting
the
slow
shutter
speed
ee
ee
1.
Adjust
the
shutter
speed
of
1/4
by
turning
the
rivetted
screw
(©).
Check
to
see
whether
other
shutter
speeds
except
1/4
are
correct
after
adjusting
the
shutter
speed of 1/4.
2.
Upper
arm
of
Transmission
lever
assembly
@
will
be
lifted
up
Rear
curtain
lever
@
vhen
they
hit
in
the
midest
of
wind-
ing
within
the
shutter
speed
of
1
-
1/30.
When
the
shutter
is
released,
®
does
|
not
go
up
but
to
turn.
In
order
to
satisfy
the
above
conditions,
adjust
the
position
of
Transmission
lever
assembly
by
turning
TL1765
Adjusting
screw(3)
Note:
If
the
position
of
Transmission
lever
assembly
is
incorrect,
®
and
@
may
bind
at
1/8
when
winding
or
may
slip
the
shutter
speed
at
1/30.
3.
Qmust
not
be
in
contact
with
@
at
the
shutter
speed
faster
than
1/60.
TL1762K2
Transmission
lever assembly
