Mamiya DSX - Page 29

Ae
B

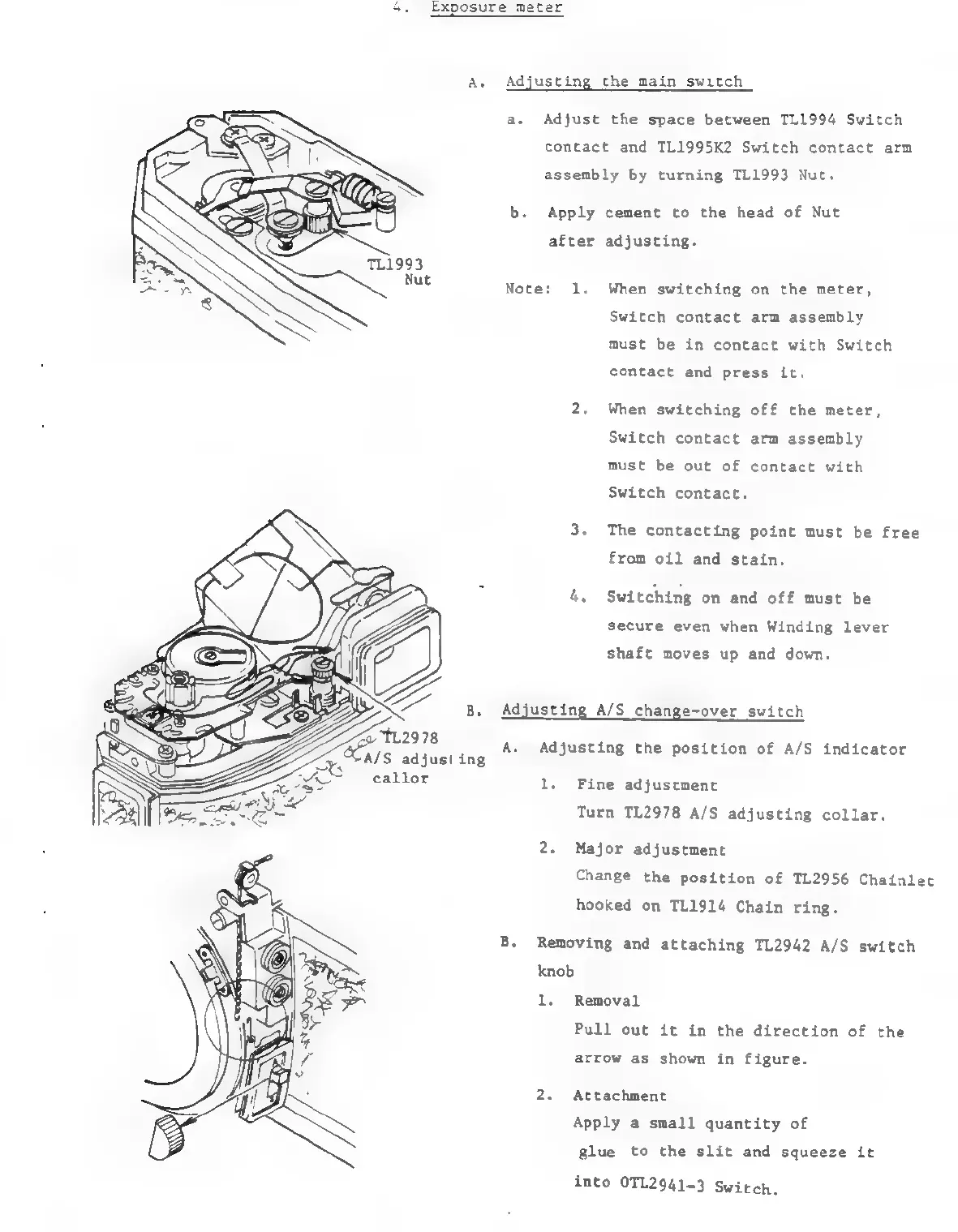

Adjusting the main switch
a. Adjust the space between TL1994 Switch
contact and TL1995K2 Switch contact arm
assembly by turning TL1993 Nut.
b. Apply cement to the head of Nut
after adjusting.
Note: 1. When switching on the meter,
Switch contact arm assembly
must be in contact with Switch
contact and press it.
2. When switching off the meter,
Switch contact arm assembly
must be out of contact with
Switch contact.
3,
The
contacting
point
must
be
free
from oil and stain.
4. Switching on and off must be
secure even when Winding lever
shaft moves up and down.
Adjusting A/S change-over switch
Adjusting the position of A/S indicator
1. Fine adjustment
Turn TL2978 A/S adjusting collar.
2. Major adjustment
Change
the
position
of
TL2956
Chainlet
hooked on TL1914 Chain ring.
B.
Removing
and
attaching
TL2942
A/S
switch
knob
1.
Removal
Pull
out
it
in
the
direction
of
the
arrow
as
shown
in
figure.
2.
Attachment
Apply
a
small
quantity
of
glue
to
the
slit
and
squeeze
it
into
OTL2941-3
Switch,
