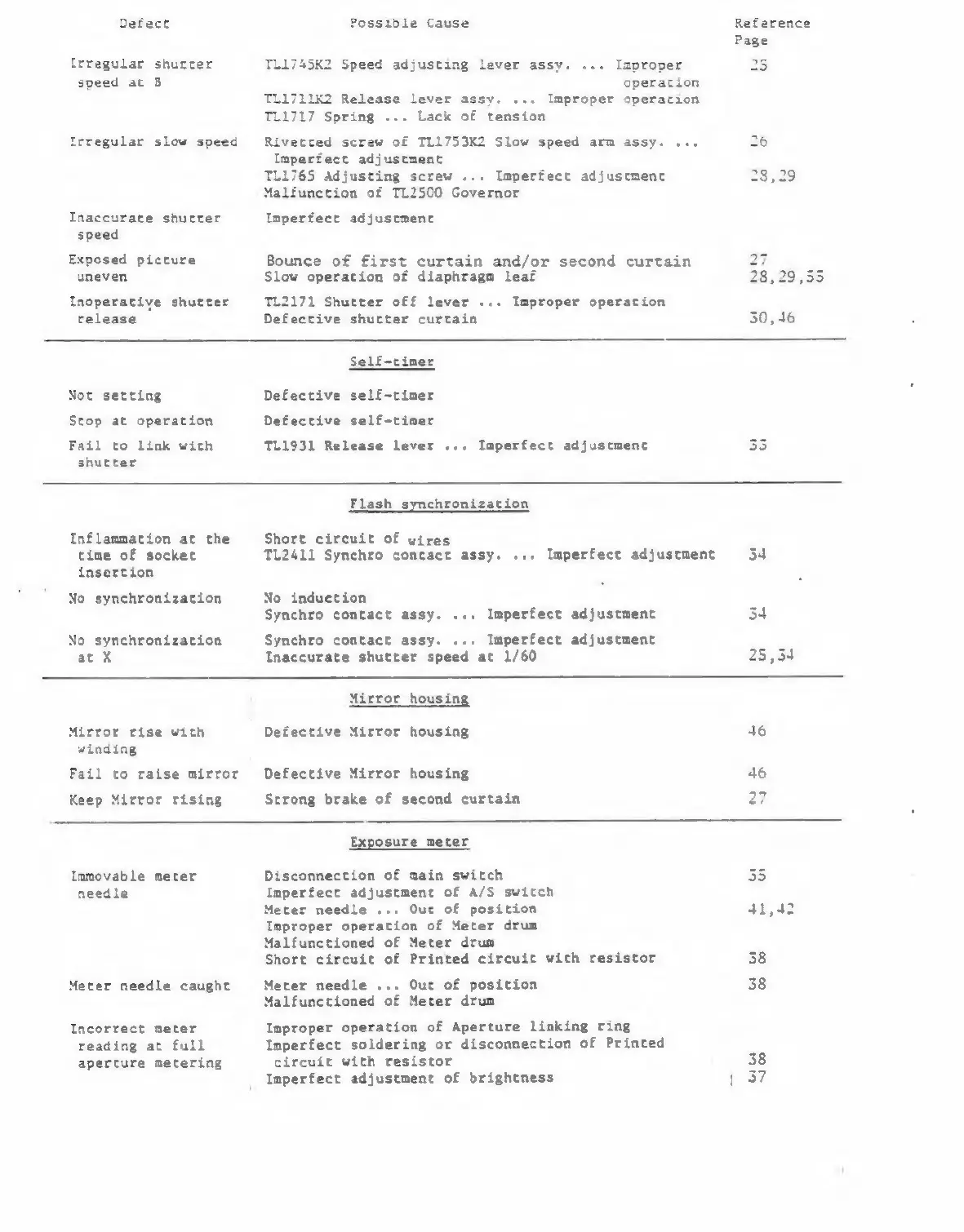

Defect
Irregular shutcer
speed at B
Irregular slow speed
Inaccurate shutter
speed
Exposed picture
uneven
Inoperative shutter
Possible Cause
TL1745K2 Speed adjusti
g
ver assy. Improper
operation
TLI711K2 Release lever assy. Improper operation
TLL717 Spring Lack of tension
Rivetted screw of TL1753K2 Slow speed arm assy. ...
Imperfect adjustment
TL1765 Adjusting screw ... Imperfect adjustment
Malfunction of TL2500 Governor
Imperfect adjustmenc
Bounce of first curtain and/or second curtain
Slow operation of diaphragm lear
TL2171 Shutter off lever ... Improper operation
Reference
Page
25:
23529.
telease Defective shutter curtain 30,46
Self-cimer
Not setting Defective self-cimer
Stop at operation Defective self-timer
Fail to link with TL1931 Release lever Imperfect adjustmenc 33
shutter
Flash synchronization
Inflammation at the Shore circuit of wires
time of socket TL2411 Synchro contact assy. Imperfect adjustment 34
insertion
No synchronization No induction
Synchro contact assy. ... Imperfect adjustment 34
No synchronization Synchro contact assy. ... Imperfect adjustment
at X Inaccurate shutter speed at 1/60 25,54
Mirror housing
Mirror rise with Defective Mirror housing 46
winding
Fail to raise mirror Defective Mirror housing 46
Keep Mirror rising Strong brake of second curtain 27
Exposure meter
Immovable meter Disconnection of main switch 35
needle Imperfect adjustment of A/S switch
Meter needle ... Out of position 41,42
Improper operation of Meter drum
Malfunctioned of Meter drum
Short circuit of Printed circuit with resistor 3
Meter needle caught Meter needle ... Out of position 38
Malfunctioned of Meter drum
Incorrect
meter
Improper
operation
of
Aperture
linking
ring
reading at full Imperfect soldering or disconnection of Printed
aperture
metering
circuit
with
resistor
38
Imperfect adjustment of brightness 37
