2. Parts
andand
How
to
Operate

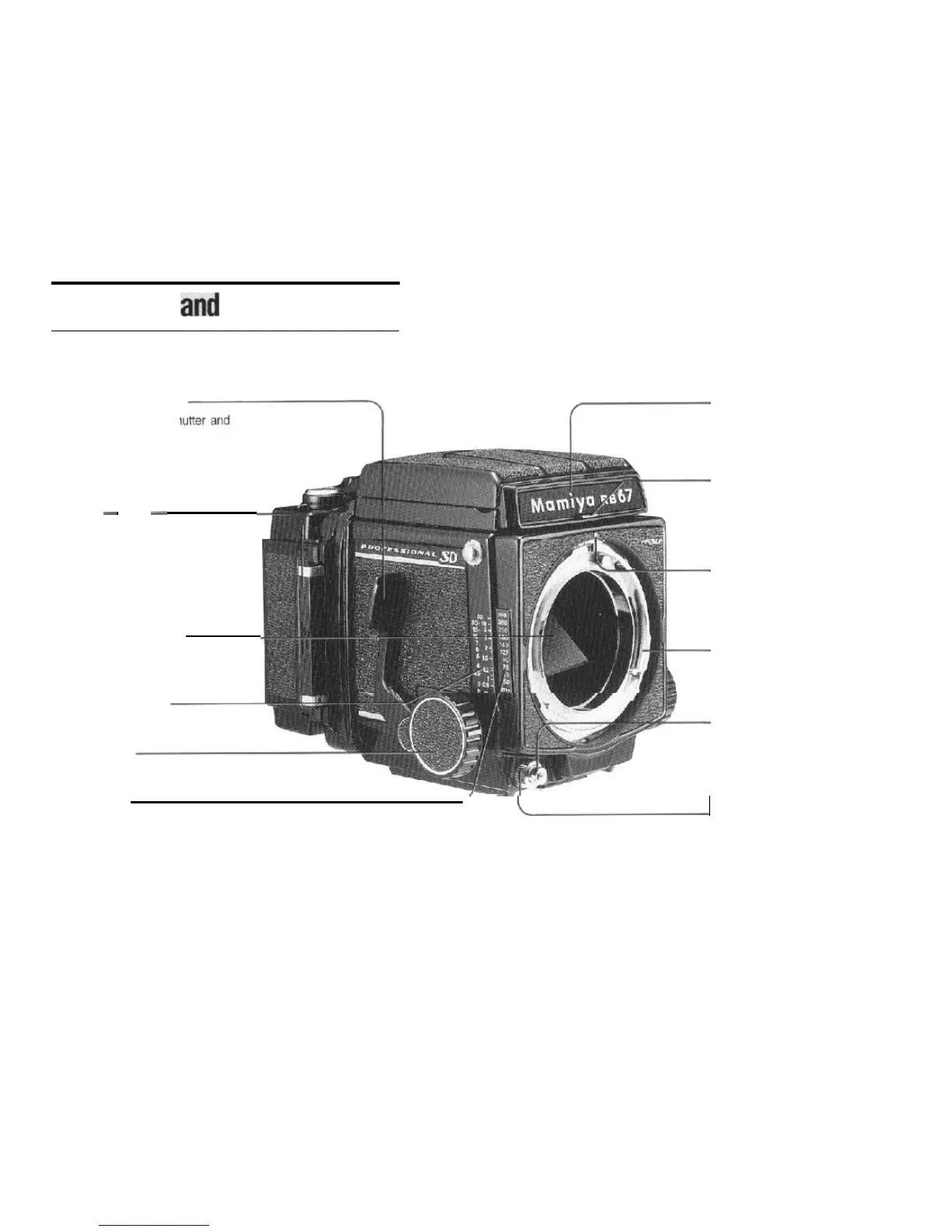

Shutter cocking lever
The lever cocks both the sh
the mirror. Unless they are set,
a
safety device prevents the shutter
release button from being depressed.
Dark slide
-
-
When the dark slide is inserted, a
safety device prevents the shutter
release
button
from being depressed.
(Take the dark slide out before taking
a picture and put it into the storing
lug.)
Mirror (Never touch it!)
Distance graduation
Focusing knob
Nameplate
By
sliding the nameplate, the focusing
hood can be exchanged.
. Finder latch
The latch prevents the finder
from
slip-
ping off if the nameplate is carelessly
move.
Lens mounting index mark
(red dot)
Lens mount
Shutter release button
A
safety device will prevent the shutter
from being released if the camera
is
not completely ready for photography.
Distance scale
L
Shutter release lock ring
When index mark of the ring is aligned
with the red dot, a safety device
pre-
vents
the shutter release
button
from
being depressed. (Align the index
mark with
the
white dot before taking a
picture.)
