V-belts
118

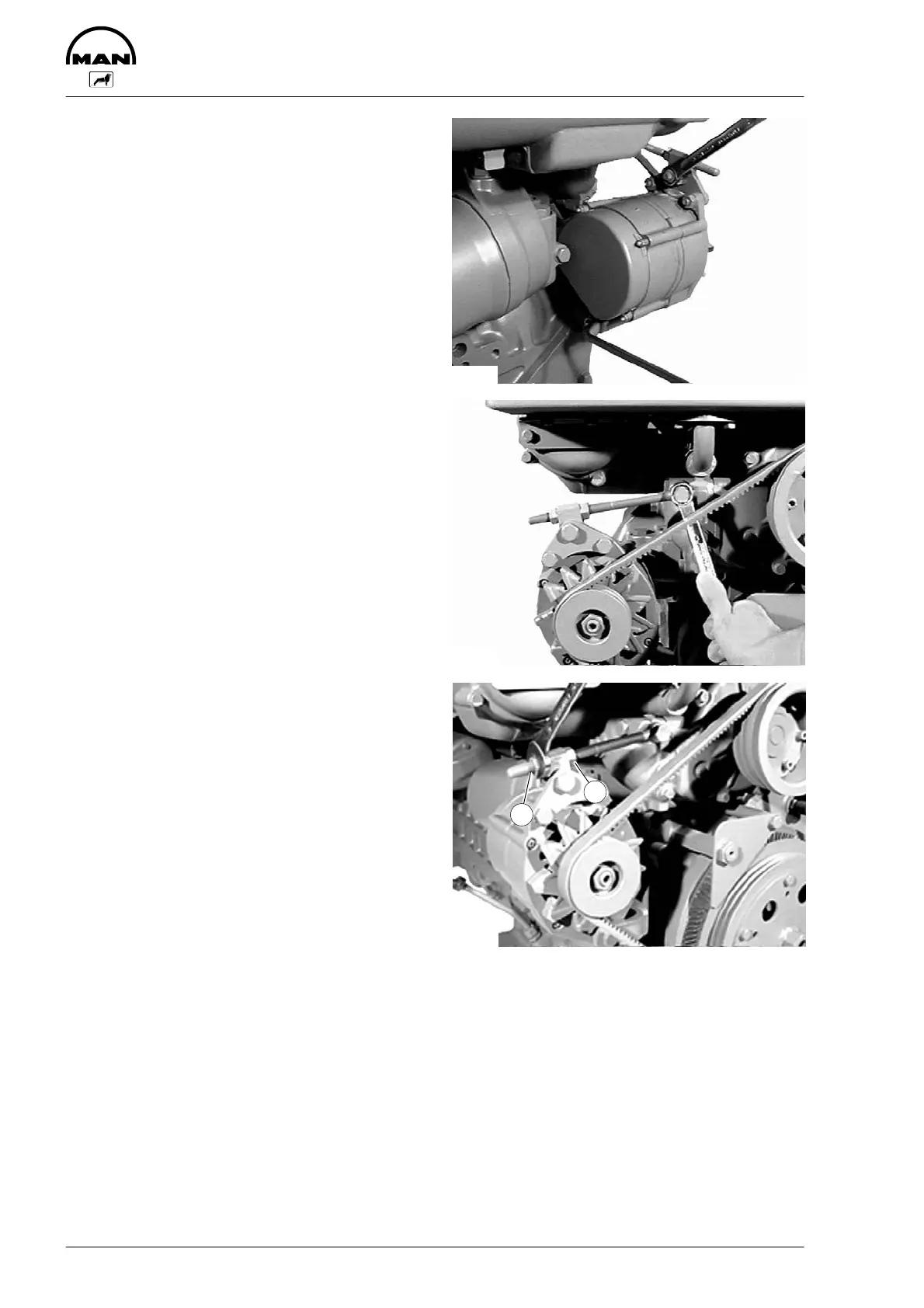

Tensioning V-belts
Figs. 5 and 6
Remove the mounting bolts from both the alterna-
tor and the tensioning device.
Fig. 7
D Loosen lock nut À
D Turn adjusting nut Á until the V-belts are cor-
rectly tensioned
D Retighten lock nut and mounting bolts
