Removing and installing timing case
98
D Remove starter, see page 116
D Remove flywheel, see page 62

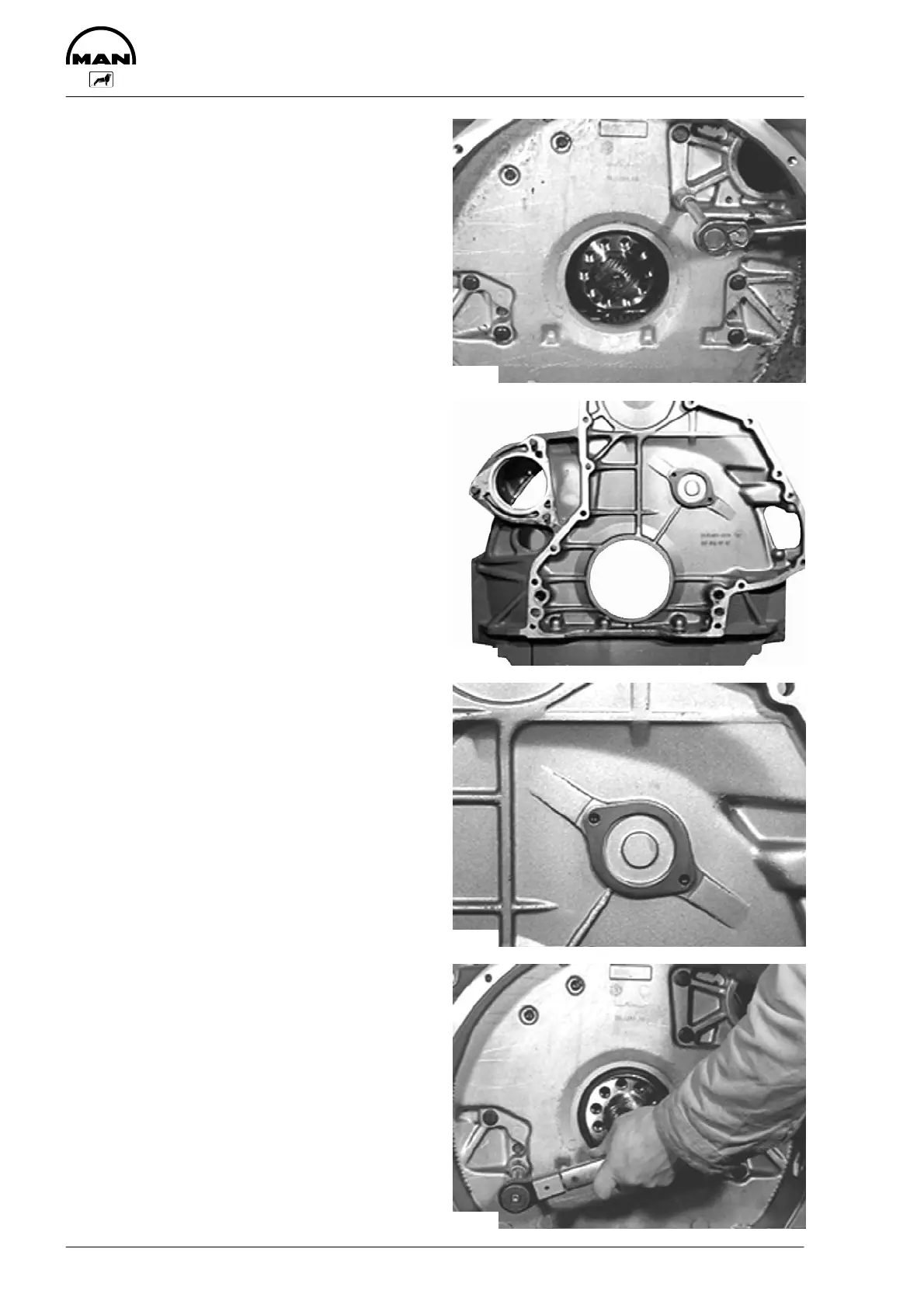

Fig. 1
Remove the mounting bolts (17 mm).
The bottom of the timing case is bolted to the oil
pan.
Fig. 2
Take off the timing case. Take the gasket off the
timing case and fit a new one.
Fig. 3
Check the contact washer on the camshaft for
wear, if necessary fitting a new one.
Fig. 4
Stick new gasket to timing case using grease.
Fit flywheel housing. Check whether the oil-pan
gasket is in order, if necessary fitting a new one.
Slightly oil the threads and the contact faces of the
mounting bolts and tighten the bolts to the speci-
fied torque (see ”Engineering, Data and Setting
values”).
