Man D 2866 LE 403 - Removing and Installing Turbocharger

1
2
3
4

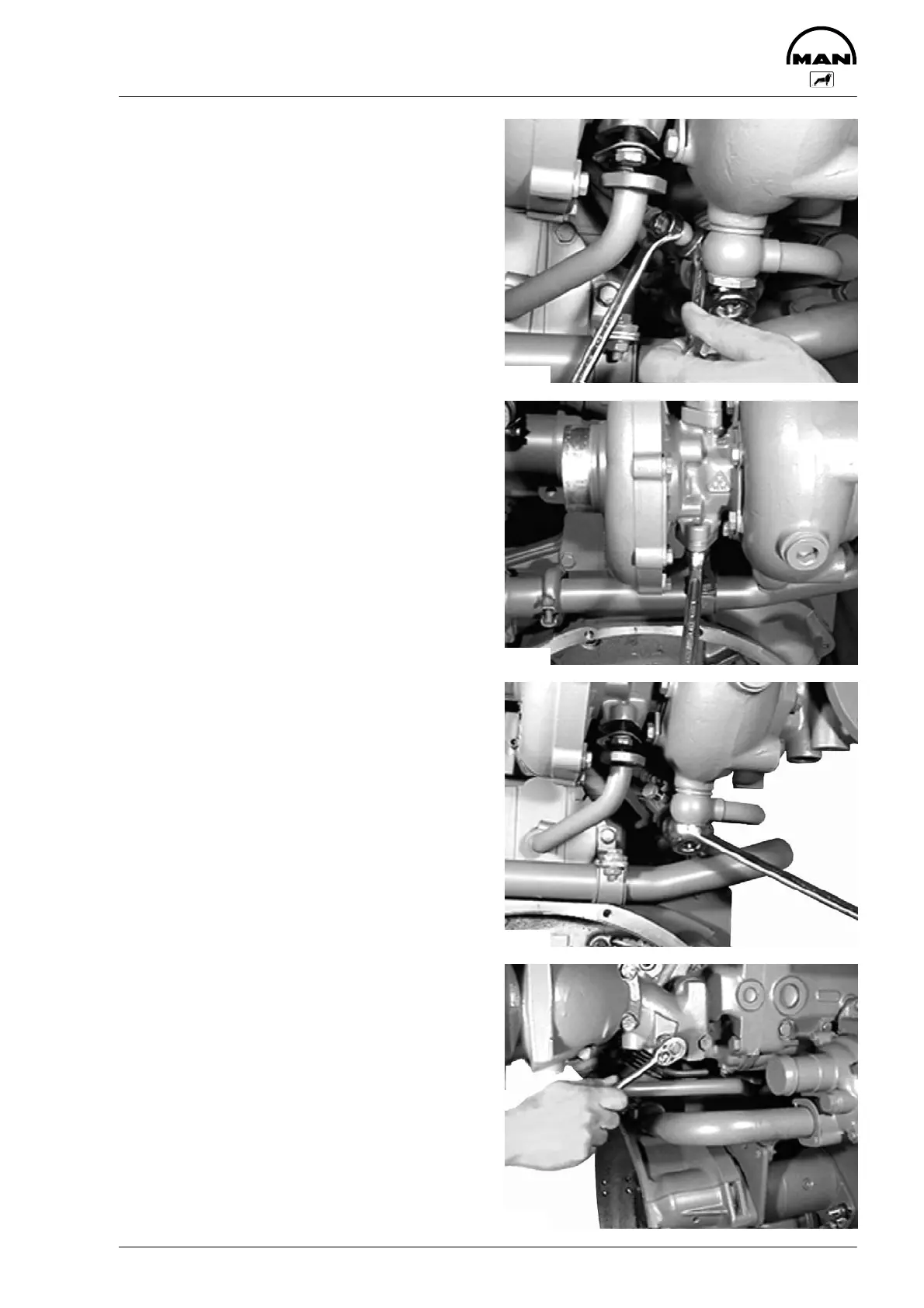

Removing and installing turbocharger
73
Removing turbocharger
D Drain coolant, see page 37
Fig. 1
Take off air filter. Remove the hose from the crank-
case breather.
Take off air filter. Remove the hose from the crank-
case breather.
Remove the air intake funnel and the connection
from the compressor to the charge-air elbow.
Remove the hose from the wastegate.
Fig. 2
Remove oil supply and return lines (17 mm).
Fig. 3
Remove the coolant supply line from the turbo-
charger.
Fig. 4
Remove the mounting bolts from the exhaust man-
ifold (17 mm).
Remove the coolant line between the turbine hous-
ing and the exhaust manifold.
3502
3503
3504
3505
