5
6
7

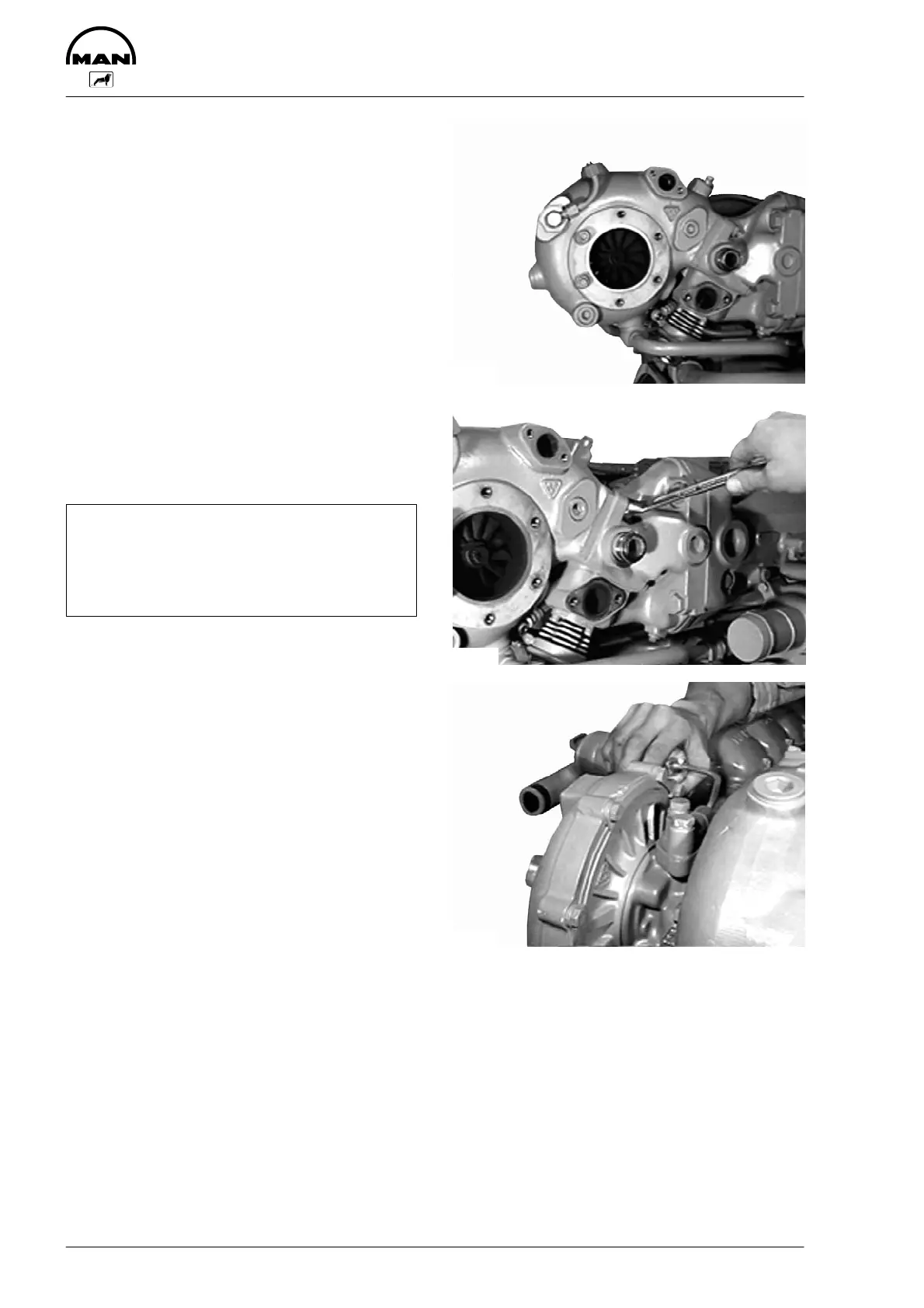

Removing and installing turbocharger
74
Fig. 5
Take off exhaust manifold.
Fig. 6
Remove the four (self–locking) nuts from the turbo-
charger flange (17 mm).
Take off turbocharger.
Note:
Ensure meticulous cleanliness when putting
the turbocharger aside to prevent dirt and
foreign matter from penetrating into the inte-
rior of the turbocharger.
Installing turbocharger
Fig. 7
The turbocharger is assembled in reverse order.
When assembling, use new seals and new self–
locking nuts.
Before connecting up the oil supply line, fill bearing
housing up with clean engine oil.
Check all connections for leaks and tension.
3506
3508
3509
