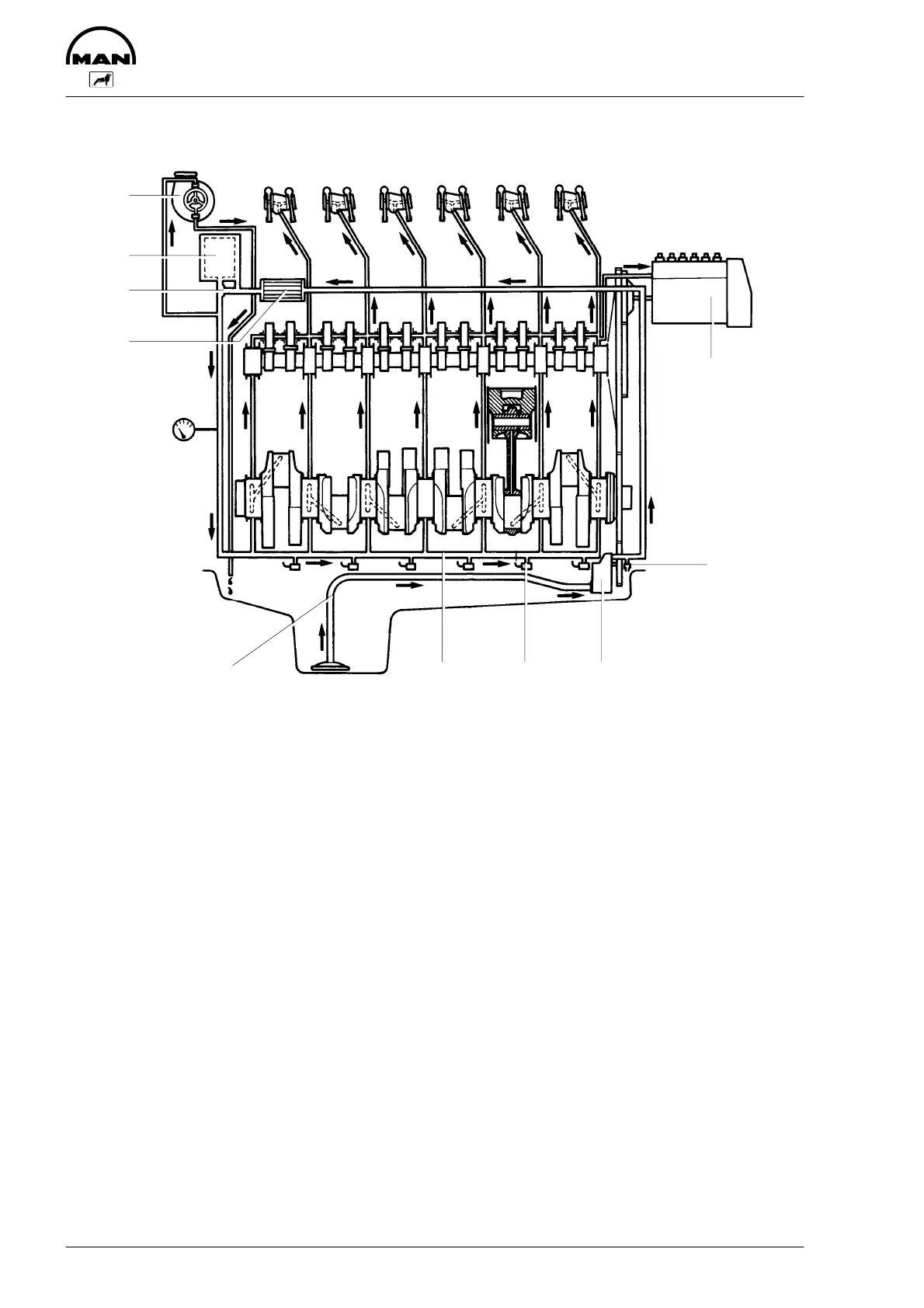

Schematic diagram of engine lubrication system
20
1
2033
234
5
9
6
7
8
10
1 Oil suction pipe 6 Bypass valve
2 Distributor pipe 7 Oil filter
3 Oil spray nozzle 8 Turbocharger
4 Oil pump 9 Oil cooler
5 Oil pressure relief valve 10 Injection pump
