Removing and installing oil pump
55

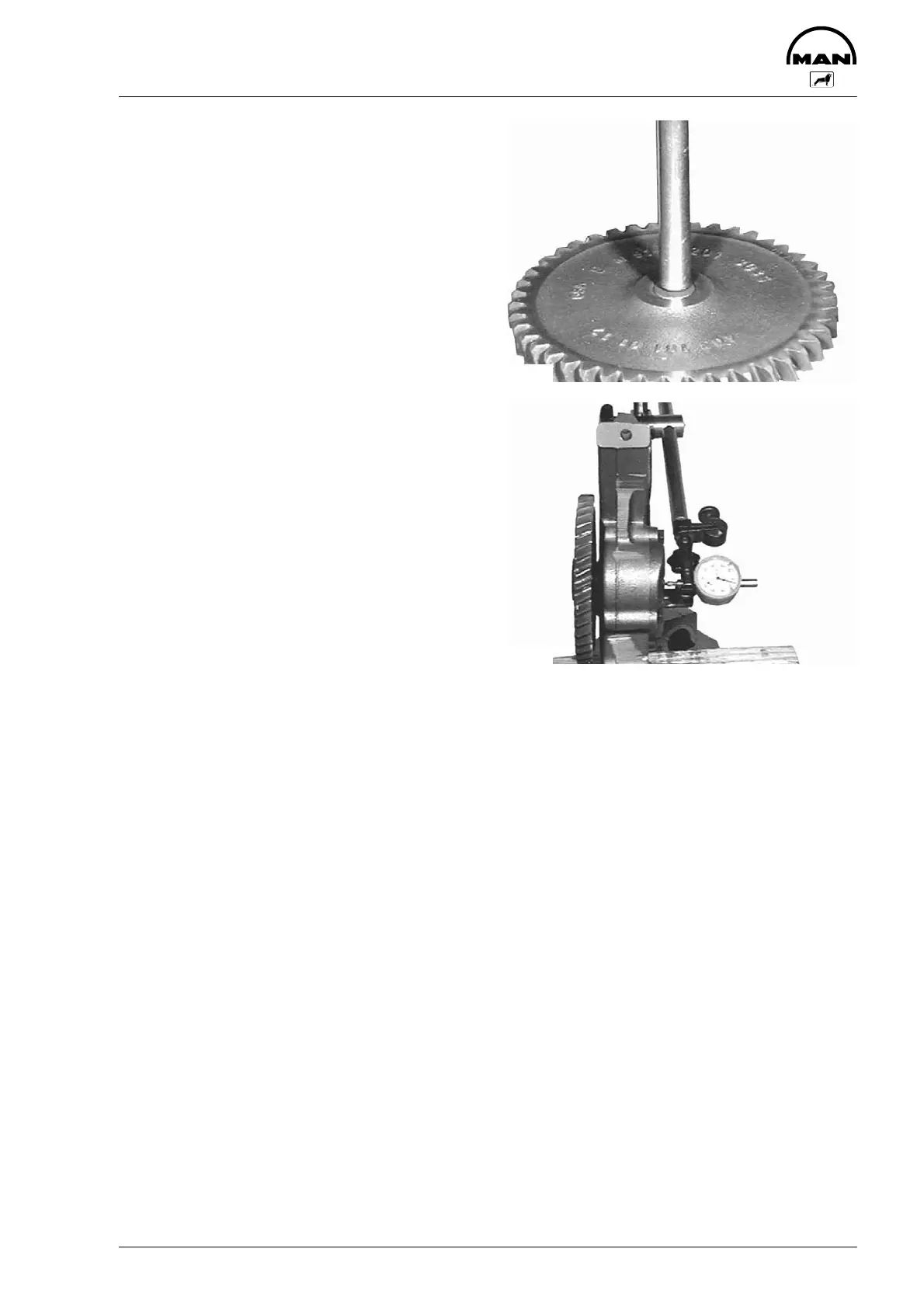

Fig. 8
Remove oil pump drive gear. To do this, lay pump
on suitable support and press off drive gear using
a mandrel.
Place drive gear on the shaft and press it into
place. Thereby support opposite shaft end. Pres-
sing force see ”Engineering S Data S Setting va-
lues”.
Checking axial play of the pump gears
Fig. 9
Position dial gauge and push shaft up to the stop
in one direction and set dial gauge to - 0 -. Push
shaft in opposite direction and read the movement
from the dial gauge.
3459
3582
