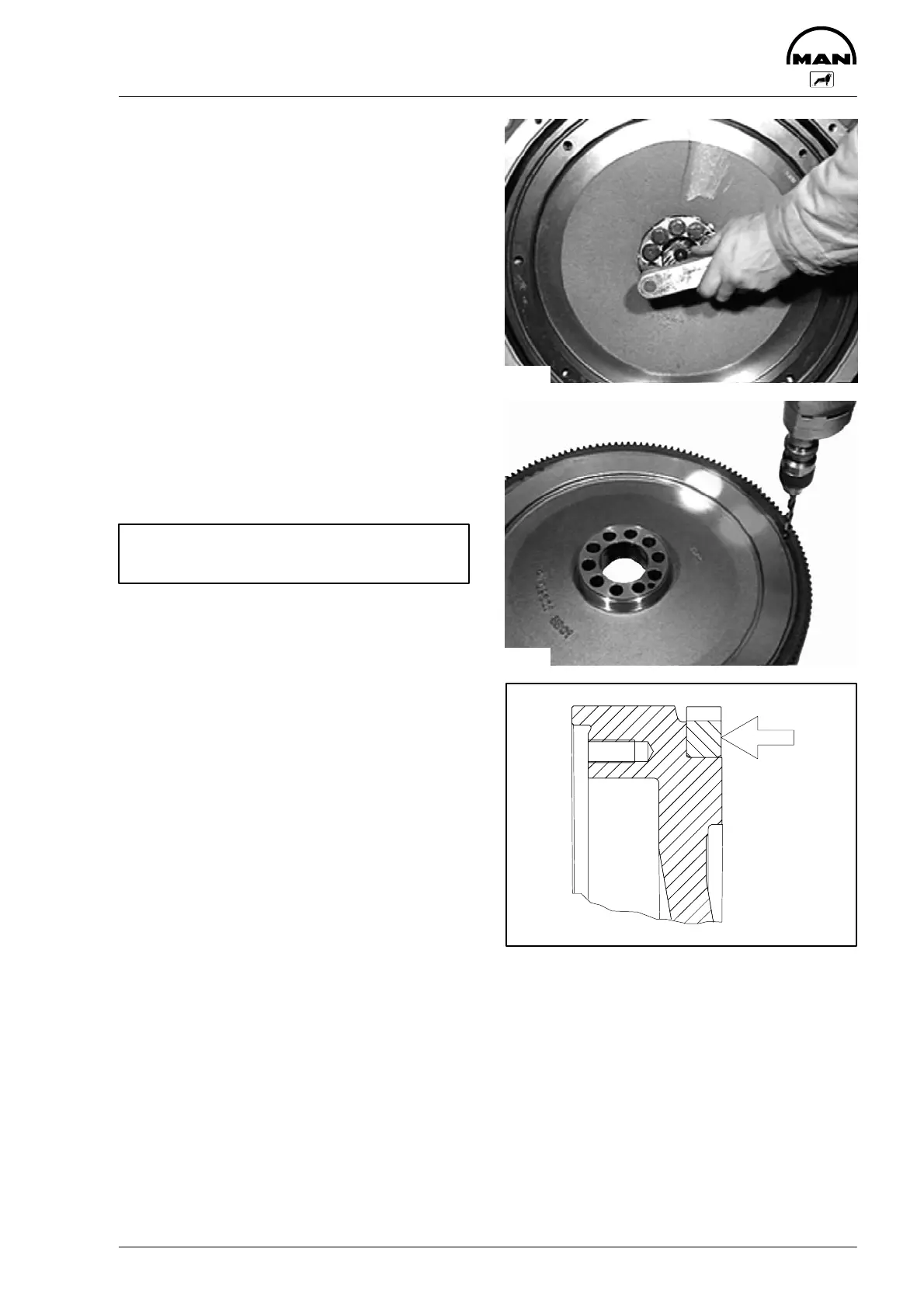

Removing and installing flywheel,
replacing gear ring
63
Fig. 5
Lightly oil new mounting bolts (elasticated bolts) ,
screw them in and tighten alternately on opposite
sides of the ring gear to specified torque
(see ”Engineering S Data S Setting values”).
Changing starter gear ring
Fig. 6
Remove flywheel.
Drill a hole in starter gear ring and snap it using a
chisel.
Caution:
Take care not to damage the flywheel.
Fig. 7
Heat new starter gear ring up to approx. 200_C to
230_C and press on until it stops.
Check axial runout and compare with max. permis-
sible value.
