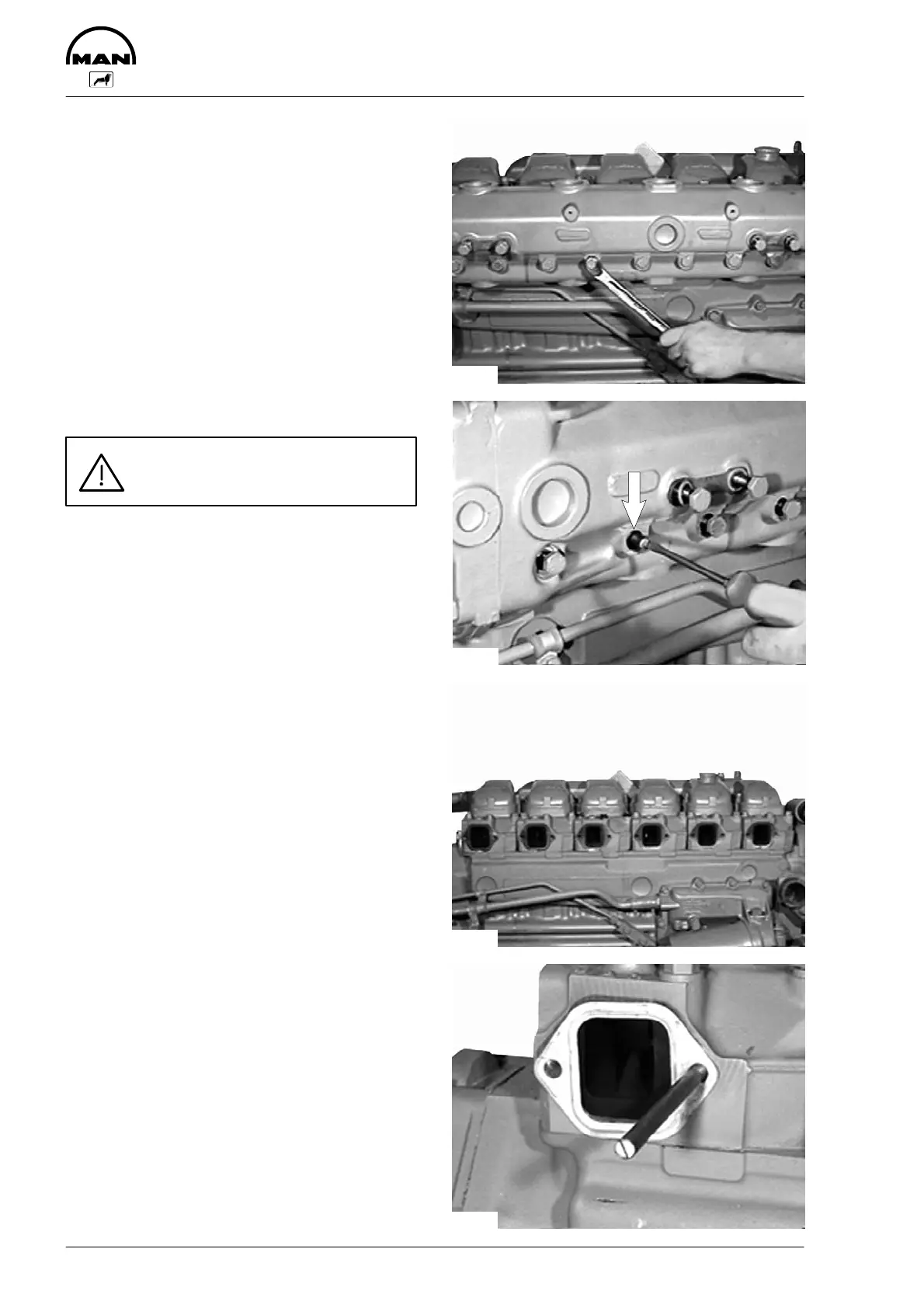

Removing and installing exhaust manifold
68
D Drain coolant, see page 37.
D Remove turbocharger, see page 73.
D Remove heat exchanger, see page 46.
Removing exhaust manifold
Fig. 1
Remove the mounting bolts from the exhaust pipe
(17 mm).
Fig. 2
Caution:
The exhaust pipe is heavy.
Before removing all mounting bolts, it is advisable
to replace two bolts with self–made threaded guide
pins (arrow) (10 mm).
Fig. 3
Take off the exhaust pipe.
Installing exhaust manifold
Fig. 4
Before fitting the exhaust pipe, screw in two guide
pins.
3494
3495
3496
3497
