3 - 16

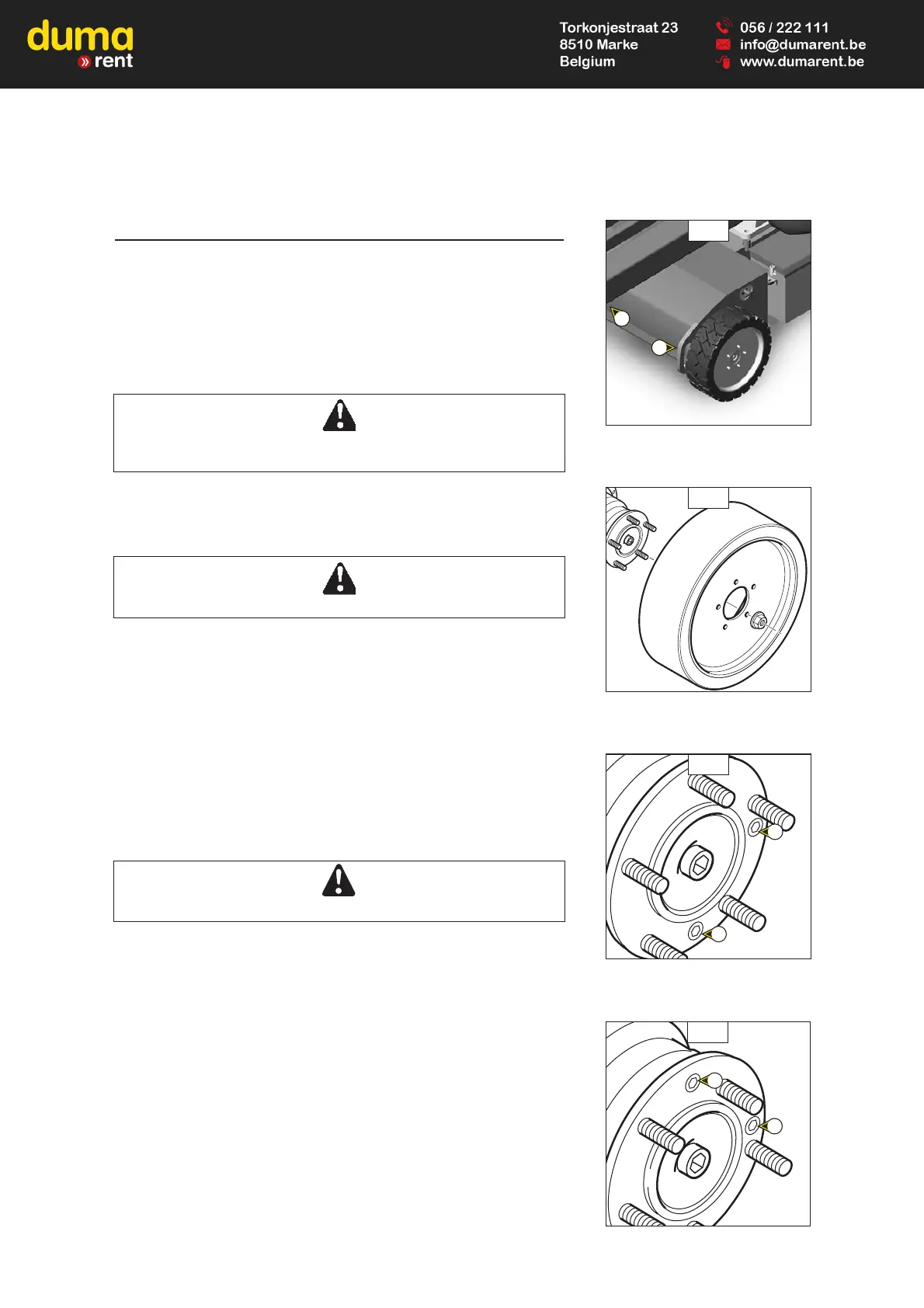

C3 - REAR WHEEL REDUCER OIL
EMPTY - REPLACE
- Place the access platform on an horizontal ground in transportation position
and the warm oil of the reducings.
- Raise the back of the platform (using the two sling eyeholes (Fig. C3/1)
or any other means of lifting).
Slide a wooden wedge between the chassis and the ground to ensure
operational safety.
- Remove the rear wheels (Fig. C3/2)
A wheel weighs from 40 Kg to 53 Kg.
- Place the cap of drainage 2 (Fig. C3/3) lower.
- Place a tray under the cap of drainage and unscrew it.
- Remove the cap 3 (Fig. C3/3) in order to facilitate the drainage.
- Let the oil to drain completely.
Dispose of the waste oil ecologically.
- Put the orifice 2 in the position like in the (Fig. C3/4).
- Fill up with oil (see chapter : LUBRICANTS) by the orifice 3 (Fig. C3/4).
- The level is good when the oil reaches the orifice 2 (Fig. C3/4).
- Replace and screw the caps 2 and 3 (Fig. C3/4).
- Remount the wheels (See B2 for the tightening torque).
C3/1
1
1
3
3
2
2
C3/2
C3/3
C3/4
