3 - 17

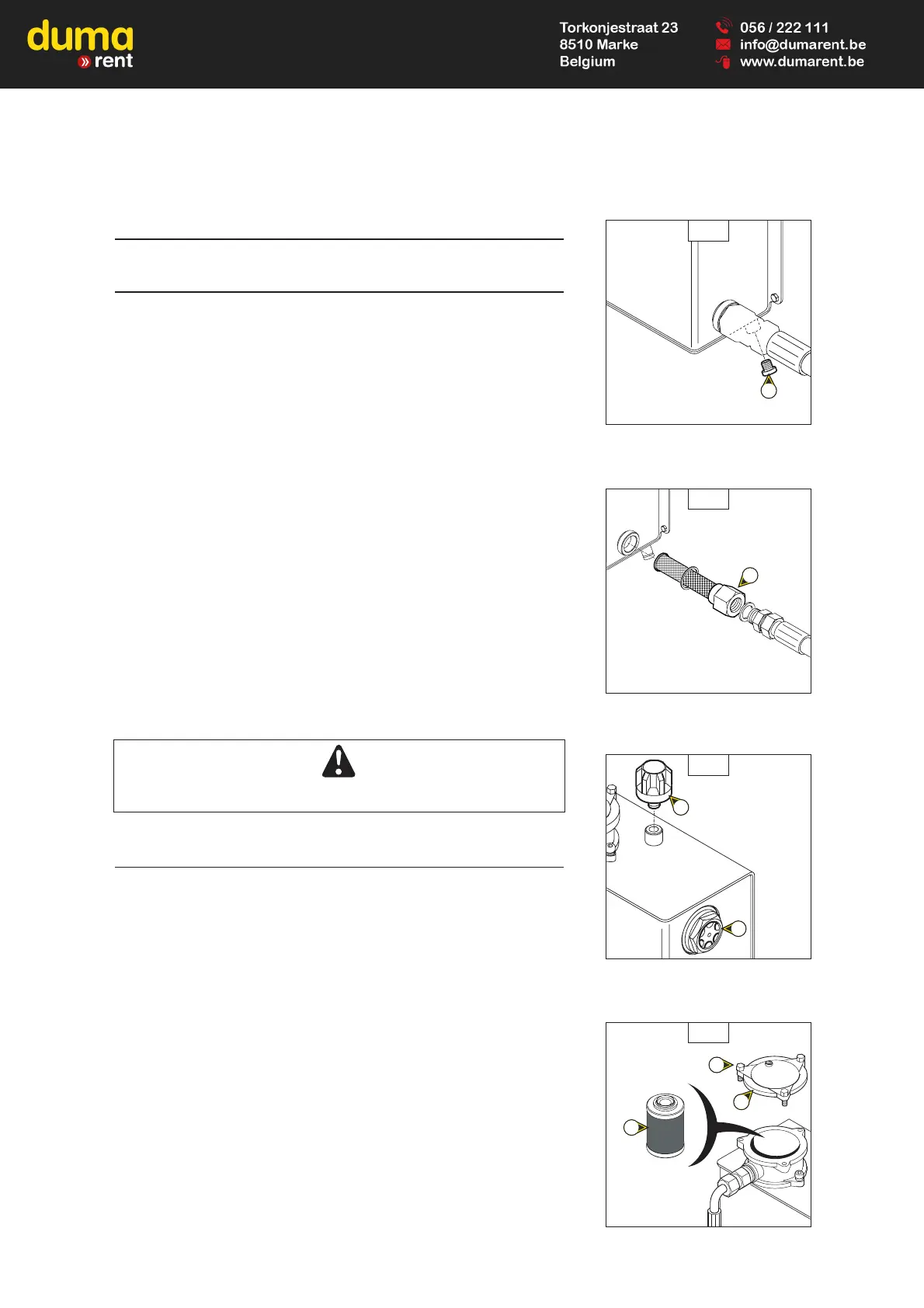

C4 - HYDRAULIC OIL
EMPTY - REPLACE
C5 - HYDRAULIC CIRCUIT STRAINER
CLEAN
- Place the access platform on an horizontal ground in transportation position.
- Open the left hand cowling.
DRAIN OF THE OIL
- Place a tray underneath the drain orifice 1 (Fig. C4/1) and unscrew this.
- Remove the fill cap 3 (Fig. C4/3) in order to facilitate the drainage process..
CLEANING THE STRAINER
- Unscrew the strainer 2 (Fig. C4/2) into the tray, clean its with a compresse
air.
- Screw the strainer into position.
FILLING WITH OIL
- Replace and screw the drain plug 1 (Fig. C4/1).
- Fill up with hydraulic oil via the fill orifice (see chapter “LUBRICANTS”) by the
fill orifice 3 (Fig. C4/3).
- The oil level should reach the middle level of the indicator 4 (Fig.C4/3)..
Dispose of the waste oil ecologically. Use a very clean funnel and tray and
clean the underside of the oil can before filling.
C6 - HYDRAULIC RETURN OIL FILTER CARTRIDGE
REPLACE
- Unscrew the three screws of fixing of the cover 5 (Fig. C4/4).
- Remove the filter cartridge 6 (Fig. C4/4) and replce its by a new one (see
chapter “FILTER ELEMENT”).
NB : Attention to the assembling sense.
- Rechuck the cover 7 (Fig. C4/4) of filter support.
- Tighten the three fastening screws on lid 5 (Fig. C4/4).
C4/2
C4/3
C4/4
4
1
2
7
3
6
5
C4/1
