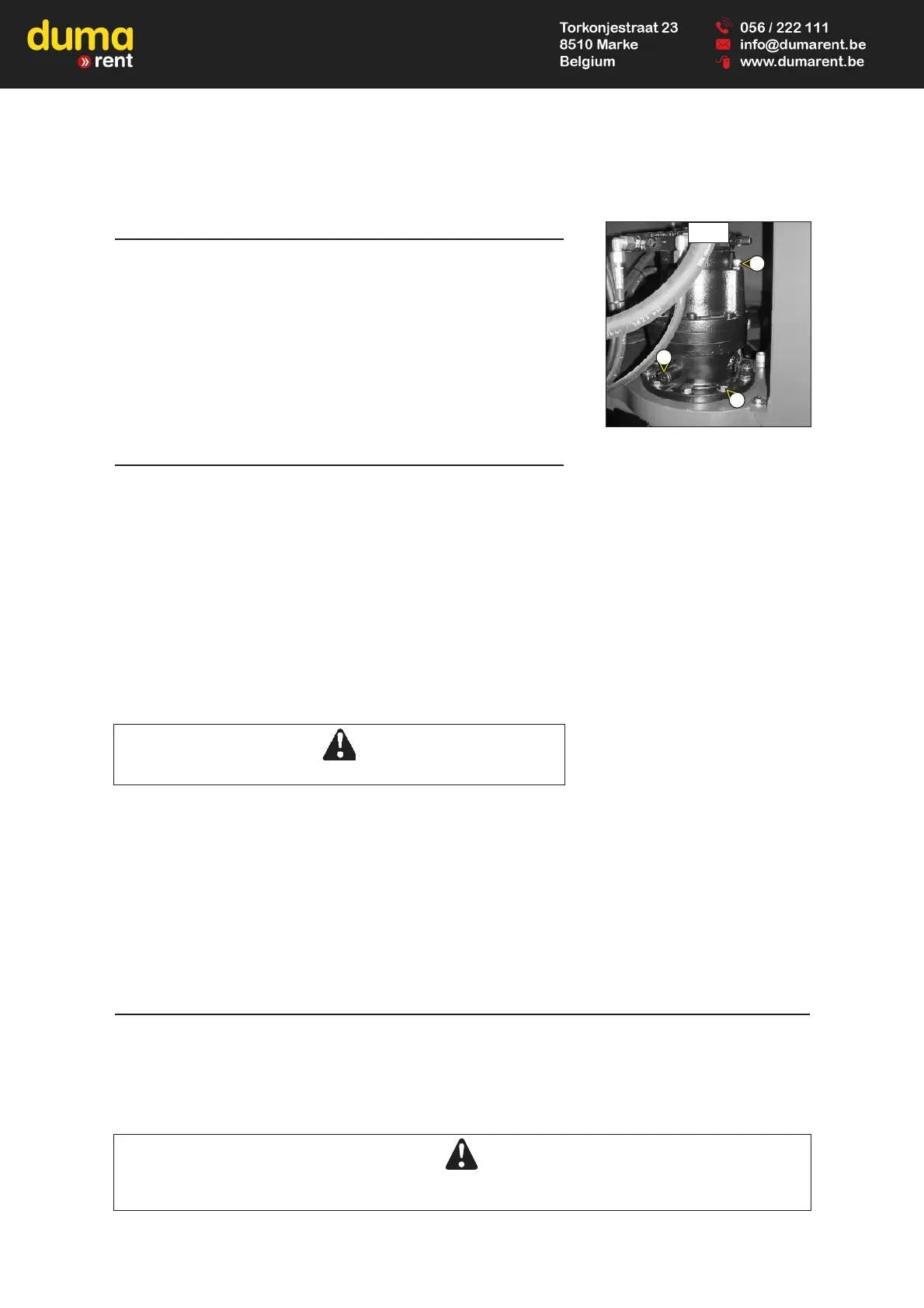

3 - 18
C7 - T
IGHTENING TURRET ROTATION MOTOR BOLTS
CHECK
Set the platform on a horizontal surface.
- Open the left hand cowling.
- Check the tightness of the nine bolts 1 (Fig. C7/1).
- The tightening torque for the bolts is 8 daN.m ± 10%.
- 1 daN = 1 Kg
C8 - TURRET MOTOR BRAKE REDUCER
EMPTY - REPLACE
Set the platform on a horizontal surface.
- Remove the turret's left cover.
- Remove the filling-breather cap 2 (Fig. C7/1) to ensure good drainage.
- Mark the drain plug 3 located on the bottom of the reducer unit
(Fig. C7/1).
- Place a small receptacle to catch the oil.
- Loosen the drain plug.
Dispose of the oil in an environmentally friendly manner
- Use a syringe to fill the reducer via the filling-breather cap 2 (Fig. C7/1). The
oil capacity is 1.3 litres and the level is correct when the breather is full of oil.
- Re-insert the filling-breather cap 2 (Fig. C7/1).
3
2
1
C7/1
C9 - OVERLOAD SENSOR
CHECK
For this operation, fold the arms into transport position.
- Place a heavier weight than that indicated in the basket (see : 2 - DESCRIPTION : SPECIFICATIONS).
- Telescope extension and arm raising movements must be blocked (the overload signal light is on in the basket, the
buzzer sounds constantly in the basket).
In the event of malfunction, prohibit use of the platform.
Consult your dealer.
