E2 - LIFTING PLATFORM 150 AETJC

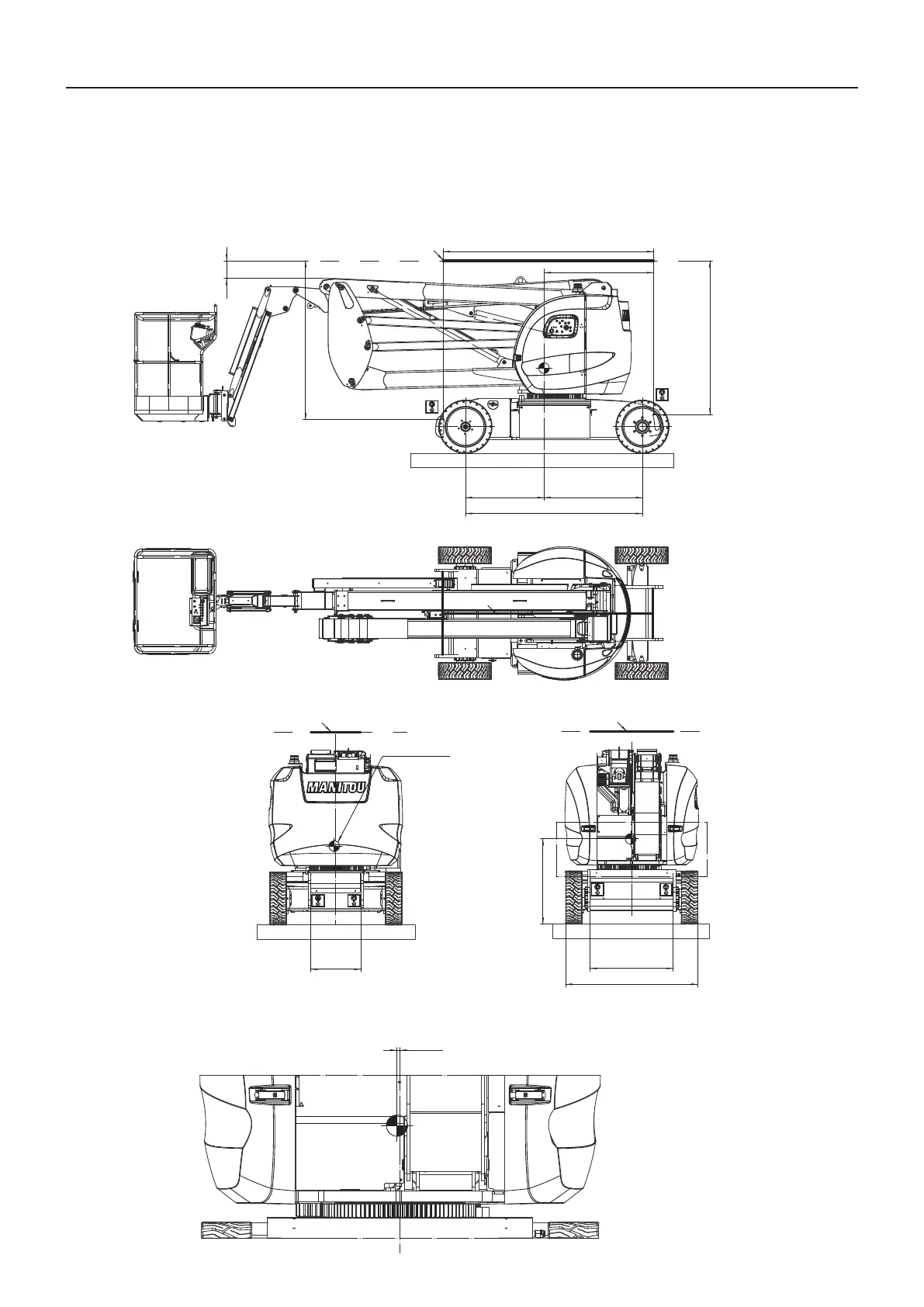

HOISTING WITH A SLING
- Note the position of the lifting platform’s centre of gravity for lifting it.
- Place hooks on the anchoring points provided for this purpose.
(1) Centre of gravity
(2) Strap length
(3) Axis line slinging rings
1238
(2) 1738
(2) 1796
2378
1112888
2000
200
1920Kg
1920Kg
1760Kg
1760Kg
Detail 1
1:10
12
(1) 6700Kg
=564=
See detail 1
963.5
=940=
1498
(3)
(3)
(3)
(3)
