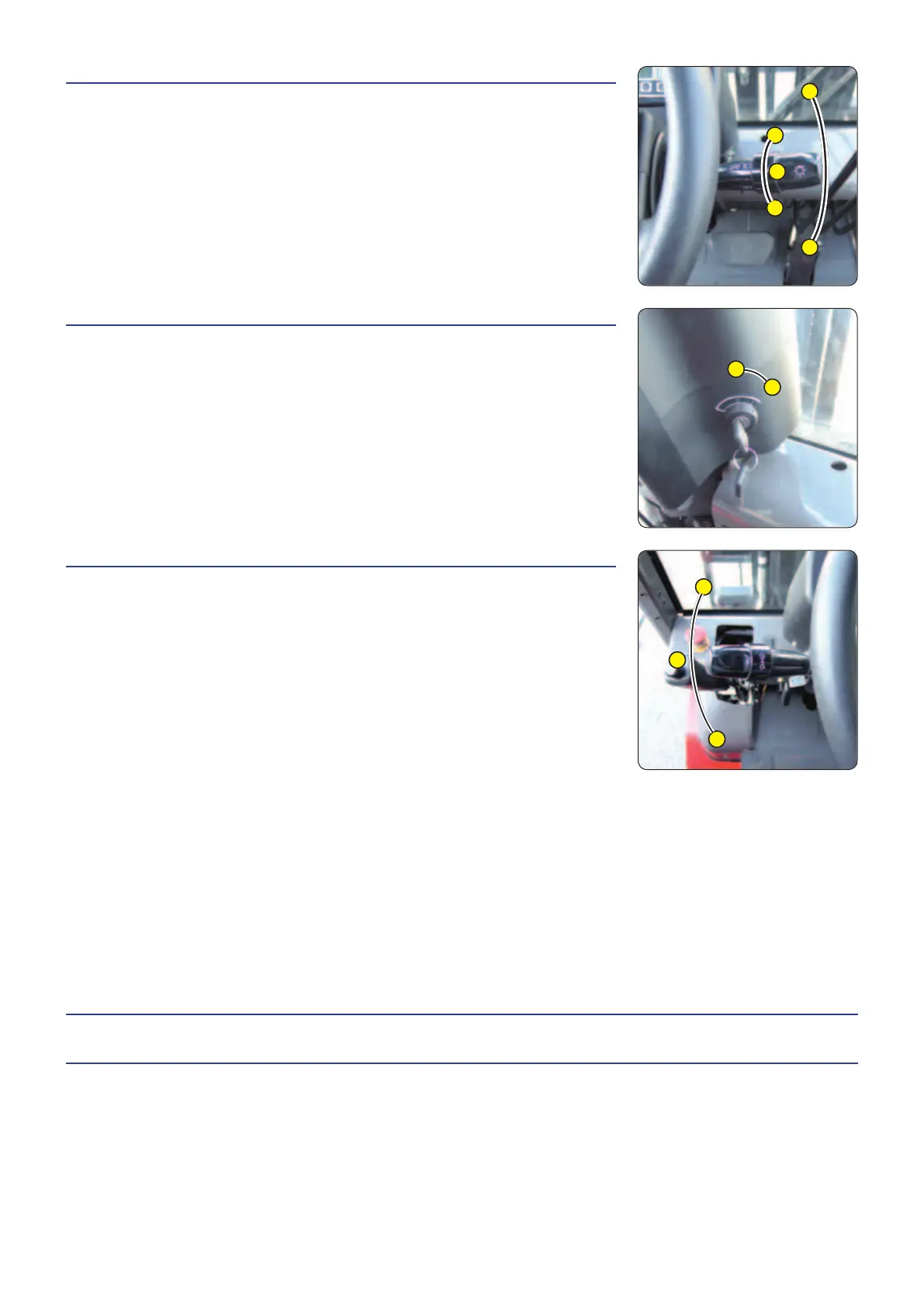

10 - IGNITION SWITCH
- This switch has 2 positions:
• O - Ignition off.
• I - Ignition on.
9 - LIGHT AND INDICATOR SWITCH
The switch controls the visual signals.
• A - The lights are off.
• B - The sidelights and the rear lights are on.
• C - The front working lights and rear lights are on.
• D - The right hand indicator light flash.
• E - The left hand indicator light flash.
11 - FORWARD/REVERSE SHUTTLE
When operating this control, the lift truck should be traveling at slow speed and not
accelerating.
• FORWARD: Push the lever forwards into position A.
• REVERSE: Pull the lever backwards into position B.
• NEUTRAL: To start the lift truck, the lever must be in the neutral position C.
NOTE: Reverse lights and a reversing sound alarm indicate that the lift truck is
traveling in reverse.
SAFETY FOR MOVING THE LIFT TRUCK
The operator must observe the following sequence to move the truck forwards or
backwards:
• 1 - sit down correctly in the driver’s seat,
• 2 - switch on the ignition,
• 3 - release the parking brake,
• 4 - engage forward or reverse movement.
To stop the forklift truck, the following sequence must be observed:
• 1 - set the forward/reverse selector to neutral,
• 2 - apply the parking brake,
• 3 - switch off the ignition,
• 4 - get out of the lift truck.
If these sequences are not followed you must then return the reversing gear to the neutral position and repeat the sequence.
