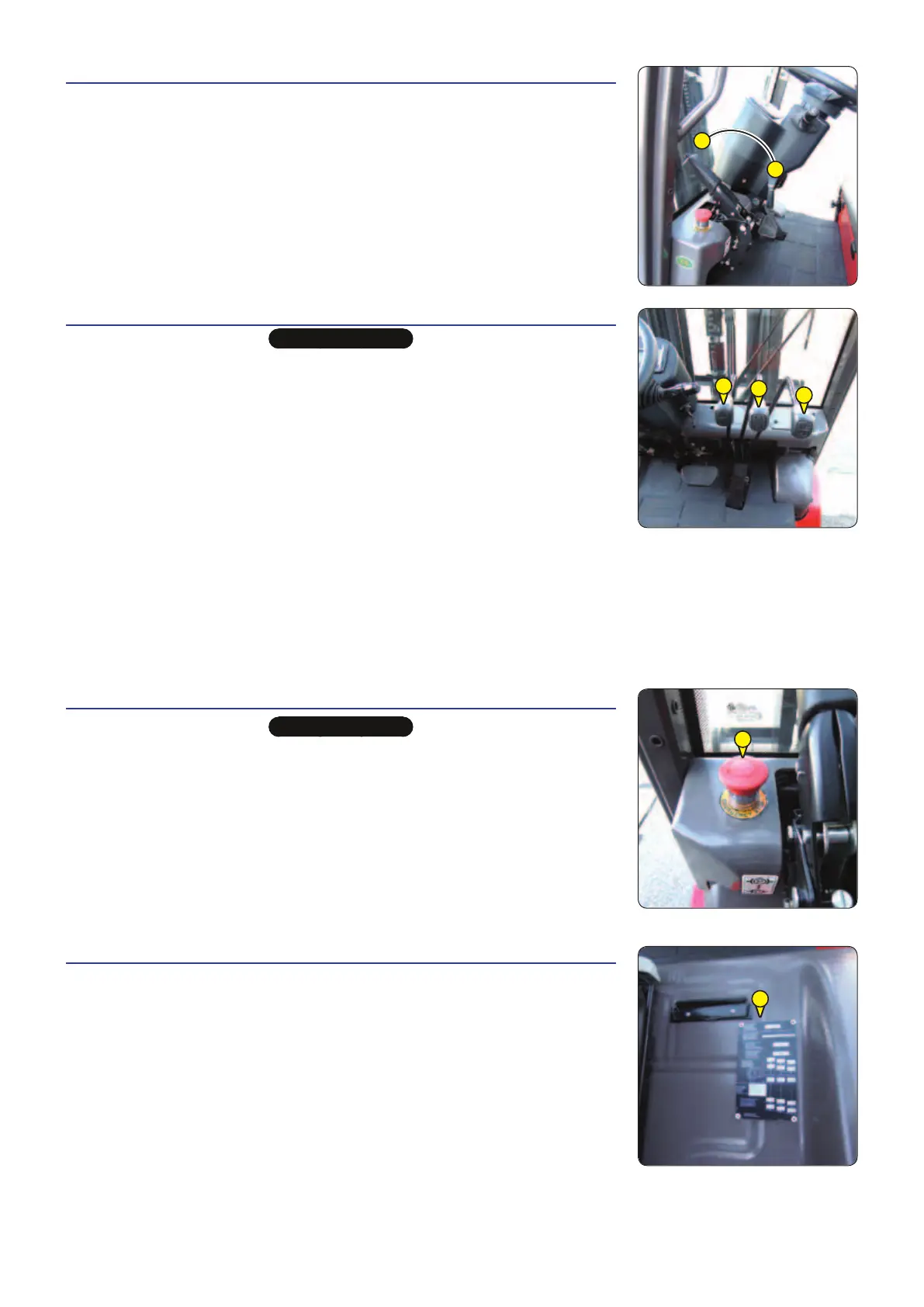

15 - HYDRAULIC CONTROLS
IMPORTANT
Do not attempt to alter the hydraulic system pressure by interfering with the pressure regulating valve. In the event of
suspected malfunction, contact your dealer. ANY ALTERATION MAY RENDER THE WARRANTY NULL AND VOID.
Use the hydraulic controls carefully without jerking, to avoid accidents caused by shaking the lift truck.
Using the hydraulic controls is only possible if the driver is present and correctly sat
on his seat.
LIFTING THE LOAD
• The lever A backwards when lifting.
• The lever A forwards when lowering.
TILTING THE MAST
• The lever B backward for backward tilting.
• The lever B forwards for forward tilting.
CARRIAGE SIDE-SHIFT
• The lever C backwards to move sideways to the right.
• The lever C forwards to move sideways to the left.
16 - EMERGENCY STOP BUTTON
IMPORTANT
Be ready for hydraulic movements suddenly stopping when you press this button.
In case of danger, switches off the electrical power supply circuit.
- Pull the button to disable it before restarting the lift truck.
14 - PARKING BRAKE
To apply the parking brake, depress the service brake pedal and pull the lever backwards
into position A.
To release the parking brake, push the lever forwards into position B.
NOTE: If the parking brake is released when the driver is not present, an intermittent
audible signal is sounded.
17 - LOAD CHART
Comply with the load chart limits for the lift truck for the attachment used.
2-28
A
C
B
B
A
647503 (10/05/2017)
E 418/420/425C 48V S3
