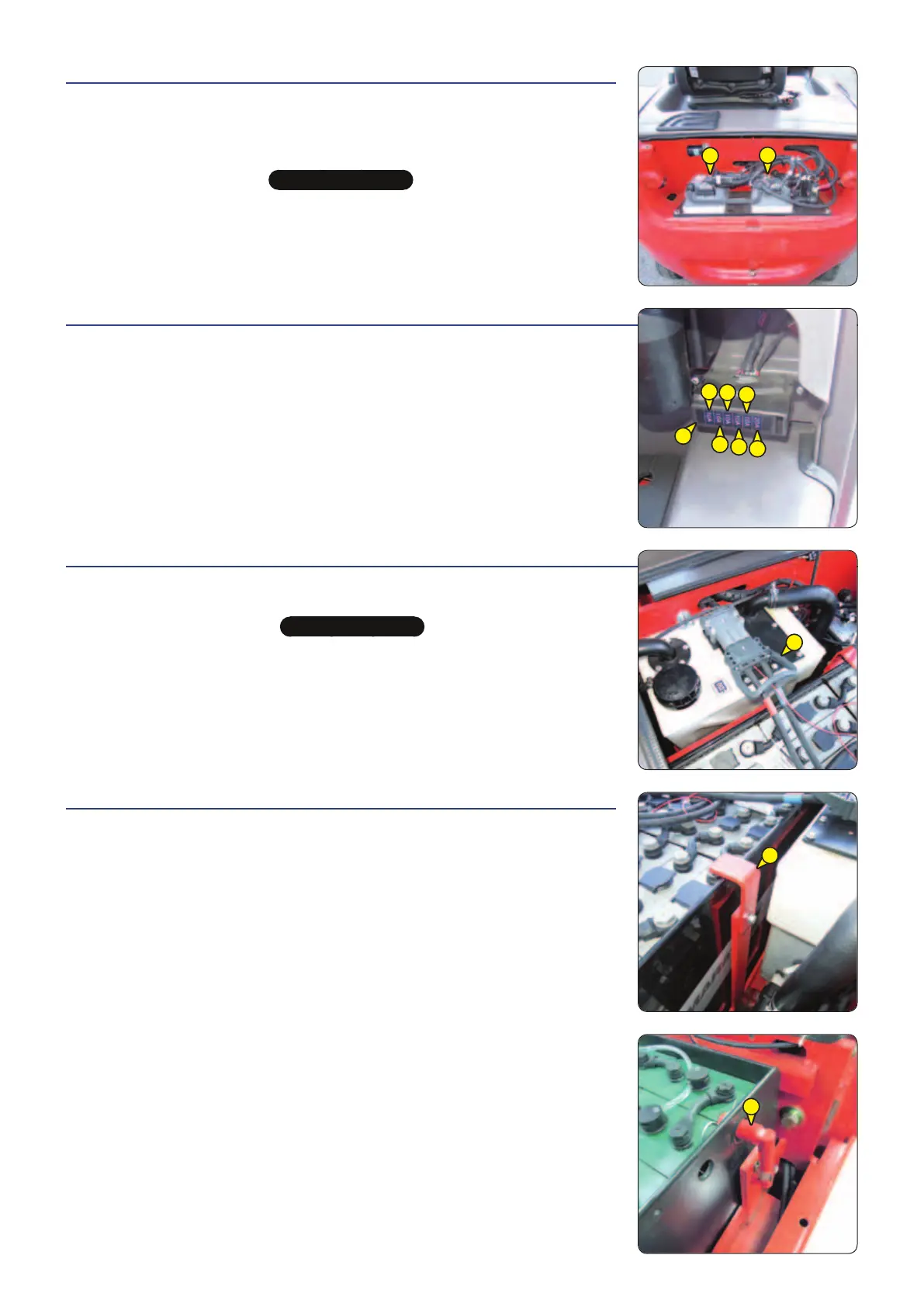

23 - BATTERY PLUG
Disconnects or connects the electrical circuit power supply.
- Raise the battery cover (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).
IMPORTANT
The lift truck's ignition must be switched off before connecting or disconnecting battery plug 1.
Disconnect the battery in the event of a fault or when working on the lift truck.
21 - POWER FUSES
• FP1 - Hydraulic control motor (250 A).
• FP2 - Rear wheel motor (250 A).
NOTE: Replace a used fuse with a new fuse of the same quality and capacity. Never
reuse a repaired fuse.
IMPORTANT
In case of technical faults, consult your dealer.
22 - FUSES
- Remove the casing (1) to access the fuses.
• F1 - Control circuit (10 A).
• F2 - Main circuit (10 A).
• F3 - Lighting (10 A).
• F4 - Option (10 A).
• F5 - Option (10 A).
• F6 - Option (20 A).
NOTE: Replace a used fuse with a new fuse of the same quality and capacity. Never
reuse a repaired fuse.
24 - LOCKING THE BATTERY TRAY
Depending on model
See: 3 - MAINTENANCE: F - OCCASIONAL MAINTENANCE.
2-30
1
F3
F1
F5
F2
F4
F6
FP1
FP2
647503 (10/05/2017)
E 418/420/425C 48V S3
