Manitou MRT 2150 Privilege Plus ST4 S2 Operator's Manual

648970 IT-EN-FR (18/02/2016)
3-70
IT
EN
FR

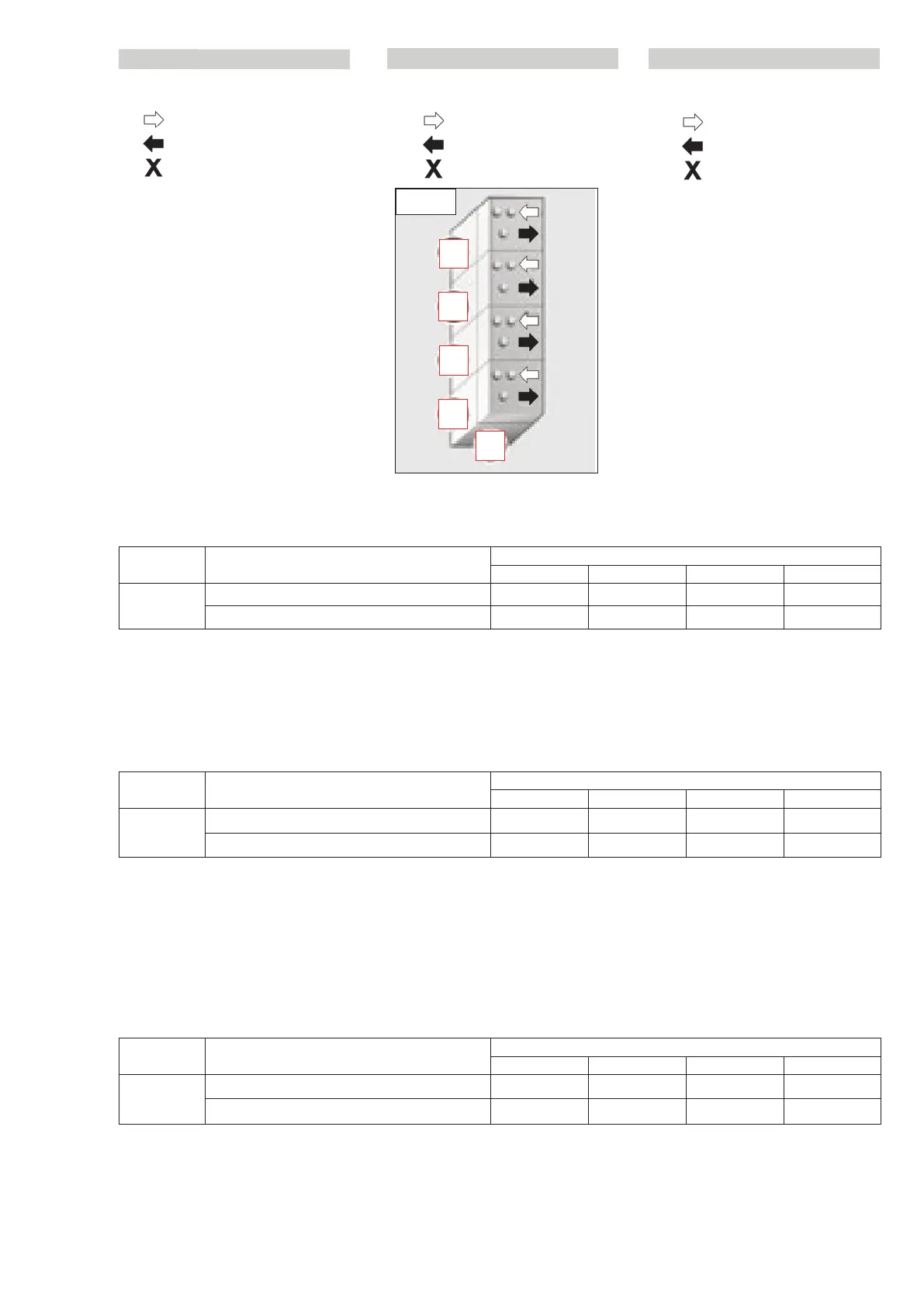

Layout of cylinders and valves (“1,2,3,4”
E13.1)
= inlet valve
= exhaust valve
= flywheel end
Checking and adjusting the valve
clearance
I – intake valve
E – exhaust valve
Adjust all valve clearances in 2 crankshaft
positions.
3
2
1
4
X
E13.1
Motore Posizione dell’albero motore
Cilindri/valvole da registrare
1 2 3 4
OM 934
Incrocio valvole cil. 4 E/A E A -
Incrocio valvole cil. 1 - A E E/A
Engine
Crankshaft position
Cylinder/valves to be adjusted
1 2 3 4
OM 934
4th cylinder valve overlap I/E I E -
1st cylinder valve overlap - E I I/E
Disposizione dei cilindri e delle valvole
(“1,2,3,4” E13.1):
= valvola di aspirazione
= valvola di scarico
= lato volano
Controllo/regolazione del gioco delle
valvole
E – valvola di aspirazione
A – valvola di scarico
Registrare tutte le valvole in 2 posizioni
dell’albero motore.
Disposition des cylindres et des soupapes
(“1,2,3,4” E13.1):
= Soupape d’admission
= soupape d’échappement
= côté volant moteur
Contrôle/réglage du jeu des soupapes
E - soupape d'aspiration
A - soupape de vidange
Régler toutes les soupapes dans 2 positions
du vilebrequin.
Moteur Position du vilebrequin
Cylindres/soupapes à régler
1 2 3 4
OM 934
Chevauchement soupapes cyl. 4 E/A E A -
Chevauchement soupapes cyl. 1 - A E E/A
